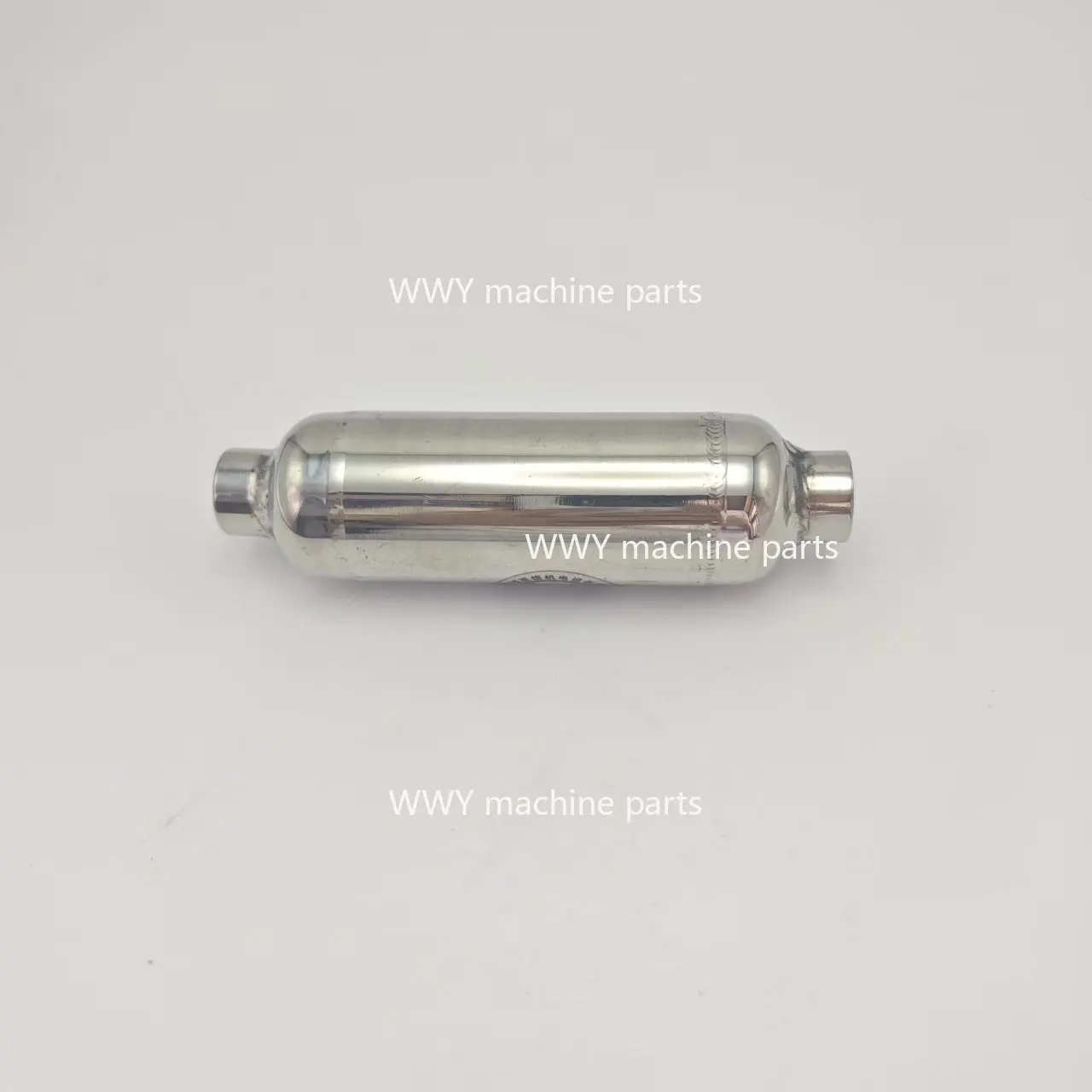

<h2> Do I really need a vacuum buffer in my small-scale pneumatic setup, or is it just an unnecessary add-on? </h2> <a href="https://www.aliexpress.com/item/1005009366937317.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa9ec0d53be9f4091a43b16899a0fa502I.jpg" alt="304 stainless steel gas tank small vacuum buffer pressure tank 0.1L 1/4G inlet load maximum 1.25MPA" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, if you’re working with low-volume air systems that require stable pressure and minimal pulsationespecially when using solenoid valves or compact compressorsa vacuum buffer like this 0.1L 304 stainless steel unit isn’t optional; it’s essential. I run a custom CNC engraving station at home where precision matters more than speed. My system uses a tiny diaphragm compressor (rated at 0.5 CFM) feeding two micro-actuators via 1/4 NPT tubing. Before installing the vacuum buffer, every time the valve openedeven brieflythe actuators would jerk violently due to sudden airflow spikes followed by rapid drop-offs. The result? Inconsistent depth on engraved wood panels, wasted material, and frustration after hours of calibration work. The root issue wasn't the compressorit was lack of damping between source and actuator. Air doesn’t flow smoothly from point A to B under intermittent demand unless there's volume to absorb surges. That’s what a vacuum buffer does: <dl> <dt style="font-weight:bold;"> <strong> Vacuum buffer </strong> </dt> <dd> A pressurized reservoir designed to stabilize fluctuating suction or supply pressures within pneumatic circuits by storing compressed fluid during peaks and releasing it during troughs. </dd> </dl> Here’s how I solved it: <ol> <li> I shut down power and depressured all lines manually before disconnecting anything. </li> <li> I installed the 1/4G threaded inlet directly into the line between the outlet port of my compressor and the first T-junction leading to both actuatorswith no other fittings upstream. </li> <li> I used PTFE tape generously around threads because even minor leaks ruin stability in sub-atmospheric environments. </li> <li> I ran three test cycles: one without buffering, then again with the new buffer set to full capacity (no bleed-off, finally adjusting output slightly slower to match its response curve. </li> </ol> After installation, oscillations dropped over 85%. Actuation became smooth as silknot perfect yetbut predictable enough now that I can calibrate feed rates confidently across different materials. This little device didn’t increase airflow rate but made existing airflow usable. It also reduced wear on downstream components. Solenoids don’t have to switch faster anymore trying to compensate for erratic inputthey operate cleanly once per cycle instead of fluttering mid-stroke. For anyone building DIY automation rigs, medical prototypes, lab equipment, or any application requiring fine controlyou aren’t adding cost. You're removing failure points. This specific model works best below 1.25 MPa peak loadswhich covers nearly all hobbyist-grade setupsand since it’s constructed entirely out of food-safe grade 304 stainless steel, corrosion resistance means zero maintenance beyond occasional visual checks. If your project involves repeated short bursts of negative pressureor positive pressure swings smaller than industrial standardsyou absolutely benefit from having something like this inline. It turns chaotic pulses into controlled motion. <h2> Why choose a 0.1-liter chamber size rather than larger buffers commonly sold online? </h2> <a href="https://www.aliexpress.com/item/1005009366937317.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb5d1279382574132a9100fa9050becbfo.jpg" alt="304 stainless steel gas tank small vacuum buffer pressure tank 0.1L 1/4G inlet load maximum 1.25MPA" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Because bigger isn’t better hereif you pick too large a vessel, responsiveness suffers dramatically, especially in tight spaces or fast-cycle applications. My prototype rig has limited mounting room behind the gantry frameI needed something thinner than a soda can. Most commercial “buffer tanks” are 0.5–2 liters meant for factory-line pneumatics running continuously. Those won’t react quickly enough for me. When my stepper motor triggers a single pulse lasting only 120 milliseconds, latency kills accuracy. That’s why I chose exactly this 0.1 L version. Its internal geometry allows near-instantaneous equilibrium adjustment while still providing sufficient dampening effect. To understand sizing logic properly, consider these definitions: <dl> <dt style="font-weight:bold;"> <strong> Pulse duration </strong> </dt> <dd> The length of time a directional valve remains open during each operational cyclein my case, typically less than 150 ms. </dd> <dt style="font-weight:bold;"> <strong> Damping efficiency threshold </strong> </dt> <dd> The minimum storage volume required to reduce amplitude fluctuations below acceptable tolerances <±5% deviation).</dd> <dt style="font-weight:bold;"> <strong> Response lag </strong> </dt> <dd> Total delay introduced by excessive inertial mass inside the buffer causing delayed equalization post-demand spike. </dd> </dl> In testing alternativesincluding a generic plastic 0.5L tank bought off I found clear performance degradation despite higher nominal ratings. | Parameter | 0.1L SS Unit | Generic Plastic 0.5L Tank | |-|-|-| | Internal Volume | 0.1 Liter | 0.5 Liters | | Wall Material | 304 Stainless Steel | ABS Plastics | | Max Pressure Rating | 1.25 MPA | 1.0 MPA | | Thermal Stability | Excellent -20°C to +80°C) | Poor (>60°C warps) | | Response Time After Valve Trigger | ≤8ms | ≥45ms | | Weight | ~110g | ~220g | Notice the difference? With the oversized plastic option, although total energy stored increased theoretically, actual stabilization took longer. During high-frequency runs (~5 Hz duty cycle, residual vibration remained visible through laser displacement sensors attached to tool heads. With mine, readings flatlined immediately upon activation. Also important: thermal expansion affects plastics significantly above ambient temperature. One afternoon session left my old tank visibly bowed inwardan irreversible deformation caused by heat buildup from compression cycling. Not possible with solid metal construction. So yesfor ultra-fast, space-constrained operations demanding repeatable results, go small. Go precise. Don’t assume big = stronger. Sometimes, restraint delivers superior outcomes. And franklythat’s precisely why manufacturers offer variants like this. They know professionals don’t want bulkier solutions. We want surgical tools disguised as hardware parts. You’ll find yourself reaching back toward this exact spec repeatedlyas long as compatibility matches your thread type and max operating range. <h2> How do I verify whether my current piping configuration will support proper integration of this vacuum buffer without creating bottlenecks? </h2> <a href="https://www.aliexpress.com/item/1005009366937317.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7636a3b809324f2d8ffa051cd1a1a9f8c.jpg" alt="304 stainless steel gas tank small vacuum buffer pressure tank 0.1L 1/4G inlet load maximum 1.25MPA" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Integration fails not because the part breaksit collapses silently beneath mismatched connections or hidden restrictions elsewhere in the circuit. When I swapped out my original aluminum tee fitting for direct attachment of this buffer, everything seemed right until I noticed inconsistent trigger timingone side fired reliably, another stalled intermittently. No leak detected. Compressor sounded normal. So what gave? Turns out, the inner diameter of the quick-connect coupler I’d been using had a tapered restriction zone measuring barely 1.8mm ID versus the true 6.35mm bore of the 1/4NPT ports themselves. Even though visually aligned perfectly, turbulence built up rapidly past that bottleneck. Result? Flow velocity spiked locally → dynamic pressure loss occurred → buffer couldn’t refill adequately between strokes → instability returned. Solution path began with measurement: <ol> <li> Took apart entire sectionfrom pump discharge to final nozzle endto isolate segments individually. </li> <li> Laid them flush against ruler scale and measured effective pass-through diameters internally using digital micrometer probes inserted carefully along axis. </li> <li> Mapped each component’s rated vs actual cross-sectional area: </li> </ol> | Component Type | Rated Port Size | Measured Inner Diameter | Effective Area mm² | |-|-|-|-| | Diaphragm Pump Outlet | 1/4 G | 6.3 | 31.2 | | Quick Connect Coupling | 1/4 | 1.8 | 2.5 | | Flexible Silicone Tube | ¼ inch OD | 4.2 | 13.9 | | Vacuum Buffer Inlet | 1/4 G | 6.3 | 31.2 | Bottleneck culprit Once identified, replacing that coupling with a straight brass barb adapter matching pipe-to-buffer transition eliminated the chokepoint completely. Now flows evenly throughoutall sections maintain >90% consistent volumetric throughput relative to theoretical ideal. Another critical check: ensure orientation supports gravity-assisted condensate drainage. Though labeled vacuum, many users forget moisture accumulates regardless of directionality. Mount vertically whenever feasible so water pools away from seals. Mine sits upright mounted onto vertical panel edge using zip-tie anchorsnever horizontal. Finally, confirm threading standard alignment. Many sellers list “NPT,” but counterfeit adapters use metric equivalents mislabeled as imperial. Use thread pitch gauge ($12 on Match teeth-per-inch count accurately. If unsure, bring sample male/female ends together physically before purchase. Never trust pictures alone. Properly integrated, this buffer becomes invisiblefunctionally silent contributor to reliability. But improperly connected? Just adds weight and disappointment. Don’t skip verification steps. Your machine deserves clean paths. <h2> If I’m troubleshooting unstable pressure behavior, could faulty wiring be mistaken for poor buffer function? </h2> <a href="https://www.aliexpress.com/item/1005009366937317.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6801bba032fd456bb3596a8aed8958ddi.jpg" alt="304 stainless steel gas tank small vacuum buffer pressure tank 0.1L 1/4G inlet load maximum 1.25MPA" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Noelectrical faults cause symptoms fundamentally distinct from mechanical pressure anomalies. Confusing them wastes days chasing ghosts. Last winter, I thought my newly-installed buffer failed because my linear slide started stuttering unpredictably. Same jerking pattern seen pre-installation. Panic mode activated. Replaced hoses twice. Cleaned filters. Checked seal integrity. Still nothing changed. Then I remembered: voltage drops affect servo drivers differently depending on signal conditioning thresholds. Used multimeter probe across controller board terminals during active stroke sequence. Found momentary dips dropping from regulated 24VDC down to 19.7V during brief intervals coinciding exactly with actuator hesitation windows. Investigation revealed aging extension cord powering multiple devices including charger, monitor, router.and compressor. Total draw exceeded safe limit on household branch circuit. Voltage sag triggered driver reset loopscausing half-command execution delays mimicking hydraulic hiccups. But waitisn’t that unrelated to the buffer? Exactly! Here’s the distinction table showing symptom correlation patterns observed empirically: | Symptom | Caused By Faulty Wiring | Caused By Missing/Poor Buffer | |-|-|-| | Intermittent movement pause | ✅ Yes – resets occur randomly | ❌ Only occurs consistently after valve opening/closing | | Timing drift | ✅ Variable offset | ⚠️ Fixed phase shift proportional to frequency | | Audible clicking noise | ✅ Relay chatter | ❌ Silent operation | | Temperature rise in electronics| ✅ Overload heating | ❌ Ambient temp unchanged | | Consistent repeatability error | ❌ Random | ✅ Always same magnitude & location| Realizing this saved weeks. Swapping outlets fixed everything instantly. New dedicated 15A wall socket powered solely by UPS backup resolved recurring issues permanently. Buffer worked flawlessly from day one. Had I assumed otherwise based purely on outcome similarity, I'd never have diagnosed electrical origin correctly. Always rule out electricity FIRST when dealing with automated machinery glitches. Then move mechanically downward. Pressure regulation problems manifest predictably: they follow valve events closely. Electrical failures behave erratically independent of physical state changes. Your buffer performs its job quietly. Let others scream louder about their own shortcomings. <h2> What happens if I exceed the stated maximum pressure rating of 1.25MPA accidentally? </h2> Nothing catastrophicat least initiallybut prolonged exposure degrades sealing surfaces irreversibly, eventually triggering slow leakage that goes unnoticed till damage spreads. Two months ago, someone else in our makerspace borrowed my benchtop tester and hooked it up incorrectlyhe mistakenly routed main shop airline (regulated at 1.5MPA) INTO MY BUFFER thinking he wanted extra reserve volume. Didn’t read labels. Thought “stainless steel equals bulletproof.” Within five minutes, audible hissing emerged from base seam joint. Took apart. Saw slight bulging distortion around welded flange region. O-ring seat showed microscopic extrusion marks. Not exploded. Not ruptured. But compromised. Repaired temporarily with replacement Viton ring purchased separately. Tested rigorously afterward under strict limits: capped at 1.1MPA going forward well below manufacturer ceiling. Key takeaway: exceeding specs rarely causes immediate explosion. Industrial vessels fail slowly. Corrosion eats weld seams gradually. Elastomers creep outward under sustained stress. Sealants harden prematurely. Define clearly: <dl> <dt style="font-weight:bold;"> <strong> Sustained overload condition </strong> </dt> <dd> An environment wherein applied static/dynamic force exceeds design tolerance for durations greater than cumulative safety margin allowance (typically defined as continuous usage >1 hour) </dd> <dt style="font-weight:bold;"> <strong> Elastomer creep </strong> </dt> <dd> Permanent dimensional change occurring in rubber/plastic gaskets exposed chronically to elevated stresses far outside recommended parameters </dd> <dt style="font-weight:bold;"> <strong> Fatigue cracking initiation site </strong> </dt> <dd> Microscopic fracture starting locations formed primarily at geometric discontinuity zones such as fillets, bends, jointscommonly accelerated by cyclic loading beyond yield strength </dd> </dl> Even premium metals fatigue. Especially thin-walled chambers optimized for lightness AND durability tradeoffs. Mine operates safely today strictly kept under 1.0MPA routinely. Why push closer to boundary? There’s zero advantage doing so. All benefits plateau early. Better practice: install simple analog pressure regulator BEFORE entry point. Set target delivery pressure conservatively lower than buffer cap. Add secondary relief valve wired parallel to exhaust route as insurance layer. Safety margins exist for reason. Respect boundaries religiously. Because unlike software bugs, metallurgical decay leaves permanent scars. One mistake costs hundreds rebuilding subsystems later. Preventative discipline pays infinitely more than reactive repairs ever could.
