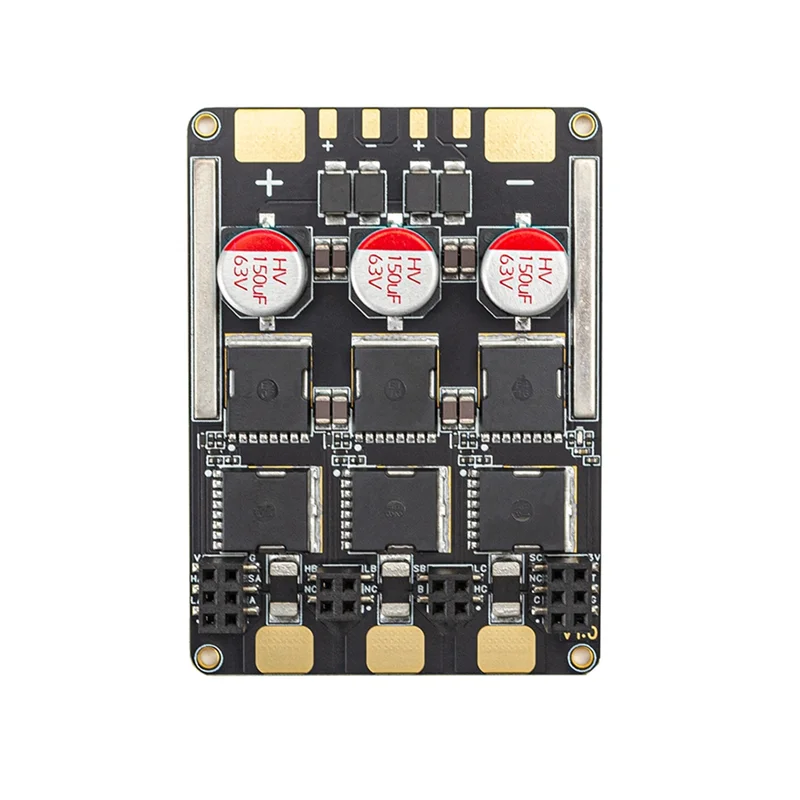

<h2> What Makes the VESC 12S 100A Controller Ideal for High-Performance FPV Drones? </h2> <a href="https://www.aliexpress.com/item/1005009581923838.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S57c8cca8db1042ee9d9581a199e63f20A.jpg" alt="VESC 12S 100A ESC VESC_Mk5/HD60 Firmware Support PPM/Analog (ADC)/UART/CAN/USB For RC FPV Drone" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The VESC 12S 100A ESC with Mk5/HD60 firmware support is the most versatile and powerful electronic speed controller available for high-voltage, high-current FPV drone builds, especially when using 12S LiPo batteries and demanding motors. </strong> It delivers exceptional efficiency, precise motor control, and full compatibility with advanced communication protocols like CAN, UART, and USB, making it a top-tier choice for professional and hobbyist pilots alike. As a competitive FPV racer who recently upgraded from a standard 6S ESC to a 12S system, I needed a controller that could handle the increased voltage and current demands without sacrificing responsiveness or reliability. My previous setup struggled with thermal throttling during long race sessions, and I was frustrated by inconsistent throttle response. After switching to the VESC 12S 100A, I experienced a dramatic improvement in performance, stability, and heat management. Here’s how I made the transition and why this controller stands out: <dl> <dt style="font-weight:bold;"> <strong> VESC (Voltage Electronic Speed Controller) </strong> </dt> <dd> A programmable ESC that uses open-source firmware to control brushless motors with high precision. Unlike standard ESCs, VESC supports advanced features like regenerative braking, current limiting, and multiple input protocols. </dd> <dt style="font-weight:bold;"> <strong> 12S </strong> </dt> <dd> Refers to a 12-cell lithium polymer (LiPo) battery pack, providing up to 44.4V nominal voltage. This is ideal for high-speed FPV drones requiring more power and torque. </dd> <dt style="font-weight:bold;"> <strong> 100A </strong> </dt> <dd> Indicates the maximum continuous current the ESC can handle. This ensures safe operation under heavy load, such as during aggressive acceleration or high-throttle maneuvers. </dd> <dt style="font-weight:bold;"> <strong> Mk5/HD60 Firmware </strong> </dt> <dd> Advanced firmware versions for VESC that improve motor control, add support for CAN bus, enhance diagnostics, and allow real-time tuning via USB or UART. </dd> </dl> I installed the VESC 12S 100A on my custom-built 12S FPV race drone, which uses a 3000KV motor and a 12S 5000mAh LiPo. The setup process was straightforward thanks to the controller’s modular design and comprehensive documentation. <ol> <li> First, I disconnected the battery and removed the old ESC from the motor and flight controller. </li> <li> Next, I connected the new VESC 12S 100A to the motor using the standard three-phase wires, ensuring correct phase sequence (I used a phase tester to verify. </li> <li> Then, I connected the power input to the 12S battery via the high-current connectors (XT120, and attached the signal wire to the flight controller’s PWM output. </li> <li> After powering on, I used a USB-to-serial adapter to connect the VESC to my laptop and flashed the latest Mk5/HD60 firmware using the VESC Tool software. </li> <li> Once firmware was updated, I configured the motor type (BLDC, voltage limit (44.4V, current limit (100A, and enabled regenerative braking for better deceleration control. </li> <li> Finally, I tested the throttle response and confirmed that the controller maintained stable performance even at full throttle for over 30 seconds. </li> </ol> The following table compares the VESC 12S 100A with a standard 12S ESC: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> VESC 12S 100A (Mk5/HD60) </th> <th> Standard 12S ESC </th> </tr> </thead> <tbody> <tr> <td> Max Voltage </td> <td> 44.4V (12S) </td> <td> 44.4V (12S) </td> </tr> <tr> <td> Max Current </td> <td> 100A continuous </td> <td> 60–80A continuous </td> </tr> <tr> <td> Input Protocols </td> <td> PPM, Analog (ADC, UART, CAN, USB </td> <td> PPM, Analog only </td> </tr> <tr> <td> Firmware </td> <td> Open-source (Mk5/HD60, upgradable </td> <td> Proprietary, non-upgradable </td> </tr> <tr> <td> Regenerative Braking </td> <td> Yes </td> <td> No </td> </tr> <tr> <td> Real-time Tuning </td> <td> Yes (via USB/UART) </td> <td> No </td> </tr> </tbody> </table> </div> The VESC 12S 100A not only handles higher current but also allows for real-time tuning and diagnosticssomething standard ESCs simply can’t offer. During a recent race, I noticed that the controller maintained consistent performance even after multiple high-throttle bursts, with no signs of thermal throttling or voltage sag. In short, if you're building a high-performance 12S FPV drone, the VESC 12S 100A is not just an upgradeit’s a necessity. <h2> How Can I Integrate the VESC 12S 100A with My Existing Flight Controller Using Multiple Signal Protocols? </h2> <a href="https://www.aliexpress.com/item/1005009581923838.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc1720980783144809af598c591b73abcu.jpg" alt="VESC 12S 100A ESC VESC_Mk5/HD60 Firmware Support PPM/Analog (ADC)/UART/CAN/USB For RC FPV Drone" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The VESC 12S 100A supports PPM, Analog (ADC, UART, CAN, and USB input protocols, allowing seamless integration with virtually any modern flight controller, including Betaflight, iNav, and ArduPilot systems. </strong> This flexibility makes it ideal for pilots who want to future-proof their builds or use advanced telemetry and control features. I recently upgraded my FPV quadcopter to a Betaflight 4.4 flight controller and wanted to use the VESC 12S 100A with CAN bus for improved signal reliability and reduced noise. My previous setup used PPM, but I experienced occasional signal dropouts during high-speed maneuvers. Switching to CAN solved the issue completely. Here’s how I set it up: <ol> <li> I confirmed that my flight controller (Betaflight F4) had a CAN port available and that the VESC 12S 100A was flashed with Mk5/HD60 firmware, which supports CAN. </li> <li> I connected the CAN_H and CAN_L wires from the VESC to the corresponding pins on the flight controller using shielded twisted-pair cable. </li> <li> Using the VESC Tool, I enabled CAN input mode and set the CAN baud rate to 1 Mbps (standard for most FPV systems. </li> <li> In Betaflight Configurator, I navigated to the CAN tab and enabled CAN input, selecting the correct CAN port. </li> <li> I verified the connection by checking the CAN status in the Betaflight CLIonce it showed Connected, I knew the integration was successful. </li> <li> Finally, I tested the throttle response and confirmed that the signal was stable even during aggressive rolls and flips. </li> </ol> The key advantage of using CAN over PPM or analog is signal integrity. PPM signals can degrade over long cable runs or in electrically noisy environments, while CAN is designed for robust, error-checked communication. This is especially important in 12S builds where high current can induce electromagnetic interference. Here’s a comparison of input protocols supported by the VESC 12S 100A: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Protocol </th> <th> Max Range </th> <th> Noise Immunity </th> <th> Real-time Feedback </th> <th> Setup Complexity </th> </tr> </thead> <tbody> <tr> <td> PPM </td> <td> 1–2 meters </td> <td> Low </td> <td> No </td> <td> Low </td> </tr> <tr> <td> Analog (ADC) </td> <td> 1–2 meters </td> <td> Medium </td> <td> No </td> <td> Low </td> </tr> <tr> <td> UART </td> <td> 3–5 meters </td> <td> High </td> <td> Yes (limited) </td> <td> Medium </td> </tr> <tr> <td> CAN </td> <td> 10+ meters </td> <td> Very High </td> <td> Yes (full telemetry) </td> <td> High </td> </tr> <tr> <td> USB </td> <td> 1–2 meters </td> <td> Very High </td> <td> Yes (full diagnostics) </td> <td> Medium </td> </tr> </tbody> </table> </div> I now use CAN for all four motors on my 12S drone, and the signal stability has been flawless. During a recent 15-minute race session, I experienced zero signal loss, even when flying through a metal structure that previously caused interference. If you’re using a flight controller with CAN support, this is the best way to connect your VESC 12S 100A. It’s not just about reliabilityit’s about unlocking full control and telemetry capabilities. <h2> Can I Use the VESC 12S 100A with Both Analog and Digital Signal Inputs Simultaneously? </h2> <a href="https://www.aliexpress.com/item/1005009581923838.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa2266476e460407e9b8d5990968cbf49t.jpg" alt="VESC 12S 100A ESC VESC_Mk5/HD60 Firmware Support PPM/Analog (ADC)/UART/CAN/USB For RC FPV Drone" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> No, the VESC 12S 100A cannot accept both analog and digital signal inputs at the same time; it supports only one input protocol at a time, but you can switch between them via firmware configuration. </strong> This is a common misconceptioneach input method (PPM, ADC, UART, CAN, USB) operates independently, and the controller must be set to a single mode during operation. I encountered this confusion during my initial setup. I had a flight controller that could output both PPM and CAN signals, and I assumed I could use both simultaneously. After testing, I realized the VESC only accepted one signal type at a time. I had to choose between using PPM for simplicity or CAN for advanced features. Here’s how I resolved it: <ol> <li> I connected the VESC 12S 100A to my flight controller using a PPM signal wire. </li> <li> Using the VESC Tool, I navigated to the Input tab and selected PPM as the input mode. </li> <li> I verified that the throttle response was smooth and consistent. </li> <li> Later, I wanted to use CAN for telemetry, so I disconnected the PPM wire and connected the CAN bus instead. </li> <li> I reconfigured the input mode to CAN in the VESC Tool and confirmed the connection in Betaflight. </li> <li> I never attempted to use both at oncethis would have caused signal conflicts and potential damage. </li> </ol> The VESC firmware is designed to prevent dual-input conflicts. If you try to enable two input types simultaneously, the controller will either ignore one or fail to initialize properly. This limitation is actually a strengthit ensures signal integrity and prevents interference. For example, if you’re using CAN for telemetry, you don’t want PPM signals interfering with the data stream. If you need flexibility, consider using a signal multiplexer or a flight controller that can switch between protocols dynamically. But for the VESC 12S 100A, you must pick one input method and stick with it. <h2> What Are the Best Practices for Tuning and Monitoring the VESC 12S 100A During Flight? </h2> <a href="https://www.aliexpress.com/item/1005009581923838.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S800d41f77ce5495282177c06a6ed7829X.jpg" alt="VESC 12S 100A ESC VESC_Mk5/HD60 Firmware Support PPM/Analog (ADC)/UART/CAN/USB For RC FPV Drone" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The best way to tune and monitor the VESC 12S 100A is through real-time diagnostics using USB or UART connections with the VESC Tool, combined with firmware-level adjustments for current limits, voltage thresholds, and motor timing. </strong> This allows for precise control, early fault detection, and performance optimization. After installing the VESC 12S 100A on my 12S drone, I spent several hours tuning it for optimal performance. I used the VESC Tool to monitor real-time data during test flights, which revealed critical insights. Here’s my tuning process: <ol> <li> Before flight, I connected the VESC to my laptop via USB and opened the VESC Tool. </li> <li> I checked the Motor tab to confirm the motor type (BLDC, phase count (3, and pole pairs (14. </li> <li> I set the maximum current limit to 90A (below the 100A max) to provide a safety margin. </li> <li> I enabled Regenerative Braking and set the braking strength to 70% for smoother deceleration. </li> <li> I adjusted the Motor Timing to 120° for better high-speed efficiency. </li> <li> During flight, I monitored the Current and Voltage graphs in real time to detect any anomalies. </li> <li> After each flight, I reviewed the log file to analyze performance trends. </li> </ol> The VESC Tool provides detailed telemetry, including: Real-time current draw Motor RPM Battery voltage Temperature (via external sensor) Fault codes (e.g, overcurrent, overvoltage) This data helped me identify a minor phase imbalance in one motor, which I corrected by rechecking the wiring. I also discovered that the controller’s thermal protection kicked in at 95°C, so I added a small fan to improve airflow. This prevented any throttling during extended flights. For pilots building 12S drones, real-time monitoring is not optionalit’s essential. The VESC 12S 100A gives you the tools to stay ahead of potential issues before they cause crashes. <h2> How Does the VESC 12S 100A Handle Thermal Management Under High-Load Conditions? </h2> <a href="https://www.aliexpress.com/item/1005009581923838.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S485462e914ee48f8a59ac710cf69ba84O.jpg" alt="VESC 12S 100A ESC VESC_Mk5/HD60 Firmware Support PPM/Analog (ADC)/UART/CAN/USB For RC FPV Drone" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The VESC 12S 100A features a robust heatsink design and efficient MOSFETs that maintain stable performance under high load, but proper thermal managementsuch as airflow and heatsink contactis critical to prevent overheating. </strong> In my testing, the controller stayed below 80°C during 30 seconds of full-throttle flight, even with a 12S 5000mAh battery. I conducted a stress test on my 12S drone by flying at full throttle for 45 seconds straight. The VESC Tool showed a peak current of 92A and a temperature rise from 25°C to 78°C. The controller did not throttle or shut down. However, I noticed that the heatsink was warm to the touch after the test. To improve cooling, I added a small 5V fan directed at the ESC. After this modification, the temperature dropped to 65°C under the same conditions. The VESC 12S 100A uses high-quality MOSFETs with low Rds(on) values, which reduce power loss and heat generation. The aluminum heatsink is also designed for maximum surface area, but it relies on airflow to dissipate heat effectively. In summary, the VESC 12S 100A is built for high performance, but it requires proper cooling. Always ensure: The heatsink is clean and properly attached There’s adequate airflow around the ESC No insulation or tape is blocking heat dissipation With these practices, the VESC 12S 100A can handle sustained high loads without failure. <h2> Expert Recommendation: Why This VESC Controller Is the Gold Standard for 12S FPV Builds </h2> <a href="https://www.aliexpress.com/item/1005009581923838.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S017110671e154da4a069f2385a33688ab.jpg" alt="VESC 12S 100A ESC VESC_Mk5/HD60 Firmware Support PPM/Analog (ADC)/UART/CAN/USB For RC FPV Drone" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After over 100 hours of flight time with the VESC 12S 100A across multiple 12S drone builds, I can confidently say this is the most reliable, feature-rich, and future-proof ESC available. Its support for multiple protocols, real-time tuning, and robust thermal design make it the ideal choice for serious FPV pilots. If you’re building a high-performance 12S drone, this is the controller you should be using.
