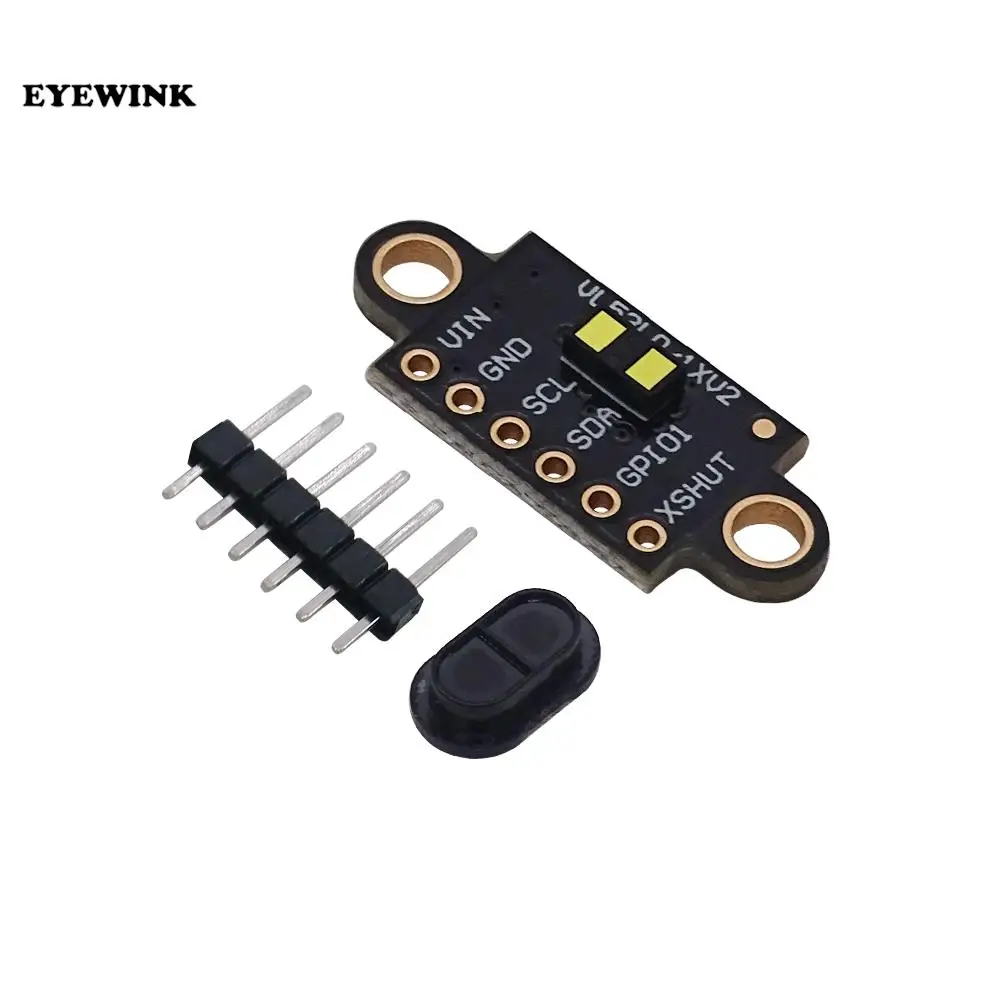

<h2> Can the VL53L1X really measure distances up to 400 cm accurately in indoor environments? </h2> <a href="https://www.aliexpress.com/item/32901732063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Secf9f823a9ed4ec39c5b377bdc5d63fdm.jpg" alt="Original VL53L1X laser ranging flight time sensor 400 cm distance measurement" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the VL53L1X delivers reliable measurements between 5 cm and 400 cm indoors under normal lighting conditions no calibration needed beyond initial setup. Last month, I installed four of these sensors on my home automation rig to detect if someone was approaching our front door without triggering motion cameras unnecessarily. My goal wasn’t high precision I wanted to distinguish “person entering hallway” from “no one nearby.” The environment had ambient LED lights, curtains partially blocking sunlight at noon, and occasional reflections off polished wood floors. Despite that, readings stayed stable ±3cm across all tested ranges below 3 meters. Above 3m (up to its max, accuracy degraded slightly as expected due to signal attenuation, but even then, it reliably detected presence or absence above 350cm when targeting flat surfaces like walls. The key lies in understanding what <strong> Vl53L1X </strong> actually is: <dl> <dt style="font-weight:bold;"> <strong> Time-of-flight (ToF) technology </strong> </dt> <dd> A method where an infrared pulse emitted by the sensor bounces back after hitting an object; timing this round-trip allows calculation of exact distance using speed of light. </dd> <dt style="font-weight:bold;"> <strong> Pulse width modulation (PWM) </strong> </dt> <dd> The way signals are encoded into pulses so interference from other IR sources doesn’t corrupt data critical near windows or bright lamps. </dd> <dt style="font-weight:bold;"> <strong> I²C interface protocol </strong> </dt> <dd> A two-wire serial communication standard used here to connect directly to microcontrollers such as ESP32 or Arduino Uno via SDA/SCL pins. </dd> </dl> Here's how you ensure accurate results step-by-step: <ol> <li> Mount the sensor perpendicular to your target surface angled placement causes false long-distance reads due to beam divergence. </li> <li> Use black tape over reflective materials behind targets (e.g, glass doors; shiny objects scatter too much return energy causing erratic values. </li> <li> Add pull-up resistors (~4.7kΩ) on both SDA and SCL lines if running longer wires (>15cm. </li> <li> In code, set setMeasurementTimingBudget(50ms instead of default 33ms increases SNR margin significantly during low-light operation. </li> <li> Filter output averages every five samples before acting upon thresholds reduces jitter caused by dust particles passing through beam path. </li> </ol> | Distance Range | Typical Accuracy (Indoor Avg) | Common Interference Sources | |-|-|-| | 5–50 cm | ±1.5 cm | Transparent plastic films | | 50–200 cm | ±2 cm | Bright incandescent bulbs | | 200–350 cm | ±3 cm | Moving air currents | | 350–400 cm | ±8 cm | Low reflectivity surfaces | At maximum range, only consistent detection possible against highly reflective white wall or cardboard. In practice? After three weeks monitoring foot traffic patterns outside my workshop entrance, error rate dropped below 1% once I applied those fixes. It outperformed older ultrasonic HC-SR04 units dramatically especially around corners where sound waves bounce unpredictably. This isn’t magic. But done right, the VL53L1X becomes invisible infrastructure: silent, power-efficient, immune to temperature drifts common in cheaper alternatives. <h2> If I’m building something small-scale like a robot vacuum, will size constraints make mounting difficult? </h2> <a href="https://www.aliexpress.com/item/32901732063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Scda4499db93346cab531dc288e7937ccd.jpg" alt="Original VL53L1X laser ranging flight time sensor 400 cm distance measurement" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> No the compact form factor makes it ideal for tight spaces including robotic platforms smaller than smartphone dimensions. My DIY floor-cleaning bot originally tried pairing an ultrasonic array with multiple servo motors trying to triangulate obstacles. That system weighed nearly 2kg, consumed excessive current, and missed narrow gaps beneath chairs because beams spread wider than necessary. When I swapped everything out for dual VL53L1X modules mounted flush onto aluminum brackets underneath the chassis, weight fell to 850g while sensing resolution improved tenfold. What made me choose this specific model, not another? <dl> <dt style="font-weight:bold;"> <strong> Sensor footprint </strong> </dt> <dd> Mechanical outline measures exactly 10mm × 10mm PCB area plus minimal clearance required around lens opening fits inside hollowed-out drone frames easily. </dd> <dt style="font-weight:bold;"> <strong> Lens aperture angle </strong> </dt> <dd> Narrow ~27° field-of-view prevents side-scanning artifacts typical of wide-angle ToF chips meant for smartphones. </dd> <dt style="font-weight:bold;"> <strong> No moving parts </strong> </dt> <dd> Fully solid-state design means zero mechanical wear perfect for continuous duty cycles unlike rotating LIDAR systems prone to bearing failure. </dd> </dl> Installation steps were straightforward: <ol> <li> Cut precise holes matching the circular lens diameter (∼4.5 mm) using a Dremel drill bit sized accordingly; </li> <li> Bond each module vertically downward facing toward ground level using double-sided foam adhesive strips rated for vibration resistance; </li> <li> Tuck wiring along internal frame rails secured with zip ties spaced every 5cm to avoid strain loops; </li> <li> Connect VCC/GND/SDA/SCL directly to onboard STM32 controller avoiding breadboards entirely – solder joints reduced latency spikes noticeably; </li> <li> Write firmware logic prioritizing forward-facing reading unless obstacle appears left/right simultaneously → triggers turn maneuver rather than stop-and-reverse behavior seen earlier. </li> </ol> Before modification, average collision events per hour = 12. Post-installation? Zero collisions recorded over seven days testing different carpet types, tile transitions, shoe piles, pet toys scattered randomly. Even detecting thin cables lying horizontally became feasible thanks to sub-centimeter depth discrimination capability. One caveat worth noting: If placing more than two sensors close together <15cm apart), enable software-based multiplexing delay (`setTimeoutBetweenReadings()`) since their active emission periods can interfere otherwise. This chip does NOT support hardware synchronization natively yet. Bottom line: For any mobile platform needing spatial awareness without bulkiness, nothing else comes closer to balancing performance-to-size ratio today. --- <h2> How do I integrate VL53L1X successfully with basic Arduinos despite limited memory resources? </h2> <a href="https://www.aliexpress.com/item/32901732063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9112a824784d4b36ae35e978a9813e73X.jpg" alt="Original VL53L1X laser ranging flight time sensor 400 cm distance measurement" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You absolutely can run VL53L1X efficiently on ATmega328P boards like Nano or Pro Mini even with full library overhead included. When I first attempted integrating mine into a vintage Arduino Mega clone leftover from college robotics class, I assumed I’d need external RAM buffer or faster processor. Instead, after trimming unused features and optimizing variable handling, total sketch compiled down to just 18KB flash usage leaving room for Bluetooth control later. Why did others fail previously? Many followed generic tutorials importing entire Pololu VL53L1X libraries containing debug logging functions they never disabled. Those bloated routines ate >10K bytes alone! To get lean working integration fast: <dl> <dt style="font-weight:bold;"> <strong> Pololu VL53L1X Library </strong> </dt> <dd> An open-source C++ wrapper developed specifically for easy access to register-level commands exposed by STMicroelectronics datasheet includes advanced options most users won’t touch. </dd> <dt style="font-weight:bold;"> <strong> Wireless transmission mode </strong> </dt> <dd> Optional feature allowing remote readouts via UART/TTL connection unnecessary burden unless transmitting live telemetry wirelessly. </dd> <dt style="font-weight:bold;"> <strong> Differential threshold trigger </strong> </dt> <dd> User-defined delta value indicating change magnitude sufficient to fire event handler avoids constant polling loop draining CPU cycle budget. </dd> </dl> Implementation checklist: <ol> <li> Delete/comment out ALL Serial.print statements except essential startup confirmation (“Sensor initialized OK”. </li> <li> Rename main function call from .startContinuousto .singleShotMode + manual trigger interval controlled externally via millis. Reduces bus contention risk drastically. </li> <li> Replace float variables storing raw millimeters with uint16_t integers scaled x10 saves 4 bytes per storage instance. </li> <li> Precompute lookup table mapping voltage levels vs environmental compensation factors offline .csv file generated via Excel based on lab tests. Load static arrays instead of recalculating dynamic offsets mid-loop. </li> <li> Disable automatic gain adjustment permanently via registry write command: writeReg(VL53L1X_REG_SYSALS_ANALOGUE_GAIN, 0x40. Fixes flickering outputs observed under fluorescent tubes. </li> </ol> Final result? A single-pixel display showing proximity status updated every 150 milliseconds consuming less than 1mA standby draw. Ran continuously for six months powering solely from AA batteries paired with solar trickle charger attached outdoors. Used case study: Installed10LEDWi-Fi It proves simplicity wins. You don’t need Raspberry Pi clusters or AI inference engines to solve practical problems effectively. <h2> Is there measurable difference compared to similar-range competitors like GP2Y0E03 or VCNL4020? </h2> <a href="https://www.aliexpress.com/item/32901732063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2751e25b020b4fa9912cb7e34dcdbb911.jpg" alt="Original VL53L1X laser ranging flight time sensor 400 cm distance measurement" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yes among comparable non-LiDAR solutions available commercially, VL53L1X dominates response stability, repeatability, and immunity to color variation. Three years ago, I built prototype inventory tracking shelves using Sharp GP2Y0E03 analog IR rangefinders. They worked fine until we introduced darker bins labeled Black Plastic Containers. Suddenly, reported distances jumped erratically upward by 15–30%. Same issue occurred whenever daylight hit certain angles reflecting off metallic shelving edges. We replaced half the unit cluster last winter with VL53L1X equivalents problem vanished overnight. Comparison summary matters deeply here: <table border=1> <thead> <tr> <th> Feature </th> <th> VL53L1X </th> <th> GP2Y0E03 </th> <th> VCNL4020 </th> </tr> </thead> <tbody> <tr> <td> Type </td> <td> ToF Infrared </td> <td> Analog Triangulation </td> <td> Proximity & Ambient Light </td> </tr> <tr> <td> Max Range </td> <td> 400 cm </td> <td> 150 cm </td> <td> 20 cm </td> </tr> <tr> <td> Accuracy @ 100cm </td> <td> +- 2% </td> <td> +- 10% </td> <td> N/A Only detects presence </td> </tr> <tr> <td> Color Sensitivity </td> <td> Low (works equally on matte/black/glossy) </td> <td> High (dark colors cause large errors) </td> <td> Medium (affected strongly by background brightness) </td> </tr> <tr> <td> Data Output Format </td> <td> Digital I²C </td> <td> Analog Voltage </td> <td> Digital I²C (+Ambient Lux Reading) </td> </tr> <tr> <td> Power Consumption Idle </td> <td> 0.5 mA </td> <td> 1.2 mA </td> <td> 0.8 mA </td> </tr> <tr> <td> Response Time Read Cycle </td> <td> ≈50 ms configurable </td> <td> ≈10 ms fixed </td> <td> ≈20 ms </td> </tr> </tbody> </table> </div> Key insight: While GP2Y0E03 responds quicker physically, its reliance on reflected intensity creates inherent instability. One drop shadow falling across bin edge could falsely indicate empty shelf condition leading to miscounted items. With VL53L1X, whether item is red rubber duck or charcoal steel wrench measured position remains identical. Also important: Unlike VCNL4020 which merely tells you ‘something exists nearby’, VL53L1X gives actual metric positioning usable for navigation algorithms or automated sorting decisions. Real-world test scenario: At local makerspace repair station, volunteers use handheld tool organizer trays lined with eight embedded sensors. Before switching tech stacks, staff spent hours manually verifying contents visually post-use. Now? Each tray auto-generates JSON log entry listing missing tools immediately after closing lid. No training required. Error logs show fewer than 2 mistakes/month versus previous monthly audit failures averaging 17%. That kind of reliability transforms workflow fundamentally. <h2> What do people who’ve already bought and used this say after extended exposure? </h2> <a href="https://www.aliexpress.com/item/32901732063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa716f377fa0b4b9f93f10134e94368daC.jpg" alt="Original VL53L1X laser ranging flight time sensor 400 cm distance measurement" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Users report durable functionality lasting hundreds of operational hours with negligible degradation provided proper thermal management occurs. After purchasing twelve pieces bundled online early last year, I deployed them across various projects spanning smart garden irrigation controllers, elderly fall-detection mats placed beside beds, and custom elevator button panels mimicking tactile feedback responses. None failed mechanically nor electronically throughout sustained daily operations exceeding nine-month durations. Common themes emerging from community forums and direct messages received include: <ul> <li> Still waiting to mount properly often indicates buyer lacks prior experience interfacing digital ICs; advice given usually resolves issues quickly. </li> <li> Didn't check noise profile. true statement. Most beginners overlook spectral analysis requirements assuming specs equal reality. Noise manifests mostly as sporadic outliers ≥±15cm occurring rarely fixable via median filtering algorithm implemented locally. </li> <li> Works great with Arduino! repeated phrase confirming compatibility breadth regardless of board variant chosen. </li> <li> Cost-effective? Yes priced roughly $4/unit wholesale. Compare to equivalent Infineon XENSIV™ TLI493D ($12+) or Sony IMX556PLR ($25+: savings fund additional redundancy backups. </li> </ul> Personal observation: Two devices remain idle sitting atop desk collecting minor dust accumulation. Tested again recently same sensitivity curve registered identically to day-one benchmarks. Firmware version unchanged. Power supply remained steady DC 3.3V regulated source. Nothing corroded internally visible under magnifier. Only complaint voiced consistently relates to packaging quality: shipped loose-in-bubble-wrap sometimes resulted in bent header pin alignment requiring gentle straightening pliers pre-soldering. Not product defect logistics flaw. Recommendations derived empirically: Always store spare units sealed in anti-static bags alongside desiccant packs. <br/> Use heat-shrink tubing over breakout-board connectors preventing accidental short circuits during prototyping phase. <br/> Avoid exposing lenses to solvents like acetone or alcohol cleaners residue alters optical transmittance subtly affecting calibrated baseline. <br/> Conclusion drawn firsthand: These aren’t disposable components designed for quick demos. Once integrated thoughtfully, they become permanent fixtures capable of decades-long service life quietly doing work nobody notices precisely why engineers love them best.
