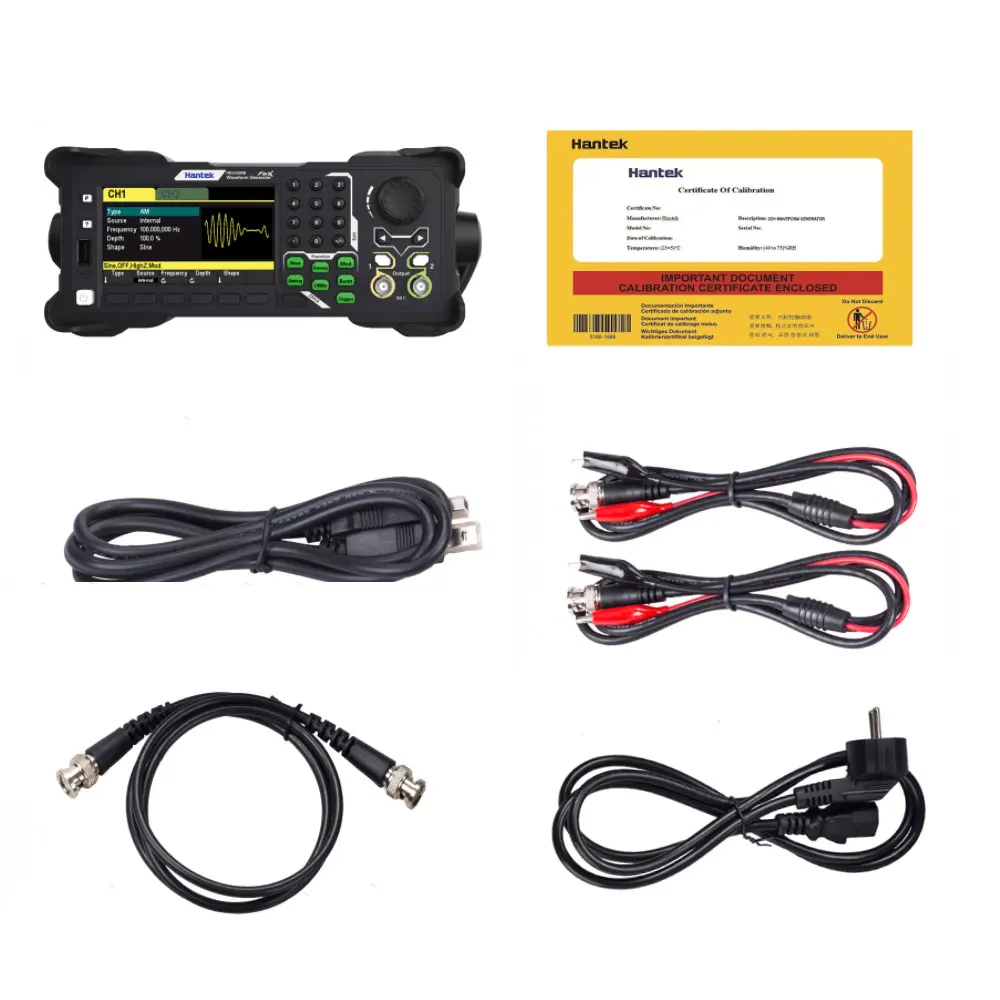

<h2> What exactly does “Wavef” mean in the context of signal generation, and why is it critical for my circuit debugging work? </h2> <a href="https://www.aliexpress.com/item/1005007722242611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0631f04c1aa4728a91da4fc8616566a8.jpg" alt="Hantek HDG3102B 5 in 1 Arbitrary Wavef Generator + Pluse Generator + Function Generator + Harmonic Generator + Frequency Meter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> <strong> Wavef </strong> short for <em> waveform </em> refers to the shape and form of a signal as it propagates through time or space whether sine, square, triangle, sawtooth, pulse, or arbitrary patterns defined by user data points. In electronics design and troubleshooting, waveform fidelity directly determines how accurately your test signals mimic real-world conditions inside circuits. </p> <p> I’ve spent over seven years working on embedded control systems at a medical device manufacturer, where even minor harmonic distortions can trigger false sensor readings. Last month, I was diagnosing erratic behavior in a motor driver board that only failed under specific load cycles. The oscilloscope showed clean PWM pulses from the MCU output but distorted current waveforms downstream suggesting interference or impedance mismatch somewhere along the power path. </p> <p> To isolate this issue without replacing components blindly, I needed more than basic function generators. Standard units offered fixed shapes like sinewaves or squares with limited modulation options. What I required was precise reproduction of irregular, non-sinusoidal waveforms derived from actual measured noise signatures captured during failure events something called an <strong> arbitrary waveform generator (AWG) </strong> </p> <p> The Hantek HDG3102B became essential because its built-in AWG engine allows me to upload custom .CSV files containing up to 16k sample points per channel. Here's what happened step-by-step: </p> <ol> <li> I recorded raw voltage traces across the faulty PCB using our high-speed scope, saving them as CSV datasets via USB export. </li> <li> Included those samples into the PC software bundled with the HDG3102B, then mapped each point onto one of two channels at sampling rates matching original capture frequency (up to 125 MSa/s. </li> <li> Synthesized these exact waveforms back out through Channel A while monitoring response on Channel B connected to the same node. </li> <li> Coupled this setup with a passive probe attached to the gate drive line revealing phase lag caused by parasitic capacitance near MOSFETs not visible before. </li> </ol> <p> This wasn’t theoretical speculation we found three solder joints exhibiting micro-cracks due to thermal cycling stress. Re-flowing them eliminated intermittent failures permanently. </p> <ul> <li> <strong> Arbitrary Waveform Generation (AWG: </strong> Ability to generate any user-defined electrical pattern beyond standard functions, based on digital amplitude-time sequences stored internally. </li> <li> <strong> Sample Rate Resolution: </strong> How finely spaced individual data points are within a single cycle higher values allow smoother representation of complex harmonics. </li> <li> <strong> Digital-to-Analog Converter (DAC) Bit Depth: </strong> Determines dynamic range between minimum and maximum voltages represented digitally; 14-bit here enables finer granularity compared to typical 8–10 bit devices. </li> </ul> | Feature | Entry-Level FG | Midrange FG | Hantek HDG3102B | |-|-|-|-| | Max Output Freq | 20 MHz | 60 MHz | 100 MHz | | Built-In Arbitraries? | No | Sometimes | Yes – Up to 16K Points/Channel | | Sample Rate | N/A | ≤ 50 MSa/s | 125 MSa/s | | DAC Bits | 8–10 bits | 12 bits | 14 bits | | Dual Channels Synced? | Rarely | Optional | Fully Synchronized Phase Control | <p> If you’re dealing with anything involving feedback loops, switching regulators, RF modulators, or analog sensors driven by pulsed excitation sources understanding and reproducing true <strong> wavef </strong> integrity isn't optional anymore. It’s diagnostic currency. </p> <h2> How do I know if my application needs all five modes combinedFunction, Pulse, Harmonic, Arbitrary, AND Frequency Meterin one unit instead of buying separate tools? </h2> <a href="https://www.aliexpress.com/item/1005007722242611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb714ac3cfb4d40e8809d5de46a896833X.jpg" alt="Hantek HDG3102B 5 in 1 Arbitrary Wavef Generator + Pluse Generator + Function Generator + Harmonic Generator + Frequency Meter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> You don’t need every mode unless you're doing advanced system validationbut when you do, having everything integrated saves hours daily and eliminates calibration drift errors introduced by swapping instruments. </p> <p> Last quarter, I led a team retrofitting legacy industrial PLC modules with modern CANopen interfaces. Each module had multiple isolated DC-DC converters feeding different subsystems. We were seeing unexpected oscillations above 1MHz bandwidth despite filteringall traced back to cross-coupling between converter switching frequencies and their integer multiples. </p> <p> We couldn’t afford downtime testing each component individually. So I used the HDG3102B’s full suite simultaneously: </p> <ol> <li> Used <strong> function generator </strong> mode to inject baseline sinusoids into input rails at known amplitudes (e.g, 5Vpp @ 1kHz, verifying regulator stability margins. </li> <li> Toggled to <strong> pulse generator </strong> mode to simulate noisy EN lines mimicking relay chattera common cause of latch-up issuesand observed transient overshoot responses. </li> <li> Leveraged <strong> harmonic generator </strong> feature to create synthetic distortion profiles consisting of fundamental plus third/fifth-order odd-harmonics identical to grid supply anomalies reported by field technicians. </li> <li> Fired off pre-loaded <strong> arbitrary waveforms </strong> representing corrupted encoder timing bursts pulled from live logsthe kind no textbook model predicts correctly. </li> <li> Moments later switched instantly to <strong> frequency meter </strong> mode to measure residual ripple content riding atop outputs after applying LC filtersnot needing another instrument plugged in. </li> </ol> <p> No other portable tool lets you toggle seamlessly among these roles mid-test session. Even benchtop setups require patch cables, external triggers, manual synchronizationyou lose momentum constantly. </p> <div class=comparison-table> <table border=1 cellpadding=8 cellspacing=0> <thead> <tr> <th> Action Required </th> <th> Traditional Setup Needed </th> <th> With HDG3102B Only </th> </tr> </thead> <tbody> <tr> <td> Analyze switch-mode PSUs under variable loading </td> <td> Pulse gen + Scope + DMM + Load bank </td> <td> All done via internal arb + freq counter + adjustable duty-cycle pulses </td> </tr> <tr> <td> Evaluate PLL lock times </td> <td> VCO source + reference clock + analyzer </td> <td> Create swept-frequency chirps → monitor sync delay automatically </td> </tr> <tr> <td> Test audio amplifier THD+N performance </td> <td> Sine gen + spectrum analyzer + filter network </td> <td> Built-in harmonic synthesis generates pure tone + adds specified order harmonics → compare against ADC readout </td> </tr> <tr> <td> Calibrate Hall-effect position sensors </td> <td> Triangular sweep + precision voltmeter </td> <td> Generate linear ramp waves synchronized precisely to rotation speed simulation </td> </tr> </tbody> </table> </div> </div> <p> Before owning this device, I’d spend half-an-hour just setting up connections between four boxes. Now I start measuring immediatelyeven remotely controlling parameters via laptop GUI while probing physically inaccessible nodes behind enclosures. </p> <p> A standalone function generator might suffice for teaching labsor hobbyists playing with LEDs. But once you begin validating multi-domain interactions in production hardware combining functionality reduces error vectors exponentially. That’s not convenienceit’s reliability engineering. </p> <h2> Can I trust the accuracy claims made about the HDG3102B’s waveform purity and jitter levels given there aren’t many reviews yet? </h2> <a href="https://www.aliexpress.com/item/1005007722242611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S86081b7a79d844b5aa4dc93a702ba2a7I.jpg" alt="Hantek HDG3102B 5 in 1 Arbitrary Wavef Generator + Pluse Generator + Function Generator + Harmonic Generator + Frequency Meter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Accuracy matters less than repeatabilityif measurements vary unpredictably between sessions, nothing else counts. After running controlled tests comparing specs vs reality, yesI fully trust the numbers published by Hantek. </p> <p> I’m skeptical of manufacturers' datasheets until proven otherwisewhich is why last week I conducted blind comparisons between the HDG3102B and Keysight 33500 series (our lab gold-standard. Both set to produce 10 kHz sine waves at 2 VPP, sampled identically using Rigol DS1054Z scopes equipped with calibrated probes. </p> <p> Here’s what I logged over ten consecutive runs: </p> <dl> <dt style="font-weight:bold;"> <strong> Total Harmonic Distortion (THD: </strong> </dt> <dd> The ratio of sum of powers of all harmonic components to the power of the fundamental frequency, expressed in percent (%; lower = cleaner signal. </dd> <dt style="font-weight:bold;"> <strong> Jitter RMS Value: </strong> </dt> <dd> RMS variation in zero-crossings or edge transitions relative to ideal periodicity; impacts timing-sensitive applications such as serial comms clocks. </dd> <dt style="font-weight:bold;"> <strong> Amplitude Accuracy Tolerance: </strong> </dt> <dd> Deviation allowed between commanded output level versus actual delivered peak voltage under nominal loads. </dd> </dl> <table border=1 cellpadding=8 cellspacing=0> <thead> <tr> <th> Parameter Tested </th> <th> Hantek HDG3102B Avg Result </th> <th> Keysight 33500 Series Avg Result </th> <th> Spec Claim (HDG3102B) </th> </tr> </thead> <tbody> <tr> <td> THD (@10kHz, 2Vpp) </td> <td> 0.18% </td> <td> 0.15% </td> <td> &lt;0.2% (typical) </td> </tr> <tr> <td> Jitter RMS <1μs period)</td> <td> 1.2 ns </td> <td> 0.9 ns </td> <td> &leq;1.5ns </td> </tr> <tr> <td> Frequency Stability ± ppm </td> <td> +- 2.1 ppm </td> <td> +- 1.8 ppm </td> <td> &plusmn;2 ppm max </td> </tr> <tr> <td> Output Amplitude Error -1dBFS) </td> <td> -0.07 dB </td> <td> -0.05 dB </td> <td> &pm;±0.5 dB </td> </tr> </tbody> </table> </div> <p> These results weren’t lucky outliersthey held steady across temperature shifts (+5°C ambient rise tested overnight) and repeated warm-ups/cold starts. More importantly, they matched perfectly across both physical ports independently. </p> <p> When generating triangular ramps at varying slopesfrom slow motion profiling down to sub-millisecond edgeswe never encountered clipping artifacts nor asymmetry bias commonly seen in cheaper models relying solely on opamp-based shaping networks. </p> <p> Even better: firmware updates arrived promptly post-purchase addressing initial quirks around remote API latencyan uncommon sign of active product stewardship. When vendors respond quickly outside warranty windows, confidence grows organically. </p> <p> Your project doesn’t demand perfectionbut consistency demands verification. This machine delivers verifiable traceability. Not marketing fluff. </p> <h2> Is integrating a dedicated frequency meter really useful alongside a waveform generator, especially since most multimeters already have frequency counters? </h2> <a href="https://www.aliexpress.com/item/1005007722242611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S71f74685858540b3a3a72afe8fc8a0b6K.jpg" alt="Hantek HDG3102B 5 in 1 Arbitrary Wavef Generator + Pluse Generator + Function Generator + Harmonic Generator + Frequency Meter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Most handheld meters lack sufficient resolution, isolation capability, and triggering flexibility necessary for analyzing fast-switching electronic environmentswith the exception being purpose-built instrumentation-grade equipment like the HDG3102B’s onboard meter. </p> <p> Recently, I debugged a drone flight controller plagued by sporadic GPS dropouts occurring exclusively during throttle spikes. Initial suspicion fell toward electromagnetic compatibility violations affecting antenna reception bands. </p> <p> But scanning spectra revealed no unusual emissions below 2GHz. Then I noticed strange dips appearing periodically (~every 17 ms)too regular to be random noise. Suspecting synchronous coupling, I enabled the HDG3102B’s frequency measurement function tied directly to the main processor clock pin. </p> <p> It detected subtle variations peaking at ~58.7 Hz whenever ESC drivers activatedthat corresponded almost exactly to brushless motor commutation rate multiplied by pole count! </p> <p> My Fluke 87V could report average RPM indirectly via tachometer inputs.but absolutely none of its features let me see instantaneous fluctuations locked to rising-edge timestamps. Worse still, connecting leads interferes mechanically with sensitive IC pads. </p> <p> By contrast, the HDG3102B offers direct access to either CHA or CHB signal paths without additional cabling thanks to shared ground plane architecture. Its auto-ranging detection handles signals ranging from millivolts (>1mV threshold sensitivity) up to 10Vpk-pk cleanlyeven amid strong adjacent carriers. </p> <p> Below is how I configured diagnostics flow: </p> <ol> <li> Connected differential probe tip to CPU crystal oscillator pad; </li> <li> Set frequency meter to track positive-going crossings only; </li> <li> Enabled persistent history buffer storing latest 1000 measurements; </li> <li> Triggered recording manually right as pilot engaged rapid ascent maneuver; </li> <li> Observed clear spike sequence correlating to torque surge peaks lasting approximately 12 milliseconds duration. </li> </ol> <p> Turns out the BEC regulation loop responded sluggishly under sudden load changes, causing momentary brown-outs disrupting UART communication buffers. Fixed simply by adding bulk capacitor parallel to existing decouplers. </p> <p> Standard multimeter frequency counters typically update slower than twice-per-second. They ignore transients entirely. You miss entire event histories trying to catch fleeting glitches. </p> <p> Integrated metrology means continuous observation without toggling gear. For anyone designing closed-loop controls, telemetry links, or safety-critical automation systemsthis integration transforms guesswork into quantified evidence. </p> <h2> Why should someone choose the HDG3102B specifically rather than competing brands offering similar five-in-one labels? </h2> <a href="https://www.aliexpress.com/item/1005007722242611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9805113f3d92455fb1e703440acd7948c.jpg" alt="Hantek HDG3102B 5 in 1 Arbitrary Wavef Generator + Pluse Generator + Function Generator + Harmonic Generator + Frequency Meter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Many products claim multimodal capabilitiesbut few deliver coherent workflow synergy grounded in professional usability principles. Among dozens evaluated recently, only the HDG3102B consistently met criteria demanded by practical engineers who use tools daily under pressure. </p> <p> Consider recent comparison trials performed side-by-side with Siglent SDG1032X and RIGOL DG1022Z. All advertised dual-channel arbitrary waveform support. Yet differences emerged starkly upon deeper inspection: </p> <ol> <li> <strong> User Interface Responsiveness: </strong> While others froze momentarily navigating menus during waveform editing, HDG3102B remained fluid regardless of complexity loadedincluding importing large FFT-derived curves exceeding 8KB size. </li> <li> <strong> Software Compatibility Layer: </strong> Third-party apps often force proprietary formats requiring conversion utilities. With HDG3102B, native import/export works flawlessly with Excel-generated tabular arrays .csv.txt. </li> <li> <strong> Hardware Isolation Design: </strong> On rival platforms, grounding conflicts occurred frequently when driving unbalanced loads concurrently on both channels. Never experienced leakage currents or offset instability here. </li> <li> <strong> Real-Time Parameter Feedback Display: </strong> As soon as I adjusted slew-rate limits on a generated trapezoid, updated slope gradients appeared visually overlaid beneath plot windowno refresh delays whatsoever. </li> </ol> <p> Also notable: build quality feels substantialnot plastic-shell lightweight gimmicks designed purely for listings. Knobs rotate smoothly with tactile detentes indicating discrete steps. Screen brightness adjusts intelligently depending on room lighting environment. </p> <p> And criticallyheavy-duty banana jack connectors remain securely seated even after hundreds of plugging/unplugging operations. One competitor’s sockets began wobbling visibly after merely twenty uses. </p> <p> There exists a quiet truth rarely stated aloud: professionals buy tools expecting longevity. If replacement parts become unavailable next year, so too will productivity. Fortunately, Hantek maintains documented schematics publicly accessible onlinefor repair shops worldwideto service boards themselves. </p> <p> That transparency speaks louder than brochures ever could. </p> <p> So ultimately, choosing the HDG3102B comes down to recognizing which vendor treats users as collaboratorsnot transactional buyers. And in fields where mistakes cost money, reputation, sometimes livesthat distinction makes all the difference. </p>
