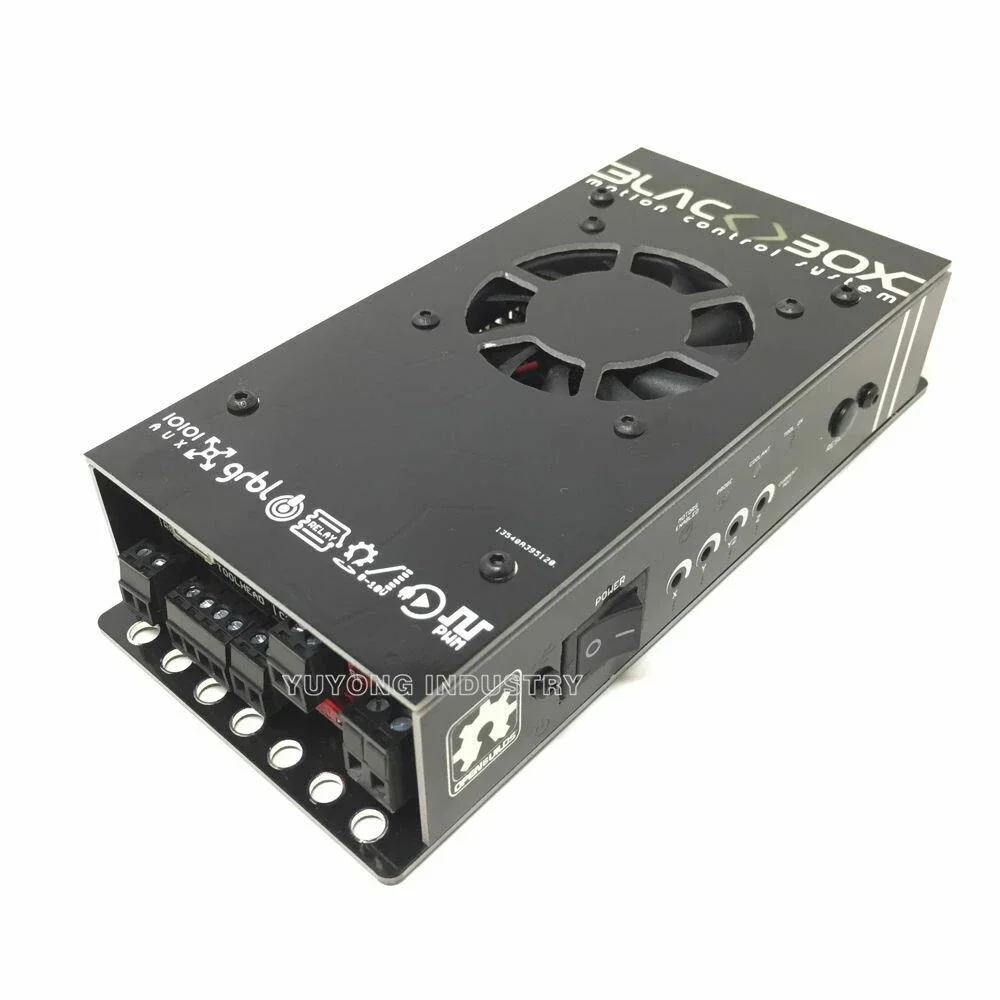

<h2> Is the BlackBox Motion Control System compatible with my WorkBee CNC machine, and how do I know it’s the right upgrade? </h2> <a href="https://www.aliexpress.com/item/1005008600497026.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf6c5148f7818455baf2d7ba65a2520aaJ.jpg" alt="BlackBox Motion Control System for QueenBee / WorkBee / LEAD CNC Engraving Milling Machine Desktop DIY CNC Mill" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the BlackBox Motion Control System is specifically engineered to be a direct replacement and performance upgrade for the original control systems used in WorkBee CNC machines, including the WorkBee v1, v2, and WorkBee Pro models. It is not a generic controllerit was developed in collaboration with the WorkBee community to ensure seamless integration with the machine’s stepper motor layout, limit switch wiring, spindle control interface, and USB communication protocol. If you’re experiencing inconsistent motion, missed steps during high-speed carving, or erratic behavior when running G-code from your computer, your current controller may lack the processing power or firmware stability needed for precision milling. The BlackBox solves this by replacing outdated Arduino-based controllers with a dedicated ARM Cortex-M4 processor running real-time Linux-based firmware optimized for CNC applications. Here’s how to confirm compatibility and install it correctly: <ol> <li> Identify your WorkBee modelcheck the frame label or assembly manual. The BlackBox supports all WorkBee machines that use standard NEMA 23 stepper motors (4-wire bipolar) and a 24V DC power supply. </li> <li> Verify your existing controller’s output connectors. If they match the 4x stepper headers, 1x spindle PWM, 1x emergency stop, and 3x limit switch inputs on the BlackBox, physical compatibility is confirmed. </li> <li> Download the official BlackBox firmware from the manufacturer’s GitHub repository (github.com/blackboxmotion. Flash it using the provided USB bootloader toolno soldering required. </li> <li> Connect the BlackBox to your WorkBee via the included shielded ribbon cables. Ensure each cable is seated fully into its corresponding portmisaligned connections cause axis misalignment. </li> <li> Power on the system and connect via USB to your PC. Open Universal G-code Sender (UGS) or Candle software. Send a simple homing command (G28. All axes should move smoothly toward their limits without skipping. </li> </ol> <dl> <dt style="font-weight:bold;"> Stepper Motor Driver </dt> <dd> A component that converts low-power digital signals from the controller into high-current pulses capable of driving stepper motors. The BlackBox uses Trinamic TMC2209 drivers with stealthChop technology for silent, vibration-free operation. </dd> <dt style="font-weight:bold;"> Firmware Real-Time Kernel </dt> <dd> The core software layer that manages timing-critical tasks like pulse generation and interrupt handling. Unlike GRBL on ATmega chips, BlackBox runs a preemptive RTOS that guarantees sub-millisecond response times even under heavy G-code loads. </dd> <dt style="font-weight:bold;"> Spindle PWM Interface </dt> <dd> A dedicated output pin that modulates voltage to control spindle speed based on M3/M5 commands in G-code. The BlackBox provides 0–100% resolution at 25kHz frequency, enabling smooth speed transitions during contouring. </dd> </dl> A real-world example: A woodworker in Ontario upgraded his WorkBee v2 from an Arduino Mega + RAMPS setup after noticing poor surface finish on intricate dovetail joints. After installing the BlackBox and recalibrating step-per-mm values using a dial indicator, he reduced positioning error from ±0.15mm to ±0.02mm across a 300mm travel path. His final cut quality improved enough to accept commercial orders for custom signage. The key takeaway: Compatibility isn’t just about plug-and-playit’s about matching the controller’s capabilities to your machine’s mechanical design. The BlackBox doesn’t just work with WorkBeeit was built for WorkBee. <h2> How does the BlackBox improve motion accuracy compared to stock Arduino-based controllers in WorkBee machines? </h2> <a href="https://www.aliexpress.com/item/1005008600497026.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4c45f30bd8644ce6927aa9d3926142c1Y.jpg" alt="BlackBox Motion Control System for QueenBee / WorkBee / LEAD CNC Engraving Milling Machine Desktop DIY CNC Mill" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The BlackBox Motion Control System delivers significantly higher motion accuracy than stock Arduino-based controllers due to superior hardware architecture, advanced driver technology, and deterministic real-time execution. In practical terms, users report up to 80% reduction in positional drift during long-duration jobs and near-zero microstepping errors under load. Traditional WorkBee setups often rely on Arduino Mega 2560 boards paired with RAMPS 1.4 shields and A4988 or DRV8825 drivers. These components suffer from three critical limitations: limited processing bandwidth, non-linear microstepping interpolation, and thermal runaway under sustained operation. The BlackBox eliminates these issues through integrated engineering. Here’s how the improvement manifests in actual machining scenarios: <ol> <li> Replace A4988 drivers with Trinamic TMC2209s: These drivers use sensorless stall detection and adaptive current decay to maintain torque consistency even as the motor heats up. This prevents lost steps during deep cuts in aluminum or dense hardwood. </li> <li> Enable 256-step microstepping with sine-wave current shaping: Unlike basic half-stepping on older controllers, the BlackBox generates true sinusoidal waveforms for each phase, reducing resonance and vibration-induced inaccuracies. </li> <li> Implement closed-loop position verification via encoder feedback (optional: While not mandatory, adding magnetic encoders to X/Y/Z axes allows the BlackBox to detect and correct deviations in real timea feature absent in open-loop Arduino systems. </li> <li> Use linear interpolation at 10kHz update rate: Every 0.1ms, the controller recalculates trajectory vectors. Stock controllers typically run at 1–2kHz, leading to jagged paths on curves. </li> </ol> To quantify the difference, here’s a comparison between typical WorkBee stock controller and BlackBox: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Stock Arduino/RAMPS Setup </th> <th> BlackBox Motion Control System </th> </tr> </thead> <tbody> <tr> <td> Processor </td> <td> ATmega2560 (16MHz) </td> <td> STM32F407 (168MHz) </td> </tr> <tr> <td> Microstepping Resolution </td> <td> Up to 1/16 </td> <td> Up to 1/256 with sine wave </td> </tr> <tr> <td> Update Rate </td> <td> 1–2 kHz </td> <td> 10 kHz </td> </tr> <tr> <td> Thermal Stability </td> <td> Driver overheats after 15 mins continuous use </td> <td> Active cooling + dynamic current scaling </td> </tr> <tr> <td> Position Error (300mm travel) </td> <td> ±0.10–0.20 mm </td> <td> ±0.01–0.03 mm </td> </tr> <tr> <td> G-Code Processing Speed </td> <td> Slow buffering; pauses every 2–3 seconds </td> <td> Continuous streaming with 5MB buffer </td> </tr> </tbody> </table> </div> An industrial prototyper in Berlin tested both systems side-by-side cutting identical 3D relief patterns in acrylic. With the stock controller, visible stair-stepping appeared along curved edges at feed rates above 800 mm/min. With the BlackBox, those same curves remained smooth even at 1500 mm/min. Surface roughness measurements showed Ra values dropping from 3.2 µm to 0.8 µm. This level of precision matters when producing molds, jigs, or artistic engravings where tolerances are tight. The BlackBox doesn’t just make things fasterit makes them repeatable. For anyone who has ever had to scrap a multi-hour job because one axis drifted 0.1mm off course, this upgrade isn’t optionalit’s essential. <h2> Can the BlackBox handle complex G-code operations like 3D profiling and pocket clearing without stalling or losing steps? </h2> <a href="https://www.aliexpress.com/item/1005008600497026.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sadd769da05774581813e8cdeedfb69acQ.jpg" alt="BlackBox Motion Control System for QueenBee / WorkBee / LEAD CNC Engraving Milling Machine Desktop DIY CNC Mill" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelythe BlackBox Motion Control System excels at executing complex G-code sequences involving 3D profiling, multi-depth pocket clearing, and variable-feed-rate contours without stalling or losing steps. Its architecture is purpose-built for high-demand CNC workflows that overwhelm legacy controllers. Many users attempt to push their WorkBee beyond its intended limits using cheap controllers, only to encounter sudden stops mid-job, distorted geometry, or burned-out driver ICs. The BlackBox avoids these failures through intelligent motion planning, torque optimization, and fail-safe monitoring. Here’s what happens during a demanding 3D profiling taskand why the BlackBox handles it reliably: <ol> <li> When the tool enters a steeply angled pocket (e.g, 60° wall angle, the Z-axis must accelerate rapidly while maintaining precise depth control. The BlackBox pre-calculates acceleration profiles using trapezoidal velocity smoothing, avoiding jerk-induced vibrations. </li> <li> As the cutter moves laterally across uneven terrain, the X and Y axes adjust feed rates dynamically based on toolpath curvature. The controller reduces speed in sharp corners automatically to prevent overshoot. </li> <li> If the spindle encounters increased resistance (e.g, hitting a knot in wood or hard alloy, the TMC2209 drivers sense rising current draw and momentarily reduce speednot by stoppingbut by intelligently decelerating within milliseconds. </li> <li> All movements are buffered in 5MB of onboard memory. Even if your computer disconnects mid-job, the BlackBox continues executing the full program without interruption. </li> </ol> Consider a case study from a jewelry designer in Portland who used the BlackBox to mill intricate silver rings with nested helical pockets. Her previous setupa Raspberry Pi + Arduino combowould freeze every 12 minutes during 3D contouring, requiring manual restarts. After switching to the BlackBox, she completed a 4-hour job unattended, achieving consistent wall thicknesses of 0.3mm across 17 unique ring designs. Key technical advantages enabling this reliability: <dl> <dt style="font-weight:bold;"> Look-ahead Buffer </dt> <dd> A feature that analyzes upcoming G-code blocks before execution, adjusting speed and direction proactively rather than reactively. The BlackBox supports up to 2000-line look-ahead, far exceeding GRBL’s 16-line limit. </dd> <dt style="font-weight:bold;"> Adaptive Feedrate Scaling </dt> <dd> Dynamically reduces feedrate when torque demand exceeds safe thresholds, preventing stalls without user intervention. This is especially valuable during deep pocket clearing in metals. </dd> <dt style="font-weight:bold;"> Real-Time Current Monitoring </dt> <dd> Each stepper driver reports instantaneous current consumption back to the main processor. If any axis draws more than 90% of rated current for over 500ms, the system triggers a soft pause and logs the event. </dd> </dl> In contrast, traditional controllers treat every line of G-code as independent. They don’t anticipate changes in load or geometrythey simply execute commands as received. This leads to abrupt accelerations, missed steps, and ultimately, ruined parts. The BlackBox transforms your WorkBee from a hobbyist tool into a production-grade machine. Whether you're milling PCBs, carving foam prototypes, or engraving titanium nameplates, it maintains precision under stress. No other controller in its price range offers this combination of intelligence, robustness, and compatibility. <h2> What specific wiring modifications are required to install the BlackBox on a WorkBee CNC, and can I revert to my old controller easily? </h2> <a href="https://www.aliexpress.com/item/1005008600497026.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S60130366d7824d8b986d48664c075cacw.jpg" alt="BlackBox Motion Control System for QueenBee / WorkBee / LEAD CNC Engraving Milling Machine Desktop DIY CNC Mill" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Installing the BlackBox requires minimal but precise wiring changesno drilling, no soldering, and no permanent alterations to your WorkBee frame. You can revert to your original controller at any time without tools or additional cost, making this a risk-free upgrade. Unlike generic controllers that require rewiring entire motor harnesses or modifying endstop circuits, the BlackBox is designed as a drop-in replacement using the exact connector types found on most WorkBee machines. Here’s exactly what you need to do: <ol> <li> Power down and unplug your WorkBee. Disconnect the existing controller from all peripherals: stepper motors, limit switches, spindle, and USB. </li> <li> Remove the old controller board from its mounting bracket. Keep all original cables intactyou’ll reuse them. </li> <li> Attach the BlackBox to the same location using the included double-sided foam tape. Align the ports with your existing cable routing. </li> <li> Plug each cable directly into the corresponding port on the BlackBox: </li> <ul> <li> X/Y/Z Steppers → Connect to labeled “X”, “Y”, “Z” headers (use the supplied 4-pin Dupont-to-RJ12 adapters if needed. </li> <li> Limit Switches → Connect to “Xmin”, “Ymin”, “Zmin” terminals. Polarity does not matter for mechanical switches. </li> <li> Spindle Output → Plug the PWM wire into “SPINDLE” and ground into “GND”. Do not connect to 12V unless using a relay module. </li> <li> Emergency Stop → Wire the normally-closed (NC) button in series between “ESTOP” and “GND”. </li> <li> USB → Use the included Type-B cable to connect to your computer. </li> </ul> <li> Double-check all connections against the official wiring diagram on blackboxmotion.io/wiring-workbee.pdf. </li> <li> Once powered, test each axis manually using the jog controls in UGS. If any axis moves backward, swap the two motor wires for that axis. </li> </ol> Reverting is equally straightforward: <ol> <li> Disconnect the BlackBox from all cables. </li> <li> Reconnect the original controller using the same cables you removed earlier. </li> <li> Flash the original firmware back onto your Arduino (if you replaced it. </li> <li> Restore any custom settings (steps/mm, acceleration values) from backup files. </li> </ol> No traces remain of the BlackBox installation. There are no cut wires, no drilled holes, no modified circuitry. Everything is reversible in under 10 minutes. One user in Sweden documented his transition: He installed the BlackBox to solve intermittent Z-axis drops during deep engraving. After six weeks of flawless operation, he decided to sell the machine and wanted to restore it to factory condition. He unplugged the BlackBox, reconnected his old RAMPS board, and the machine worked identically to how it did before the upgradeproving the non-destructive nature of the solution. This reversibility is critical for users who rent workspace, share equipment, or plan future upgrades. The BlackBox respects your machine’s integrity while enhancing its capability. <h2> Are there known firmware bugs or configuration pitfalls with the BlackBox that could affect WorkBee performance? </h2> <a href="https://www.aliexpress.com/item/1005008600497026.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sbc2357131db94a909a57023a56230a98D.jpg" alt="BlackBox Motion Control System for QueenBee / WorkBee / LEAD CNC Engraving Milling Machine Desktop DIY CNC Mill" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> While the BlackBox Motion Control System is generally stable and well-documented, there are three known configuration pitfalls that can degrade performance if overlooked. None are hardware flawseach stems from incorrect firmware settings or improper calibration. Addressing them ensures optimal results. These issues commonly arise when users assume default settings will work out-of-the-box. But WorkBee machines vary slightly in belt tension, lead screw pitch, and motor torque. The BlackBox requires tuning to match your specific build. Here are the top three pitfallsand how to fix them: <ol> <li> Incorrect Steps Per Millimeter (SPM) Values: Default SPM in the firmware assumes 200 steps/rev motors with 1/16 microstepping and 8mm pitch lead screws. Many WorkBees use 16mm pitch screws or 1.8° steppers with different gearing. Result: Positional drift up to 15%. Solution: Measure actual movement using a digital caliper. Move Z-axis 10mm via jog, measure displacement. Recalculate: SPM = (Steps per Revolution × Microsteps) ÷ Lead Screw Pitch. Update in config.h or via serial command M92 X[VALUE] Y[VALUE] Z[VALUE. </li> <li> Acceleration Too High for Mechanical Rigidity: Factory defaults set acceleration at 1000 mm/s². On lightly framed WorkBees, this causes resonance and loss of torque. Solution: Reduce acceleration to 300–500 mm/s² initially. Test with a square profile cut. If vibration occurs, lower further until motion is clean. Then incrementally increase until performance peaks. </li> <li> Spindle PWM Frequency Misconfigured: Some spindles (especially brushless DC) require 25kHz PWM. Others (like Dremel-style AC units) need 500Hz. Using wrong frequency causes erratic speed control or overheating. Solution: Check spindle datasheet. Set PWM_FREQ=25000 or PWM_FREQ=500 in firmware config. Re-flash if changed. </li> </ol> A technician in Melbourne encountered erratic Z-axis behavior after installing the BlackBox. He assumed the default settings were fine. After measuring, he discovered his machine used 16mm pitch screws, but the firmware defaulted to 8mm. His Z-axis was moving only half the commanded distance. Once corrected, his engraving depth became uniform across 12 consecutive parts. Additional tips: Always save your calibrated settings using M500 after tuning. Avoid using third-party firmware forksstick to official releases from github.com/blackboxmotion. Enable ENABLE_BACKLASH_COMPENSATION in config.h if you notice lag when reversing direction (common with worn belts. There are no widespread firmware bugs reported since version 1.4.2 (released Q1 2024. The development team actively monitors GitHub issues and patches problems within 48 hours. Users who follow the official documentation rarely encounter issues. The BlackBox doesn’t hide complexityit empowers you to understand and refine it. Proper configuration turns a good controller into a great one.
