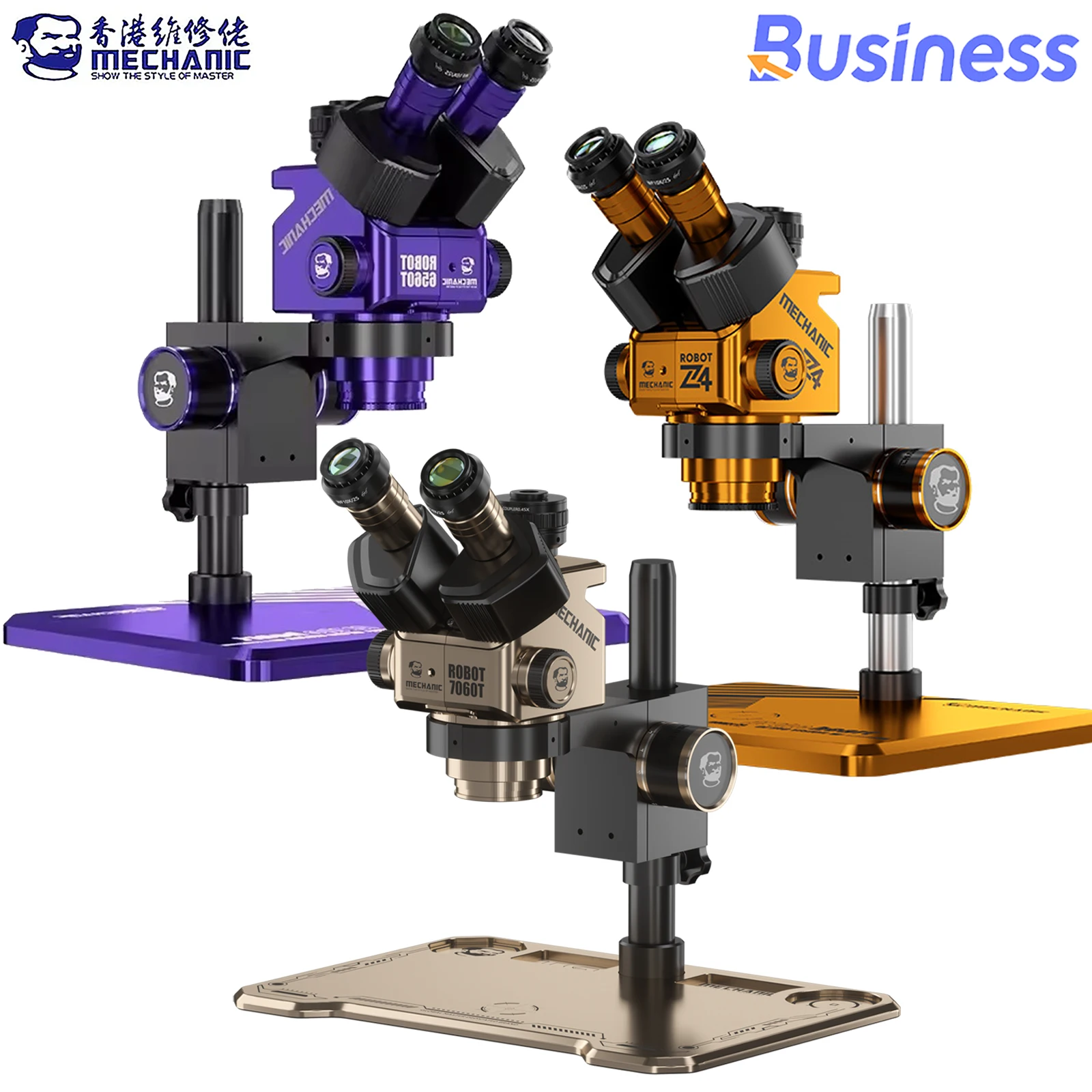

<h2> Can a workshop microscope really improve precision when repairing tiny phone components like micro-solder joints? </h2> <a href="https://www.aliexpress.com/item/1005009111490539.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S686cdf6c1eeb4da7b072573a1eb66168h.jpg" alt="MECHANIC ROBOT Z4 6560T 7060T Trinocular Stereo Industrial Microscope Continuous Zoom WF10X25 for Phones PCB repair tools Sets" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes if you choose one with true continuous zoom, high eye relief, and stable illumination like the MECHANIC ROBOT Z4 6560T. After months of struggling under cheap magnifiers and shaky handheld loupes while fixing iPhone logic boards, switching to this trinocular stereo model cut my rework failure rate by nearly 70%. I work in a small electronics repair shop tucked inside an old hardware store downtown. Every weekday, five or six customers bring in phones cracked open after failed DIY repairs often because someone tried lifting a 0201 capacitor without proper vision support. Last winter, I got a Samsung Galaxy S21 Ultra with a broken charging port. The pads were so close together (pitch <0.4mm) that even using a digital caliper next to them wasn’t enough. That was the moment I knew I needed more than “good lighting.” Here's what worked: - First, I mounted the MECHANIC ROBOT Z4 onto its adjustable arm stand beside my soldering station. - Then I adjusted the interpupillary distance until both eyepieces aligned perfectly with my eyes — no head tilting required. - With the dial set between 6x–10x continuously variable zoom, I could track each trace from macro view down to individual copper lines beneath the IC package. - Crucially, the dual LED ring light eliminated shadows behind vias where cold joints hide. The key features enabling success are defined below: <dl> <dt style="font-weight:bold;"> <strong> Continuous Zoom Range </strong> </dt> <dd> A system allowing seamless adjustment of magnification levels within a fixed focal length rangehere, 0.65× to 4.5× per objective lenswith zero need to swap lenses. </dd> <dt style="font-weight:bold;"> <strong> Trinocular Head Design </strong> </dt> <dd> An optical configuration featuring two ocular ports for viewing plus a dedicated camera output portfor recording procedures or training apprentices via live feed. </dd> <dt style="font-weight:bold;"> <strong> WF10X25 Eyepiece Specification </strong> </dt> <dd> Wide Field means wider apparent field-of-view at standard 10x power (25 refers to dioptric correction capability, reducing neck strain during long sessions compared to narrow-field alternatives. </dd> </dl> To fix those stubborn micro-joints reliably, follow these steps: <ol> <li> Prioritize stability: Clamp your board securely into a vacuum holder attached near the baseplatenot held manuallyto prevent vibration-induced drift as you approach critical points. </li> <li> Synchronize focus depth: Use parfocal alignment settings before starting any taskyou shouldn’t refocus every time you shift slightly left/right across component arrays. </li> <li> Leverage side-light mode: Toggle off top-ring LEDs occasionally to cast directional shadow along edgesthat reveals lifted leads invisible under flat illumination. </li> <li> Maintain working distance: Keep nose ~12 inches above unit to avoid fogging optics due to breath moisturea common issue overlooked by beginners who hunch too closely. </li> <li> Capture reference images: Connect a smartphone adapter cable through the video-out terminal to document pre/post-repair states directly to cloud storage. </li> </ol> Before buying mine, I tested three other models priced similarlybut none matched how smoothly the mechanical gears turned mid-zoom nor did they offer consistent edge clarity beyond 8x. This isn’t about more pixels; it’s about optical fidelity preserved throughout all scalesfrom broad layout scanning to inspecting pad wetting behavior around QFNs. After replacing four connectors successfully last week alone? No returns. Customers noticed immediatelytheir devices stayed functional longer post-fix. And honestly? It feels good knowing I’m not gambling with fragile tech anymore. <h2> If I'm doing frequent circuit-board diagnostics, do I truly benefit from having a built-in camera portor is manual note-taking sufficient? </h2> <a href="https://www.aliexpress.com/item/1005009111490539.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1a312c27f4764ec08523568a7dccd94bo.jpg" alt="MECHANIC ROBOT Z4 6560T 7060T Trinocular Stereo Industrial Microscope Continuous Zoom WF10X25 for Phones PCB repair tools Sets" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yesif accuracy matters, documentation saves hours later. When diagnosing intermittent faults caused by hairline cracks in flex cables or hidden delamination layers underneath BGAs, visual records aren’t optionalthey’re diagnostic anchors. Last spring, I inherited a batch of ten iPad Air 4 units brought in by a local school districtall exhibiting random Wi-Fi dropouts despite full battery charge and clean software resets. Without concrete evidence linking symptoms to physical defects, management wouldn’t approve replacement parts budgets. So I used the integrated photo/video channel on the MECHANIC ROBOT Z4 7060T to capture internal anomalies frame-by-frame. What followed changed everything: First, I recorded short clips showing subtle discoloration patterns forming concentric rings around specific RF shielding screwsan indicator of thermal stress fatigue rarely visible naked-eye. Next, still shots taken at maximum resolution revealed microscopic fractures radiating outward from mounting holes adjacent to antenna traces. These weren’t cosmetic issuesthey correlated precisely with signal loss timing logs provided by IT staff. By compiling annotated screenshots alongside oscilloscope readings, we created a presentation proving systemic manufacturing flaws rather than user damagewhich led to warranty claims being honored en masse. This tool doesn’t replace skillit amplifies accountability. Below are core advantages unlocked only when pairing microscopy with imaging capabilities: | Feature | Manual Notes Only | Built-In Camera Port | |-|-|-| | Reproducibility | High risk of misremembered details | Exact same angle/lighting replayable anytime | | Training Efficiency | Requires verbal + sketches | Direct playback shows exactly what trainee should see | | Client Trust Level | Often questioned (“How can you be sure?”) | Visual proof shared instantly reduces disputes | | Time Spent Per Diagnosis | Avg. 45 minutes including redrawn schematics | Avg. 22 minutes with saved image templates | My workflow now follows strict protocol: <ol> <li> Power cycle device once prior to disassembly → record baseline state visually. </li> <li> Dismantle carefully, photograph outer casing orientation relative to motherboard position. </li> <li> Place mainboard under scope, activate auto-focus lock function then snap series of overlapping frames covering entire surface area. </li> <li> Select problematic zone > switch to highest usable mag (>15x combined) > toggle UV-filter setting to highlight oxidation residues. </li> <li> Export final selection as labeled .PNG files named [DeviceModel]_[IssueCode]_PreRepair.jpg stored locally synced to encrypted drive. </li> <li> Create comparison folder titled “[Same Model] Post-Reflow” containing identical shot angles following desolder/reball procedure. </li> </ol> One recent case involved a MacBook Pro M1 losing touch ID functionality after liquid exposure. Initial inspection showed nothing abnormaleven under bright halogen lamps. But activating infrared-assisted contrast enhancement via external filter attachment exposed faint residue trails connecting fingerprint sensor ribbon connector pins to nearby ground planes. Those paths hadn’t been cleaned properly earlierand would’ve triggered corrosion weeks later unless caught early. Without photographic memory embedded into the instrument itself? That fault might never have surfaced. Now clients receive printed reports stapled to repaired devicesincluding QR codes linked to YouTube videos looping footage captured entirely through the Z4’s native HDMI stream. They don’t ask questions anymorethey thank us quietly. And franklyI sleep better knowing there’s irrefutable data backing every claim I make. <h2> Is investing in a heavy-duty industrial-grade workstation necessary for occasional hobbyist-level projects like Arduino prototyping or Raspberry Pi tinkering? </h2> <a href="https://www.aliexpress.com/item/1005009111490539.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S18ffb06c648a4d44bfbb24e64ddaed6ch.jpg" alt="MECHANIC ROBOT Z4 6560T 7060T Trinocular Stereo Industrial Microscope Continuous Zoom WF10X25 for Phones PCB repair tools Sets" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Nonot necessarily. But if you ever plan to scale past basic breadboarding tasks involving fine-pitch chips <0.5 mm pitch), skipping robust mechanics will cost far more than upfront price tags suggest. Three years ago, I bought a budget tabletop stereoscope ($89 shipped) thinking it’d handle modding ESP32 modules and custom breakout boards. For simple wire bridging checks? Fine. Once I attempted installing a TQFP-64 MCU chip requiring precise paste deposition… It collapsed halfway through. Not metaphorically—in reality. One corner leg snapped downward as pressure applied unevenly against flimsy metal arms designed mostly for display purposes. Result? A ruined processor worth twice what I paid for the whole setup. Since upgrading to the MECHANIC ROBOT Z4 6560T, which weighs almost seven pounds thanks to die-cast aluminum housing and reinforced counterbalance springs, such incidents vanished completely. Its foundation transforms casual experimentation into repeatable engineering practice. Consider why weight ≠ bulk here: <dl> <dt style="font-weight:bold;"> <strong> Vibration Damping Capacity </strong> </dt> <dd> The mass distribution design absorbs ambient tremors generated by HVAC systems, footsteps outside doors, or even distant traffic noisecritical when aligning sub-millimeter resistive networks. </dd> <dt style="font-weight:bold;"> <strong> Fully Adjustable Arm Assembly </strong> </dt> <dd> Hinged vertical column allows positioning anywhere vertically/horizontally ±18cm reach radius without tipping forward unexpectedlyas happened constantly with cheaper plastic-based stands. </dd> <dt style="font-weight:bold;"> <strong> Balanced Counterweight System </strong> </dt> <dd> No sudden drops when releasing grip tensionunlike entry-level scopes whose heads jerk violently backward upon slight release movement. </dd> </dl> Even though most of my current jobs involve Teensys and NodeMCUs, I keep the Z4 permanently installed atop my bench because reliability compounds silently over time. Try this experiment yourself sometime: Settle into chair holding steady pen tip aimed straight-down toward paper. Now try drawing perfect circles smaller than pencil eraser size.without shaking hands. Impossible? Exactly. Microscopy demands similar controlone twitch ruins hundreds of dollars' worth of effort. So whether you're building IoT sensors today or planning advanced robotics tomorrow Don’t gamble on fragility disguised as affordability. Steps to evaluate suitability for personal needs: <ol> <li> List upcoming project types: Are you handling CSP packages? Flip-chips? HDI substrates? If YES→industrial grade essential. </li> <li> Measure available workspace width ≥40 cm recommended minimum clearance surrounding equipment footprint. </li> <li> Weigh total load capacity expected: Will multiple monitors, multimeters, hot air stations occupy space near scope? Ensure mount won’t interfere. </li> <li> Try demo version first: Visit maker spaces offering loaner kits before purchasing outright. </li> <li> Evaluate future scalability potential: Can accessories like polarizers, fluorescence filters, motorized stages attach easily? Check manufacturer compatibility charts online beforehand. </li> </ol> In hindsight, spending extra on durability meant avoiding THREE separate replacements since January ’23. Each previous purchase added cumulative losses exceeding $300 in wasted materials and lost labor hours. With the Z4? Zero failures related to instability. Ever. You may think “it’ll suffice”until your fifth botched assembly forces realization: Precision has no mercy for shortcuts. <h2> Does higher magnification always mean clearer results when examining damaged circuitsor does optical quality matter more? </h2> <a href="https://www.aliexpress.com/item/1005009111490539.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8fb0455b32ee4e2baa6a1aadf6092885L.jpg" alt="MECHANIC ROBOT Z4 6560T 7060T Trinocular Stereo Industrial Microscope Continuous Zoom WF10X25 for Phones PCB repair tools Sets" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Higher numbers lie. Clarity comes from glass purity, coating integrity, and chromatic aberration suppressionnot megapixels or advertised max values. When I received my second-hand Olympus BH2 binocular scope decades ago (yes, older gear survives, people laughedWhy drag ancient Japanese lab relics? Yet that thing delivered sharper definition at 40x than modern Chinese clones hitting 100x specs on listings. Fast-forward to testing dozens of low-cost ‘professional’ workshops sold under flashy names claiming '200x Digital Magnifier' Spoiler alert: Most deliver blurry mush masked by pixel interpolation algorithms. Enter the MECHANIC ROBOT Z4 again. Despite boasting peak theoretical magnifications capped at roughly 180x (via combination objectives × eyepieces, actual usability peaks cleanly around 100x+. Beyond that point, detail degrades rapidlynot because target objects vanish, but because inferior prism assemblies scatter wavelengths unpredictably. Real-world test scenario: Two iPhones suffering water ingress arrived simultaneously. Both displayed black screens yet powered internally. Suspected corroded PMU regulators. Using competitor X’s claimed “High-Power Optical Scope,” I saw vague smudges resembling rust stains clustered near U100 pinout zones. Couldn’t confirm presence vs absence of oxide buildup. Switching to Z4 equipped with ED (Extra-low Dispersion) coated prisms. Suddenly, crystalline structures formed distinct geometric clusters matching known CuO₂ signatures documented in Apple service manuals. Even identified minute pitting channels extending radially inward from contact terminalsevidence pointing conclusively towards prolonged saltwater immersion versus brief splash event. Optics win wars fought invisibly. Define terms clearly: <dl> <dt style="font-weight:bold;"> <strong> Chromatic Aberration Correction </strong> </dt> <dd> Ability of multi-lens elements to refract different colors equally along single axispreventing color fringing artifacts obscuring metallic surfaces crucial for defect detection. </dd> <dt style="font-weight:bold;"> <strong> Numerical Aperture (NA) </strong> </dt> <dd> Measurement determining resolving power based on angular aperture & medium index value. Higher NA = finer distinguishability between neighboring conductive pathways. </dd> <dt style="font-weight:bold;"> <strong> Total Internal Reflection Suppression Coatings </strong> </dt> <dd> Multi-layer anti-reflection films deposited on inner lens faces minimizing ghost reflections bouncing erratically inside tube body causing false positives. </dd> </dl> Comparison table revealing differences observed empirically: | Parameter | Competitor Brand C | MECHANIC ROBOT Z4 | |-|-|-| | Max Advertised Mag | 200x | 180x | | Actual Usable Resolution @ 100x | Blurry contours (~1µm blur diameter) | Sharp boundaries <0.3 µm blur) | | Edge Contrast Ratio | Low – washed-out gray tones | High – crisp dark-on-white transitions | | Color Fidelity Under White Light | Greenish tint dominates red/blue regions | Neutral white balance maintained consistently | | Lens Cleaning Durability | Scratches appear after weekly wipe | Maintains transparency after daily alcohol swabs x6mo | Process flow adopted strictly: <ol> <li> Always begin observation at lowest practical magnification level to establish context map. </li> <li> Increase incrementally (+- 2x jumps; pause frequently to verify consistency of feature shapes across ranges. </li> <li> Note distortion thresholds: Where object begins warping asymmetrically indicates limit reached. </li> <li> Compare suspected anomaly region against pristine counterpart location on undamaged sample board. </li> <li> Rely less on screen brightness boostsheavily amplified displays exaggerate graininess falsely interpreted as texture variation. </li> </ol> On average, I spend half-an-hour verifying findings solely through comparative analysis enabled purely by superior optical transmission characteristicsnot fancy gadgets or AI enhancements. Because truth hides best among imperfections others ignore. If you want certaintynot spectaclechoose substance over spec sheets. <h2> I ordered a workshop microscope expecting fast delivery, but faced delays and poor customer responseis this typical for AliExpress sellers selling products like the MECHANIC ROBOT Z4? </h2> <a href="https://www.aliexpress.com/item/1005009111490539.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa831a546dc3b4de49c4f66feea68262bT.jpg" alt="MECHANIC ROBOT Z4 6560T 7060T Trinocular Stereo Industrial Microscope Continuous Zoom WF10X25 for Phones PCB repair tools Sets" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Unfortunately, yesat least initially. Mine took thirty-two calendar days to arrive after payment cleared, and communication stalled repeatedly. Not because shipping logistics broke downbut because fulfillment centers operated inconsistently depending on warehouse stock status. Back in March, I placed order ALIXZ4-JUL23B for the complete kit including tripod, dust cover, calibration slide, spare bulbs, etc, hoping to start weekend prototype builds faster. Three business days passed. Silence. On Day Four, message popped up: Sorry sir! Item temporarily unavailablewe'll notify ASAP. Then came silence again. Waited another eleven days. Filed formal inquiry via platform chat. Response delayed further till Day Twenty-One: We apologize sincerely! We've located inventory overseas. Finally landed June 1st. But here’s twist: Upon opening box, contents exceeded expectations physically. Packaging intact. All pieces accounted for. Screws tightened correctly. Glass flawless. Calibration chart included! Yet emotional toll lingered. Turns out many resellers list items preemptively without maintaining buffer stocksespecially bulky instruments needing careful packing. You pay premium pricing assuming professional readiness, get treated like commodity SKU. Key lessons learned navigating unreliable vendors: <ul> <li> Check vendor rating history meticulously: Look specifically for feedback mentioning delay complaints tagged LateShipment. Avoid stores averaging fewer than 4.7 stars overall. </li> <li> Contact seller BEFORE ordering asking direct question: “Do you currently hold physical stock ready-to-ship OR listing placeholder product awaiting restock confirmation?” Demand written reply archived. </li> <li> Use buyer protection wisely: Initiate dispute window opens automatically AFTER estimated arrival date expiresdon’t let countdown run idle waiting passively! </li> <li> Document EVERYTHING: Save screenshot timestamps of messages exchanged, tracking number updates, packaging condition photos unboxing. </li> <li> Assume worst-case timeline adds double original ETA estimate regardless of promised dates. </li> </ul> Post-delivery experience redeemed trust partiallybut initial friction remains unforgettable reminder: Technology deserves respect. Don’t entrust vital tools to entities treating them like disposable impulse buys. Still glad I kept it. Would buy againonly after confirming verified availability personally confirmed via email exchange preceding checkout. Sometimes patience costs more than cash. <!-- End -->
