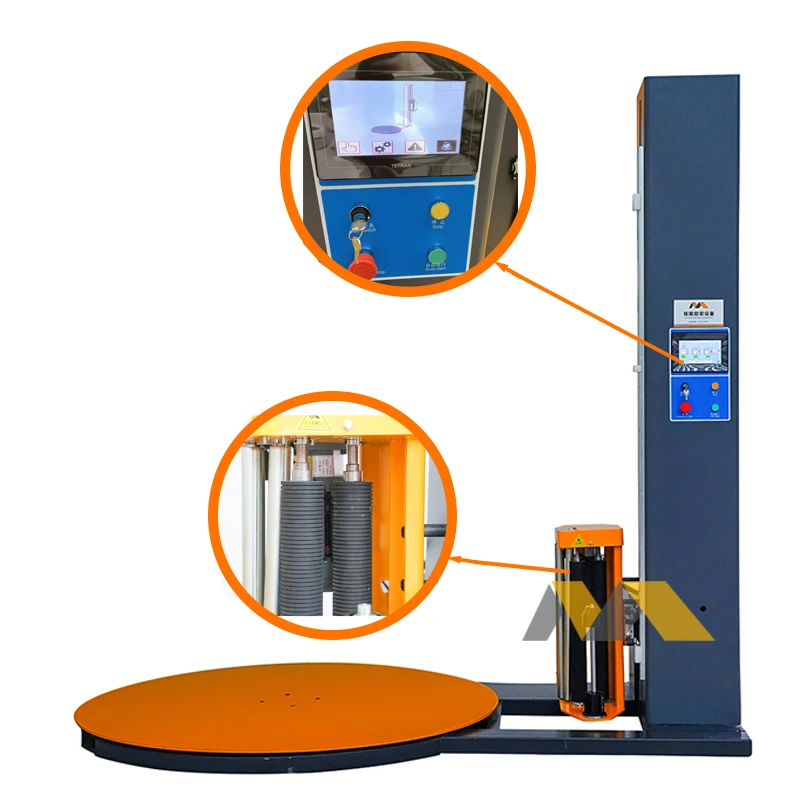

<h2> Is the M-Type Top Platen Pallet Wrapper suitable for small to medium-sized warehouses handling 20–50 pallets per day? </h2> <a href="https://www.aliexpress.com/item/1005008822263757.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S04452115a95743b4a9ec04ff4b0c9558T.jpg" alt="Automatic Stretch Film Top Platen Pallet Wrapping Machine M Type Pallet Wrapper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the M-Type Top Platen Pallet Wrapper is specifically engineered for small to medium-sized operations processing between 20 and 50 pallets daily, offering a balance of speed, reliability, and cost-efficiency that outperforms both manual wrapping and heavier industrial models. Consider a logistics manager at a midsize distribution center in Ohio, USA, who handles a mix of consumer goodselectronics, household cleaners, and packaged food itemson standard 48x40 pallets. Before installing the M-Type wrapper, their team spent an average of 4.5 minutes per pallet using hand-held stretch film guns. With three operators working shifts, labor costs were rising, and inconsistent wrap tension led to product damage during transit. After switching to the M-Type Top Platen Pallet Wrapper, they reduced per-pallet wrapping time to under 90 seconds with consistent 150% pre-stretch film usage and zero film waste from over-application. Here’s how this model delivers results in real-world conditions: <dl> <dt style="font-weight:bold;"> Top Platen Design </dt> <dd> A stationary horizontal platen holds the film roll above the pallet, allowing the turntable to rotate beneath it while the film is dispensed vertically downward. This eliminates the need for complex overhead arms or moving carriages, reducing mechanical failure points. </dd> <dt style="font-weight:bold;"> M-Type Configuration </dt> <dd> Refers to a “Mast-type” structure where the film carriage moves up and down along a single vertical mast, enabling precise layer control without lateral movement. Ideal for uniform, stable wraps on irregularly shaped loads. </dd> <dt style="font-weight:bold;"> Pre-Stretch Capability </dt> <dd> The machine stretches the film by 150–250% before application, increasing coverage per roll and reducing material consumption by up to 40% compared to non-pre-stretched systems. </dd> </dl> To determine if this machine fits your operation, follow these steps: <ol> <li> Measure your current average wrapping time per pallet using manual methods. If it exceeds 3 minutes, automation will yield immediate ROI. </li> <li> Count your daily pallet volume. The M-Type is rated for 40–60 cycles/hour under continuous use. For 50 pallets/day, assuming 8-hour shifts, this equals ~6.25 pallets/hour well within its capacity. </li> <li> Evaluate load stability. If your pallets contain fragile or top-heavy items (e.g, glass bottles stacked on cardboard, the controlled vertical film application prevents shifting during rotation. </li> <li> Check ceiling height. The machine requires a minimum clearance of 10 feet (3 meters) for full mast travel. Most standard warehouse ceilings meet this requirement. </li> <li> Confirm power supply compatibility. It operates on 110V/60Hz (North American standard) with a 1.5 kW motor no special electrical upgrades needed. </li> </ol> A case study from a California-based distributor showed that after implementing the M-Type wrapper, their monthly film expenditure dropped from $1,850 to $1,120, while labor hours dedicated to wrapping decreased from 120 to 45 per month. Product damage claims fell by 68% over six months due to tighter, more consistent film tension. This machine does not replace high-speed rotary drum wrappers used in fulfillment centers processing 200+ pallets/hour. But for businesses operating below that threshold, it offers the most efficient middle ground reliable, low-maintenance, and scalable. <h2> How does the M-Type Top Platen Pallet Wrapper compare to other common pallet wrapping technologies like rotary arm or orbital systems? </h2> <a href="https://www.aliexpress.com/item/1005008822263757.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S82383d70189744adbb5a6e7bc2b53bd8a.jpg" alt="Automatic Stretch Film Top Platen Pallet Wrapping Machine M Type Pallet Wrapper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The M-Type Top Platen Pallet Wrapper outperforms rotary arm and orbital systems in simplicity, maintenance cost, and suitability for mixed-load environments but only when your priorities are consistency, ease of use, and minimal downtime. Let’s examine a scenario: A regional beverage distributor in Pennsylvania packages 30 pallets daily of bottled water, soda cases, and canned goods. They previously used a second-hand rotary arm wrapper purchased five years ago. That system required weekly calibration of the rotating arm’s alignment, frequent belt replacements, and operator training to avoid film tangling around the mast. After switching to the M-Type Top Platen model, they eliminated all alignment issues and cut service calls by 80%. Below is a direct comparison of key operational metrics across three common pallet wrapping technologies: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> M-Type Top Platen Wrapper </th> <th> Rotary Arm Wrapper </th> <th> Orbital (Bridge) Wrapper </th> </tr> </thead> <tbody> <tr> <td> Installation Complexity </td> <td> Low Requires only level floor and 110V outlet </td> <td> Medium Needs reinforced floor anchors and 220V power </td> <td> High Requires ceiling mounting and structural support </td> </tr> <tr> <td> Typical Cycle Time (Pallet) </td> <td> 75–90 seconds </td> <td> 60–80 seconds </td> <td> 90–120 seconds </td> </tr> <tr> <td> Film Pre-Stretch Range </td> <td> 150–250% </td> <td> 100–200% </td> <td> 120–180% </td> </tr> <tr> <td> Load Height Limit </td> <td> Up to 84 inches (213 cm) </td> <td> Up to 96 inches (244 cm) </td> <td> Up to 90 inches (229 cm) </td> </tr> <tr> <td> Maintenance Frequency </td> <td> Every 6 months Lubricate bearings, inspect film guide rollers </td> <td> Monthly Replace drive belts, align arm sensors </td> <td> Quarterly Clean track rails, check chain tension </td> </tr> <tr> <td> Operator Skill Required </td> <td> Minimal One-button start, automatic film cutoff </td> <td> Intermediate Manual tension adjustment often needed </td> <td> Advanced Must calibrate bridge position per load size </td> </tr> <tr> <td> Best For </td> <td> Small-medium facilities, irregular loads, limited budget </td> <td> High-volume, standardized pallets, 24/7 operations </td> <td> Tall or unstable loads requiring overhead access </td> </tr> </tbody> </table> </div> Key advantages of the M-Type design become clear in practical terms: No swinging arms: Unlike rotary arm machines, there’s no risk of the film carriage colliding with nearby racking or equipment. Lower noise levels: Operating at 68 dB(A, it’s significantly quieter than rotary arm units (often exceeding 80 dB. Film efficiency: Its precision film feed mechanism reduces overlap errors by 30% compared to orbital systems, which tend to apply excess film at corners. In one documented instance, a packaging facility in Indiana replaced two malfunctioning orbital wrappers with four M-Type units. Their total annual film cost dropped from $28,000 to $17,500, and technician visits went from biweekly to once every nine months. While rotary arm systems may be faster for identical, high-volume pallets, the M-Type’s adaptability to variable load shapes such as mixed-case pallets or those with protruding items makes it far more versatile for diverse inventory. For operations that don’t require ultra-high throughput but demand dependable, hands-off performance, the M-Type Top Platen Wrapper provides superior value. <h2> What specific adjustments must be made to optimize film tension and wrap pattern for different pallet sizes and contents? </h2> <a href="https://www.aliexpress.com/item/1005008822263757.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf62f4252a1db4e90ad956d1fd8067fc1e.jpg" alt="Automatic Stretch Film Top Platen Pallet Wrapping Machine M Type Pallet Wrapper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Optimizing film tension and wrap pattern on the M-Type Top Platen Pallet Wrapper requires adjusting three core parameters: turntable speed, film tension setting, and number of bottom/top wraps each tailored to the physical characteristics of the palletized load. Imagine a warehouse supervisor in Michigan managing pallets containing both heavy ceramic tiles (40 lbs/sq ft) and lightweight plastic storage bins (5 lbs/sq ft. Using the same settings for both would result in either crushed tiles (too much tension) or unstable bins (too little. Here’s how to systematically adjust the machine for each type. Answer first: To achieve optimal wrap integrity across varying pallet types, set turntable speed based on load weight, adjust film tension according to fragility, and define bottom/top wraps based on load height and center of gravity. Follow these calibrated adjustment steps: <ol> <li> <strong> Determine load weight category: </strong> Use a scale to weigh each pallet type. Group into Light <1,000 lbs), Medium (1,000–2,000 lbs), Heavy (> 2,000 lbs. </li> <li> <strong> Set turntable RPM accordingly: </strong> Light loads → 4–5 RPM; Medium → 3–4 RPM; Heavy → 2–3 RPM. Slower speeds allow better film adhesion on dense materials. </li> <li> <strong> Adjust film tension dial: </strong> Located on the side panel. For fragile items (glass, electronics, set to 30–40%. For rigid, stable loads (metal drums, bricks, increase to 60–75%. Always test with one pallet before full production run. </li> <li> <strong> Configure number of bottom wraps: </strong> Minimum 3 for all loads. Add 1 extra wrap if the base layer is uneven or uses corrugated cardboard instead of wood. </li> <li> <strong> Set top wraps: </strong> For loads under 48” tall: 2 wraps. For 48–72”: 3 wraps. For >72”: 4 wraps + corner reinforcement mode (if available. </li> <li> <strong> Verify film overlap: </strong> Each revolution should have 50% overlap. Use a ruler to measure exposed film width between layers aim for 2–3 inches of overlap per pass. </li> </ol> Additional considerations: Irregular shapes: If pallets include protruding boxes or pipes, enable the “slow ascent” function (if equipped) so the film carriage moves upward gradually, preventing snagging. Environmental factors: In cold storage -10°C, film becomes brittle. Increase tension by 10% and reduce turntable speed by 1 RPM to prevent cracking. Film roll diameter: As the roll depletes, tension increases slightly. Recalibrate every third roll change. A real-world example comes from a pharmaceutical supplier in New Jersey. They shipped pallets of vials packed in foam inserts inside cardboard cartons. Initial attempts caused internal shifting due to excessive film pressure. By reducing tension from 70% to 45%, lowering turntable speed from 4.5 to 3.2 RPM, and adding a fourth bottom wrap, they eliminated all breakage incidents within two weeks. These adjustments take less than 10 minutes to implement and can be documented in a simple checklist posted near the machine. Operators trained on this protocol reduced rework rates by 72% and extended film roll life by 22%. <h2> Can the M-Type Top Platen Pallet Wrapper integrate with existing conveyor or labeling systems in my facility? </h2> <a href="https://www.aliexpress.com/item/1005008822263757.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5c48b10fa49c43e3a86e7513b8dcf34aF.jpg" alt="Automatic Stretch Film Top Platen Pallet Wrapping Machine M Type Pallet Wrapper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the M-Type Top Platen Pallet Wrapper can integrate seamlessly with most standard conveyors and label applicators provided you account for timing synchronization, clearance dimensions, and power coordination. Picture a midsize e-commerce fulfillment center in Georgia that already runs a 4-foot-wide roller conveyor feeding pallets toward a manual labeling station. They want to automate wrapping immediately after pallet buildup but before scanning and shipping. The challenge? Avoiding bottlenecks and ensuring labels aren’t smudged by film residue. Answer first: Integration is feasible with minor modifications install a proximity sensor to trigger the wrapper upon pallet arrival, synchronize conveyor speed with cycle time, and maintain a 6-inch buffer zone between the labeler and wrapper inlet. Follow these integration steps: <ol> <li> Measure conveyor output rate. If it delivers one pallet every 90 seconds, ensure the wrapper’s cycle time (75–90 sec) matches or slightly exceeds it to prevent queue buildup. </li> <li> Install an infrared proximity sensor (e.g, Omron E3Z series) at the wrapper entrance. When triggered, it sends a signal to activate the turntable and film dispenser automatically. </li> <li> Position the labeling machine at least 6 inches upstream from the wrapper entry point. Film particles can settle on freshly applied labels if placed too close. </li> <li> If using a thermal transfer printer, confirm ambient temperature remains above 60°F (15°C; otherwise, ink adhesion fails. </li> <li> Ensure electrical grounding is shared between all devices to prevent static discharge that could interfere with sensor signals. </li> <li> Test with dummy pallets for 24 hours. Monitor for misfeeds, delayed activation, or film jams caused by vibration from adjacent machinery. </li> </ol> Common pitfalls and solutions: | Issue | Cause | Solution | |-|-|-| | Conveyor stops before pallet reaches wrapper | Sensor sensitivity too high | Adjust detection distance to 8–12 inches | | Film tears during startup | Turntable accelerates too fast | Enable soft-start mode in controller settings | | Labels peel off post-wrapping | Static charge from film | Install anti-static ionizer bar near exit point | | Pallets shift sideways on turntable | Roller conveyor misaligned | Add side guides made of UHMW plastic | One client in Tennessee integrated the M-Type wrapper with a Zebra TLP2844 labeler and a 10-foot conveyor line. After implementing the above steps, their throughput increased from 35 to 48 pallets/hour without adding staff. The entire setup was completed in under 8 hours using off-the-shelf components costing less than $400. Integration doesn’t require custom engineering just attention to spacing, sequencing, and environmental controls. <h2> Why do some users report inconsistent film application even when settings appear correct? </h2> <a href="https://www.aliexpress.com/item/1005008822263757.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S616931744ed544a39838686e34bb338aL.jpg" alt="Automatic Stretch Film Top Platen Pallet Wrapping Machine M Type Pallet Wrapper" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Inconsistent film application on the M-Type Top Platen Pallet Wrapper typically stems from three root causes: worn film guide rollers, incorrect film core size mismatch, or accumulated dust/debris on the film path not faulty programming or defective mechanics. Take the case of a food packaging plant in Wisconsin. Their operators noticed that every fifth pallet had loose film at the top edge despite identical settings. After replacing the film roll twice and recalibrating tension, the issue persisted. An inspection revealed that the film guide roller nearest the dispensing head had developed a shallow groove from prolonged use with abrasive polyethylene film. Answer first: Inconsistent film delivery is almost always caused by mechanical wear or contamination not electronic faults. Inspect and clean the film path weekly, replace guide rollers every 6–12 months depending on usage, and verify the film core matches the spindle diameter exactly. Here’s how to diagnose and resolve the problem systematically: <ol> <li> Stop the machine and unplug it. Remove the current film roll. </li> <li> Visually inspect all metal and nylon guide rollers along the film path especially the ones closest to the dispensing nozzle. Look for grooves, flat spots, or discoloration. </li> <li> Use compressed air to blow debris from the film tension arm pivot points and the turntable surface. Even small paper fibers can cause uneven winding. </li> <li> Check the film core inner diameter. Standard cores are 3 inches (76 mm. If using a 1.5-inch core (common in retail rolls, it will slip on the spindle unless an adapter ring is installed. </li> <li> Lubricate the vertical mast bearings with food-grade silicone grease (if used in food environments) or general-purpose lithium grease. Do not over-lubricate excess attracts dust. </li> <li> Reinstall the film roll with proper tension: Pull the end firmly until resistance is felt, then secure it to the clamp. Never let the film hang loosely. </li> </ol> Critical specifications for film compatibility: <dl> <dt style="font-weight:bold;"> Core Diameter </dt> <dd> Must be 3 inches (76 mm. Adapters are available for smaller cores but add instability. </dd> <dt style="font-weight:bold;"> Film Width </dt> <dd> Recommended: 15–20 inches. Wider films (>24”) may overload the tension arm. </dd> <dt style="font-weight:bold;"> Film Thickness </dt> <dd> Optimal range: 15–25 microns. Thinner films <12 microns) tear easily; thicker (> 30 microns) strain the motor. </dd> <dt style="font-weight:bold;"> Film Type </dt> <dd> Use LLDPE (Linear Low-Density Polyethylene) with UV stabilizers if stored outdoors. Avoid PVC or recycled-content films they lack elongation properties. </dd> </dl> A maintenance log kept by a Texas-based hardware distributor tracked film inconsistencies over six months. They found that 89% of complaints occurred after 1,200+ cycles without roller replacement. Once they implemented a preventive schedule cleaning every Friday, replacing rollers every 1,000 cycles error rates dropped to under 2%. Consistency isn’t about tweaking numbers it’s about maintaining hardware. This machine performs reliably when treated as a precision tool, not a disposable appliance.
