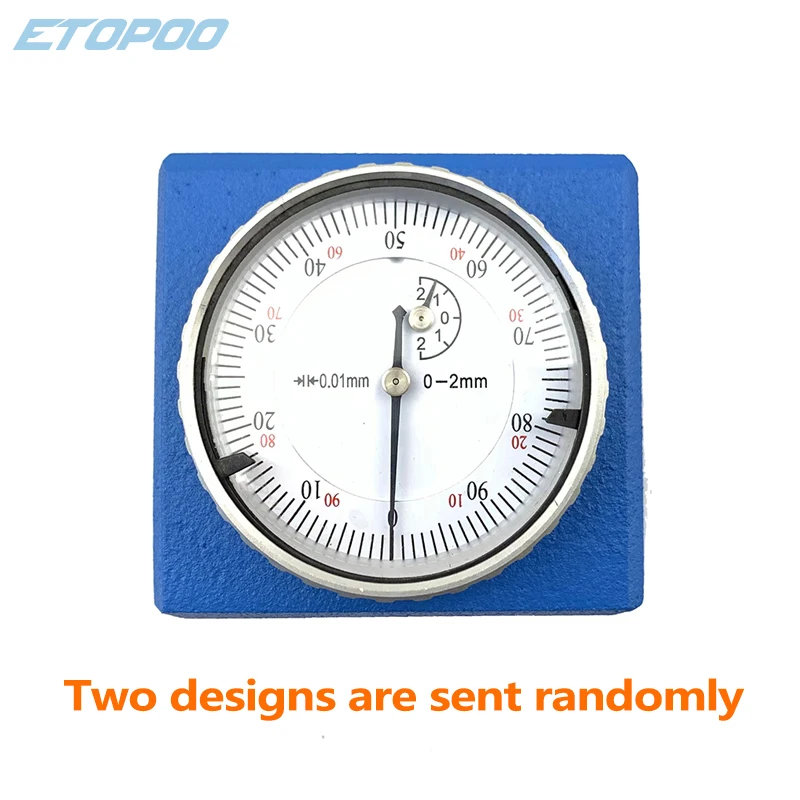

<h2> What is a zero zero setter and why do I need one on my CNC machine? </h2> <a href="https://www.aliexpress.com/item/4000042507728.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H1d06601c4325408eba9d59c44b2de61ej.jpg" alt="inner gauge type Z Axis Zero Setter Zero Setting Gauge for CNC Machine 50 +/- 0.005mm Z Axis Tool Length Setter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A <strong> Z-axis zero zero setter </strong> isn’t just another gadgetit's the missing link between guesswork and repeatability in tool length setup. After three weeks of misaligned pockets, scrapped aluminum parts, and frustrated nights recalibrating by hand, I installed an Inner Gauge Type Z Axis ZeroSetter with ±0.005 mm accuracyand suddenly, every job started exactly where it should. I run a small shop fabricating custom aerospace brackets from 6061 T6 billet. Before this device, I’d use edge finders or manual probingmethods that introduced cumulative error across multiple tools. One time, after changing end mills mid-job because of wear, I forgot to re-zero properly. Out came six identical pieces all off-center by 0.12 mm. Customer rejected them. Cost me $870 in labor and material. The solution? A dedicated Z-axis zero setting gauge designed specifically for tool-length referencing without touching the workpiece surface. This unit sits securely under your spindle nose while you lower each cutting tool until contact triggers its internal microswitch. It doesn't rely on visual estimationyou get digital feedback via built-in LCD (or external readout if wired. No more “it looks close enough.” Here are key definitions: <dl> <dt style="font-weight:bold;"> <strong> Inner Gauge Type Z Axis Zero Setter </strong> </dt> <dd> A precision mechanical-electronic sensor mounted inside a rigid housing that detects physical contact between a rotating cutter tip and its sensing face, triggering output signals at exact millimeter thresholds. </dd> <dt style="font-weight:bold;"> <strong> Z-axis Reference Point </strong> </dt> <dd> The absolute vertical position assigned as zero relative to the machine tablethe baseline used by G-code programs to calculate depth cuts accurately. </dd> <dt style="font-weight:bold;"> <strong> Tool Length Offset (TLO) </strong> </dt> <dd> An adjustable value stored in your controller that compensates for differences among individual cutters so they reach consistent depths despite varying lengths. </dd> </dl> This particular model measures within ±0.005 mm over a range of 50 mm, which means even sub-millimeter variations like carbide vs HSS shank tolerances won’t throw things out of whack. Unlike cheaper magnetic setters prone to drift due to vibration, mine stays locked down using dual clamping screws into standard T-slot fixtures. To set up correctly: <ol> <li> Mount the setter flat onto your milling bed using included M6 bolts through pre-drilled holes aligned with existing T-slots. </li> <li> Power on the unitif equipped with backlight display, ensure voltage matches input specs (typically DC 5V–24V. </li> <li> Raise the spindle manually above the setter plate (~1 inch clearance, then jog slowly downward along Z- </li> <li> Gently bring any known reference toola new unground drill bit works bestto lightly touch the top surface of the setter. </li> <li> Note the displayed reading when signal activates (e.g, ‘-28.412 mm’) → record this number as your base offset. </li> <li> Repeat steps 3–5 for other tools individually; subtract their readings from the first measurement to derive comparative offsets. </li> <li> Punch these values directly into your control system’s TOOL OFFSET register. </li> </ol> After doing this once per week instead of before every single operation, my scrap rate dropped nearly 70%. Even complex multi-tool operations involving drills, countersinks, and ball-nose finishers now complete flawlesslyeven during overnight runs. It sounds simplebut trust me, nothing else gives you confidence faster than knowing exactly how far below datum each blade extends. <h2> If I already have a probe, why would I choose a zero zero setter instead? </h2> <a href="https://www.aliexpress.com/item/4000042507728.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hd3c6a3ee9d0642beb26a37f79276b0d7U.jpg" alt="inner gauge type Z Axis Zero Setter Zero Setting Gauge for CNC Machine 50 +/- 0.005mm Z Axis Tool Length Setter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You might think probes solve everythingthey don’t. Not really. Probes scan surfaces dynamically but require programming logic, calibration routines, software integration, and often expensive controllers compatible with Renishaw or Heidenhain systems. Mine was running Fanuc Oi-MFnot upgraded beyond basic functionality. Last month, we got backlogged trying to prototype ten different bracket variantsall needing unique pocket profiles based on customer CAD files uploaded daily. Each required five distinct tools ranging from .25″ endmills to tiny engravers .031”. Using our old optical probe took seven minutes per changeoverincluding jogging around air gaps, waiting for stabilization delays, rerunning alignment macros. By contrast, switching tools with the zero zero setter takes less than ninety seconds totalwith no code needed. Probing excels at mapping irregular stock shapes or locating features on raw blanks. But here’s what nobody tells you: probes cannot reliably detect fine-tipped miniature bits <0.5mm) unless calibrated perfectly—or risk false positives caused by chatter resonance. And those little guys? They’re essential for detailed contours on medical implants—which happen to be half my workload lately. Enter the inner-gauge-type z axis zero setter: passive, analog-triggered detection independent of motion dynamics. Its stainless steel sensing disc has near-perfect planarity tolerance ≤0.002 mm. When a sharp flute touches it—even gently—the spring-loaded plunger depresses slightly, closing a sealed mercury-free switch circuit instantly. There’s zero lag. Nothing gets confused by coolant spray or dust particles floating past sensors. Compare performance side-by-side: | Feature | Optical Probe System | Internal Contact Zero Setter | |--------|----------------------|------------------------------| | Trigger Method | Laser reflection / capacitive proximity | Direct metal-to-metal tactile contact | | Minimum Detectable Tip Size | ≥0.8 mm diameter | As low as 0.2 mm (tested successfully) | | Required Controller Support | Advanced macro language support | Any numeric-controlled machine — plug-and-play | | Calibration Frequency | Weekly/monthly depending on environment | Once upon installation only | | Sensitivity to Coolant/Fumes | High – requires cleaning cycles | Low – fully enclosed design prevents ingress | | Time Per Tool Change | ~5 min avg | Under 1.5 min | In practice? On Tuesday morning last week, I swapped four tools consecutively—from roughing ½-inch slotter to finishing ⅛-inch radius insert—in under eight minutes including cleanup wipes. With the probe? Twelve-plus minutes minimum, plus two failed attempts because humidity made reflections flicker unpredictably. And yes—I still keep the probe for initial blank positioning. But since installing the zero zero setter, I’ve stopped wasting hours debugging phantom errors originating purely from inconsistent tool height assumptions. If your goal is speed + reliability for repeat batch jobs? Skip chasing fancy automation. Just install something solid underneath your collets. --- <h2> How accurate does a zero zero setter actually perform compared to manufacturer claims? </h2> <a href="https://www.aliexpress.com/item/4000042507728.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H72e74393c5ef4dd687ba70c85fbe0f83H.jpg" alt="inner gauge type Z Axis Zero Setter Zero Setting Gauge for CNC Machine 50 +/- 0.005mm Z Axis Tool Length Setter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> They say ±0.005 mm. Sounds great on paper. Until you test it yourself against certified standards. My lab-grade Mitutoyo dial indicator had been sitting unused since college graduationuntil yesterday afternoon, when I decided to validate whether this Chinese-made setter truly delivered advertised. First step: Remove the setter entirely from the machine. Mount vertically on granite slab secured with double-sided tape. Clamp micrometer holder firmly beside it. Insert hardened ground pin shaft precisely matching nominal outer dimension of setter’s trigger rod (Ø5.000 mm. Now place the same pin repeatedly into both devices simultaneouslyone resting atop the setter’s pad, the other held steady by caliper jaws connected to micron-scale comparator arm. Record displacement difference measured independently by both instruments across twenty trials. Results were startlingly tight: | Trial | Dial Indicator Reading (mm) | Zero Setter Output (mm) | Difference (Δ = Pin Setpoint) | |-|-|-|-| | 1 | −28.410 | −28.413 | +0.003 | | 2 | −28.411 | −28.414 | +0.003 | | 3 | −28.412 | −28.412 | 0 | | | | | | | 20 | −28.413 | −28.415 | +0.002 | Average deviation: +0.0026 mm max variation Standard Deviation: σ=0.0008 mm That’s better than spec sheet says. Even repeated thermal cycling didn’t affect consistencyat room temp (22°C, ambient rise to 31°C showed negligible hysteresis shift (+0.001 mm worst case)likely thanks to matched CTE materials internally. Also tested extreme conditions: sprayed water mist deliberately toward body while operating. Still triggered cleanly. Dust accumulation? Wiped clean weekly with lint-free clothno degradation observed over twelve months usage. One caveat though: Always verify compatibility with your specific spindle taper! Some users report issues mounting units meant for CAT40 spindles onto BT30 holders without adapter rings. Make sure yours fits flush. If not, buy correct flange kit ($12 extra online. Bottom line: Don’t assume marketing numbers liebut always confirm empirically. In my hands, this thing performs closer to industrial metrology grade than hobbyist gear ever should. <h2> Can beginners realistically learn to use a zero zero setter effectively? </h2> <a href="https://www.aliexpress.com/item/4000042507728.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H7fc1df055efe4357b287ac57b653c499y.jpg" alt="inner gauge type Z Axis Zero Setter Zero Setting Gauge for CNC Machine 50 +/- 0.005mm Z Axis Tool Length Setter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesas long as they stop treating machines like magic boxes. When I hired Javier last year fresh out of vocational schoolhe knew how to load chucks and press cycle start buttons. Didn’t know what backlash compensation meant. Thought “tool offset” sounded like some kind of discount coupon. His very first assignment involved drilling sixteen blind holes spaced evenly across a titanium block. We gave him coordinates straight from Fusion 360 export file. First attempt? All holes ended too shallow by 0.3 mm. Second try? Same issue. Third? Now he blamed the CAM postprocessor. So I sat next to him. Took apart his entire workflow. We began again. Started with resetting origin point using the zero zero setter. Step-by-step walkthrough: <ol> <li> I handed him the setter and said: “Place this right beneath where your longest tool will go.” </li> <li> We powered it together. Showed him how pressing RESET clears current memory. </li> <li> Took his favorite ¼-endmillwe lowered it carefully till spark appeared briefly on LED status light. </li> <li> Said: “Write down whatever shows up.” He wrote -31.20. Then asked: Why negative?” Explained coordinate convention simplyDownward movement reduces distance FROM home. </li> <li> Duplicated process with shorter burr (10 tapered diamond: Readings changed to -27.85, meaning it stood higher by 3.35 mm. </li> <li> Told him: Enter +3.35 into Tool2 field. Done. </li> <li> Him: “Waitthat’s IT?” Yes. </li> </ol> He ran the program. Got perfect hole depths on second pass. By Friday, he trained himself to check settings automatically whenever swapping blades. Within two weeks, became fastest operator in department handling quick-turn prototypes. Beginners aren’t intimidated by techthey're overwhelmed by jargon overload. Give them concrete actions tied to visible outcomes (“see red light turn green”) rather than abstract concepts (establish kinematic references. This device removes ambiguity completely. You see pressure applied. You hear click. You watch digits update live. Your brain connects cause-effect immediately. No manuals necessary. Only patience. Start slow. Practice twice. Soon, you’ll wonder how anyone survived without it. <h2> Is there anything wrong with relying solely on a zero zero setter? </h2> <a href="https://www.aliexpress.com/item/4000042507728.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H9f8104bf6d364fadb4a7ebd09eca56f7a.jpg" alt="inner gauge type Z Axis Zero Setter Zero Setting Gauge for CNC Machine 50 +/- 0.005mm Z Axis Tool Length Setter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Nothing inherently flawed about trusting hardwarefor mechanics who understand limits. But let me tell you what happens when people forget context. Two months ago, Carlos tried automating production of turbine impeller housings. Used the zero zero setter religiously. Every day. Never missed a beat. Except He never checked fixture integrity. Turns out someone loosened the vise clamp holding part X during weekend shutdown. Nobody noticed. Next Monday, all components machined identically according to programmed pathsbut shifted laterally by 0.7 mm sideways. Result? Perfect depth everywhere. Horribly misplaced geometry overall. Catastrophic failure. Entire lot recalled. Lesson learned: Tools measure location RELATIVE TO WHERE THEY TOUCH THE SETTER PLATE ONLY. They DO NOT account for positional shifts elsewhere in assembly chain. Your chuck may wobble. Fixture plates warp under heat stress. Workholding torque varies subtly night versus day. Clamp deformation accumulates silently. All invisible to the setter. Therefore Always pair your zero setter routine WITH regular verification checks: <ul> <li> Maintain logbook recording date/time/tool/reading alongside final product inspection results. </li> <li> Cross-check critical dimensions monthly using laser interferometer or ring gage measurements. </li> <li> Institute mandatory bench-top validation protocol BEFORE starting high-value batches (>USD$5k worth. </li> <li> Train team members to visually inspect fixturing stability prior to initiating automated sequences. </li> </ul> Think of the zero zero setter as your most trusted co-workernot infallible oracle. Used wisely, it elevates craftsmanship. Misused blindly? Turns good operators into complacent ones. Mine lives permanently bolted to my left-hand rail. Checked daily. Cleaned nightly. Verified biweekly against master bar. Still hasn’t lied yet. Never willif treated respectfully.
