What is the DHT22 Sensor and How Does It Work?
The
DHT22 sensor is a digital temperature and humidity sensor that provides accurate readings for both parameters in a compact and cost-effective package. It is widely used in weather stations, home automation systems, and industrial monitoring applications. To understand the
DHT22, it's important to define some key terms:
- DHT22
- A digital sensor that measures both temperature and relative humidity with high accuracy.
- Humidity
- The amount of water vapor present in the air, usually expressed as a percentage.
- Temperature
- A measure of the average kinetic energy of the particles in a substance, typically measured in degrees Celsius or Fahrenheit.
The DHT22 works by using a capacitive humidity sensing element and a thermistor for temperature measurement. The sensor outputs a digital signal, which makes it easy to interface with microcontrollers like Arduino or Raspberry Pi. Here’s how to use the DHT22 in a basic project:
- Connect the DHT22 to a microcontroller using three wires: VCC, GND, and data.
- Install the appropriate library for the DHT22 (e.g., Adafruit DHT library for Arduino).
- Write a simple sketch to read and display the temperature and humidity values.
The DHT22 is a reliable and accurate sensor, making it a popular choice for both hobbyists and professionals.
How to Choose the Best DHT22 Module for Your Project?
When selecting a

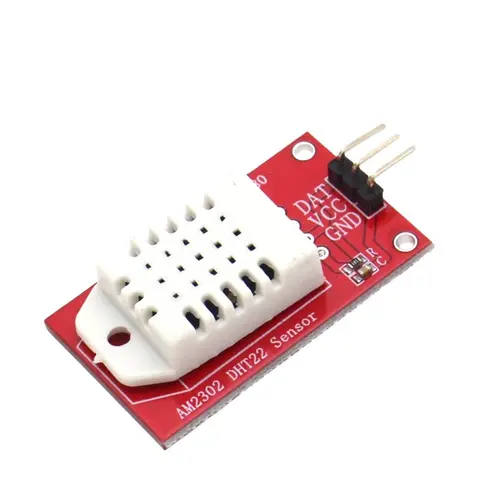

DHT22 module, it's important to consider factors such as accuracy, response time, and compatibility with your microcontroller. The DHT22 is often sold as a module, which includes the sensor and a small breakout board with labeled pins. Here’s a comparison of some common DHT22 modules:
| Module | Accuracy (Temperature) | Accuracy (Humidity) | Response Time | Price Range |
| DHT22 Standard Module | ±0.5°C | ±2% RH | 1-2 seconds | $2 - $5 |
| DHT22 with Pull-up Resistor | ±0.5°C | ±2% RH | 1-2 seconds | $3 - $6 |
| DHT22 with I2C Interface | ±0.5°C | ±2% RH | 1-2 seconds | $5 - $8 |
When choosing a module, consider the following: - Accuracy: The DHT22 is known for its high accuracy, but some modules may include additional components that affect performance. - Compatibility: Ensure the module is compatible with your microcontroller and development environment. - Price: While the DHT22 is generally affordable, prices can vary depending on the module's features. For most projects, the standard DHT22 module is sufficient. However, if you need a more convenient interface, consider modules with I2C or SPI support.
What Are the Common Issues with the DHT22 and How to Fix Them?
One of the most common issues with the DHT22 sensor is incorrect readings due to improper wiring or environmental factors. Another issue is the sensor not responding at all, which can be caused by a faulty module or incorrect code. Here are some troubleshooting steps:
- Check the wiring: Ensure the VCC, GND, and data pins are correctly connected.
- Use a pull-up resistor: The DHT22 requires a pull-up resistor (typically 4.7kΩ) on the data line to function properly.
- Verify the code: Make sure the code is using the correct pin and library for the DHT22.
- Test in a controlled environment: Place the sensor in a stable environment to rule out external factors affecting the readings.
If the sensor still doesn't work, it may be defective. In that case, try replacing the module with a new one. Environmental factors such as high humidity or extreme temperatures can also affect the DHT22's performance. To minimize these effects, place the sensor in a well-ventilated area and avoid direct exposure to heat sources.
User Reviews of DHT22 Sensor Modules
The DHT22 sensor has received positive feedback from users for its accuracy and ease of use. Many hobbyists and professionals have successfully integrated the DHT22 into their projects, from simple weather stations to complex environmental monitoring systems. Some common user comments include: - The DHT22 is very accurate and reliable for my home weather station. - Easy to use with Arduino. Just plug it in and start reading data. - The sensor works well in a variety of environments, but I had to add a pull-up resistor for stable readings. Users also mention that the DHT22 is a good alternative to the DHT11, which is less accurate and has a slower response time. The DHT22 is often compared to the
DHT122,
DHT22 shield, and DHT22 module, but the DHT22 remains the most popular due to its balance of performance and cost.
Other Sensors and Modules Related to the DHT22

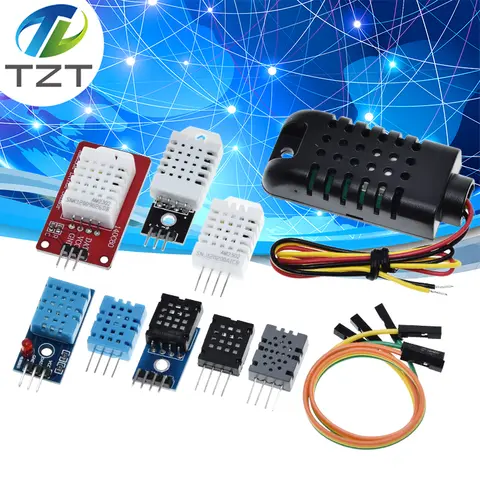

If you're working with the DHT22, you may also encounter related sensors and modules such as the DHT11,
DHT122,
DHT22 shield, and DHT22 module. These sensors vary in accuracy, price, and application. The DHT11 is a lower-cost alternative to the DHT22, but it is less accurate and has a slower response time. The DHT122 is a newer version of the DHT22 with improved performance, but it is not as widely available. The DHT22 shield is a pre-built module that makes it easy to connect the DHT22 to a microcontroller. It often includes a pull-up resistor and labeled pins for convenience. Other related terms include
DHT22 datasheet, DHT22 sensor, DHT22 shield, DHT22 module, DHT22 shield, DHT22 sensor,
DHT22 datasheet,
DHT11 22, DHT2,
DW22,
DHT2302, and
DH 22. These terms are often used interchangeably, but they refer to different versions or accessories of the DHT22 sensor. In summary, the DHT22 is a versatile and accurate sensor that is widely used in a variety of applications. Whether you're building a weather station or monitoring environmental conditions, the DHT22 is a reliable choice.
