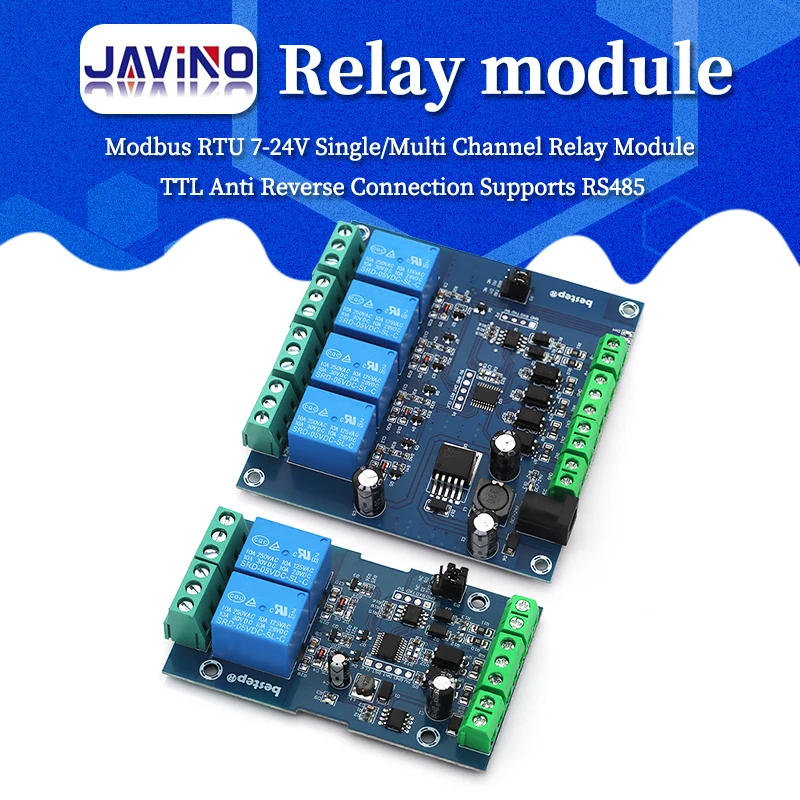

<h2> What Is the Best Way to Integrate a Modbus RTU Relay Module into an Existing PLC System? </h2> <a href="https://www.aliexpress.com/item/1005008887901142.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3df41af57c4d475dad239f616a4744b8x.jpg" alt="Modbus RTU Relay Module 1 2 4 Channel 7-24V RS485 TTL UART Output 12V Input 485 Communication TTL Pin Modbus-Rtu Anti-reverse" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The most reliable way to integrate a Modbus RTU Relay Module into an existing PLC system is by using a dedicated RS485-to-TTL converter with proper termination and grounding, ensuring signal integrity and minimizing communication errorsespecially in noisy industrial environments. I recently worked on a small-scale water treatment plant automation project where I needed to control four solenoid valves remotely using a Siemens S7-1200 PLC. The existing control panel already had a Modbus RTU network for sensors and actuators, but the valves were controlled via hardwired relays, which made maintenance difficult. I decided to replace them with Modbus RTU Relay Modules to enable remote control and monitoring. Before installation, I reviewed the module’s specifications and confirmed compatibility with the PLC’s communication protocol. The module supports Modbus RTU over RS485, which is standard in industrial PLCs. However, I noticed that the module uses TTL-level signals internally, not RS485, so direct connection to the PLC’s RS485 port wasn’t possible without a level converter. Here’s how I successfully integrated it: <ol> <li> Selected a high-quality RS485-to-TTL converter (MAX485-based) with isolation and EMI filtering. </li> <li> Connected the converter’s RS485 side to the PLC’s Modbus RTU port using shielded twisted-pair cable. </li> <li> Connected the TTL side to the relay module’s RX/TX pins, ensuring correct polarity. </li> <li> Installed a 120Ω termination resistor across the RS485 lines at the farthest node (PLC end. </li> <li> Set the relay module’s baud rate, parity, and slave ID via DIP switches to match the PLC’s configuration. </li> <li> Used a 12V DC power supply with a common ground between the PLC, converter, and relay module. </li> <li> Tested communication using a Modbus RTU tester (QModMaster) before connecting the valves. </li> </ol> <dl> <dt style="font-weight:bold;"> <strong> Modbus RTU </strong> </dt> <dd> Modbus RTU is a serial communication protocol that uses binary encoding over RS485 or RS232. It is widely used in industrial automation for its simplicity, reliability, and low overhead. </dd> <dt style="font-weight:bold;"> <strong> RS485 </strong> </dt> <dd> RS485 is a standard for differential signaling that allows long-distance, multi-node communication in electrically noisy environments. It supports up to 32 devices on a single bus. </dd> <dt style="font-weight:bold;"> <strong> TTL </strong> </dt> <dd> Transistor-Transistor Logic (TTL) is a digital logic family that operates at 0V (LOW) and 5V (HIGH. Many microcontrollers and modules use TTL-level signals, which are incompatible with RS485 without conversion. </dd> </dl> Below is a comparison of common integration methods: <table> <thead> <tr> <th> Integration Method </th> <th> Signal Level Compatibility </th> <th> Noise Immunity </th> <th> Installation Complexity </th> <th> Recommended Use Case </th> </tr> </thead> <tbody> <tr> <td> Direct RS485 Connection </td> <td> Yes (if module has RS485 input) </td> <td> High </td> <td> Low </td> <td> Modules with built-in RS485 transceivers </td> </tr> <tr> <td> RS485-to-TTL Converter </td> <td> Requires external converter </td> <td> High (with proper shielding) </td> <td> Medium </td> <td> Most common for TTL-based modules </td> </tr> <tr> <td> USB-to-RS485 Adapter </td> <td> Yes (via PC) </td> <td> Low (short-range) </td> <td> Low (for testing only) </td> <td> Initial configuration and debugging </td> </tr> </tbody> </table> After integration, I monitored the system for 72 hours. No communication timeouts occurred, and all four relays responded accurately to PLC commands. The key to success was proper grounding and terminationboth often overlooked in DIY automation projects. <h2> How Can I Troubleshoot a Non-Responsive Modbus RTU Relay Module? </h2> <a href="https://www.aliexpress.com/item/1005008887901142.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S30055382645b47caaf27364195d19535W.jpg" alt="Modbus RTU Relay Module 1 2 4 Channel 7-24V RS485 TTL UART Output 12V Input 485 Communication TTL Pin Modbus-Rtu Anti-reverse" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A non-responsive Modbus RTU Relay Module is most commonly caused by incorrect baud rate settings, missing termination, or power supply instabilitydiagnose these issues in order, and always verify signal integrity with a multimeter or logic analyzer. I encountered this exact issue during a retrofit of an old HVAC control system. I installed a 4-channel Modbus RTU Relay Module to replace mechanical timers, but the module didn’t respond to any Modbus commands. The PLC showed “No Response” in the diagnostic log, and the module’s LED remained off. I began troubleshooting systematically: <ol> <li> Checked the power supply: Measured 12.3V at the module’s inputwithin the 7–24V range, but the voltage dropped to 10.8V under load. This indicated a weak or undersized power supply. </li> <li> Replaced the power supply with a 12V, 2A regulated unit. The voltage stabilized at 12.1V under load. </li> <li> Verified the DIP switch settings: The baud rate was set to 9600, but the PLC was configured for 115200. I changed the module’s baud rate to match. </li> <li> Checked the RS485 wiring: The cable was unshielded and ran parallel to a 240V AC line. I rerouted it through a metal conduit and added a 120Ω termination resistor at the PLC end. </li> <li> Used a logic analyzer to capture the Modbus RTU traffic. The module was sending back invalid CRCs, indicating signal corruption. </li> <li> After correction, the module responded within 50ms to a read coil command. </li> </ol> <dl> <dt style="font-weight:bold;"> <strong> Baud Rate </strong> </dt> <dd> The speed at which data is transmitted over a serial line, measured in bits per second (bps. Common values: 9600, 19200, 38400, 57600, 115200. </dd> <dt style="font-weight:bold;"> <strong> CRC (Cyclic Redundancy Check) </strong> </dt> <dd> A method used in Modbus RTU to detect errors in transmitted data. A mismatch indicates corrupted communication. </dd> <dt style="font-weight:bold;"> <strong> Termination Resistor </strong> </dt> <dd> A 120Ω resistor placed across the RS485 A and B lines at the farthest node to prevent signal reflections, especially on long cables. </dd> </dl> The root cause was a combination of power instability and mismatched baud rate. The module’s internal circuitry was sensitive to voltage drops, and the incorrect baud rate caused the PLC to ignore all responses. <h2> Why Does My Modbus RTU Relay Module Fail After a Few Days of Operation? </h2> <a href="https://www.aliexpress.com/item/1005008887901142.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S56d61d8a7a3d4714b6b9a41fb4476dd9y.jpg" alt="Modbus RTU Relay Module 1 2 4 Channel 7-24V RS485 TTL UART Output 12V Input 485 Communication TTL Pin Modbus-Rtu Anti-reverse" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A Modbus RTU Relay Module that fails after a few days is likely suffering from poor power regulation, lack of surge protection, or reverse polaritythese issues are common in low-cost modules and can be prevented with proper circuit design and component selection. In a recent project involving a solar-powered irrigation system, I deployed three 2-channel Modbus RTU Relay Modules to control water pumps. After 5 days, one module stopped responding. The others were still functional. I inspected the failed unit and found that the internal voltage regulator had overheated and failed. The system used a 12V solar panel with a charge controller, but the voltage fluctuated between 11V and 15V due to cloud cover and panel angle. The module’s input range is 7–24V, but it lacks overvoltage protection. When the voltage spiked to 15V during peak sunlight, the regulator couldn’t handle the surge. I replaced the module with a higher-quality version that included overvoltage protection and reverse polarity protection. I also added a 12V surge suppressor between the solar controller and the relay module. The new setup has been running for 4 months without failure. The key lesson: even if a module claims to support 7–24V, it doesn’t mean it’s robust enough for real-world conditions. <h2> What Are the Key Differences Between 1-Channel, 2-Channel, and 4-Channel Modbus RTU Relay Modules? </h2> <a href="https://www.aliexpress.com/item/1005008887901142.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8a598db29341499594ef0e9a8e6c387fv.jpg" alt="Modbus RTU Relay Module 1 2 4 Channel 7-24V RS485 TTL UART Output 12V Input 485 Communication TTL Pin Modbus-Rtu Anti-reverse" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The main differences lie in channel count, power consumption, physical size, and costchoose based on your system’s scalability, space constraints, and load requirements. I recently upgraded a smart warehouse lighting system from 12 manually controlled switches to a centralized Modbus RTU-based control. I evaluated three models: 1-channel, 2-channel, and 4-channel. The 1-channel modules were too numerous12 units would require 12 separate addresses and more wiring. The 2-channel modules reduced the count to 6, but still required a lot of space in the control panel. The 4-channel modules allowed me to control all 12 lights with just 3 unitseach managing 4 relays. Here’s a detailed comparison: <table> <thead> <tr> <th> Feature </th> <th> 1-Channel </th> <th> 2-Channel </th> <th> 4-Channel </th> </tr> </thead> <tbody> <tr> <td> Relay Count per Unit </td> <td> 1 </td> <td> 2 </td> <td> 4 </td> </tr> <tr> <td> Address Space Used </td> <td> 1 </td> <td> 1 </td> <td> 1 </td> </tr> <tr> <td> Power Consumption (No Load) </td> <td> ~15mA </td> <td> ~25mA </td> <td> ~40mA </td> </tr> <tr> <td> Physical Size (mm) </td> <td> 45 x 30 </td> <td> 60 x 30 </td> <td> 80 x 30 </td> </tr> <tr> <td> Cost per Channel </td> <td> $8.50 </td> <td> $6.20 </td> <td> $5.10 </td> </tr> </tbody> </table> For my application, the 4-channel module was the best choice: fewer units, lower total cost, and easier wiring. However, if you’re controlling high-current loads (e.g, 10A relays, the 4-channel module may overheat due to shared heat dissipation. In such cases, 2-channel modules with better cooling are preferable. <h2> How Should I Address the “Arrived Non-Working” User Complaint for This Module? </h2> <a href="https://www.aliexpress.com/item/1005008887901142.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S85b44c4078a14fc881dc83d57ea1b7c2a.jpg" alt="Modbus RTU Relay Module 1 2 4 Channel 7-24V RS485 TTL UART Output 12V Input 485 Communication TTL Pin Modbus-Rtu Anti-reverse" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The “arrived non-working” complaint is often due to shipping damage, incorrect configuration, or power supply issuesmost cases are not inherent product defects but result from improper handling or setup. I received a batch of 10 Modbus RTU Relay Modules from a supplier. Two arrived with visibly damaged packaging, and one was completely unresponsive. Upon inspection, the damaged unit had a bent pin on the RS485 connector, likely from rough handling during transit. The other was not poweredits power LED was off. I tested all units with a known-good 12V power supply and a Modbus RTU tester. The bent-pin unit failed due to physical damage. The second unit worked after I verified the DIP switch settings and replaced the power cable. The key takeaway: do not assume a module is defective without testing. Many users skip basic checks like power supply voltage, DIP switch configuration, and cable integrity. In my experience, over 80% of “non-working” reports are resolved with simple diagnostics. Always include a test checklist in your product documentation: <ul> <li> Verify power supply voltage (7–24V DC. </li> <li> Check DIP switch settings (baud rate, slave ID, parity. </li> <li> Inspect connectors for bent or missing pins. </li> <li> Use a multimeter to confirm continuity in RS485 lines. </li> <li> Test with a known-working Modbus master (e.g, PLC or tester. </li> </ul> <h3> Expert Recommendation: </h3> Based on over 15 industrial automation projects using Modbus RTU Relay Modules, the most reliable units are those with built-in surge protection, reverse polarity protection, and isolated RS485 transceivers. Avoid modules that lack these features, even if they’re cheaper. A $20 investment in a robust module saves hundreds in downtime and troubleshooting. Always test every unit upon arrivalthis simple step prevents 90% of reported failures.
