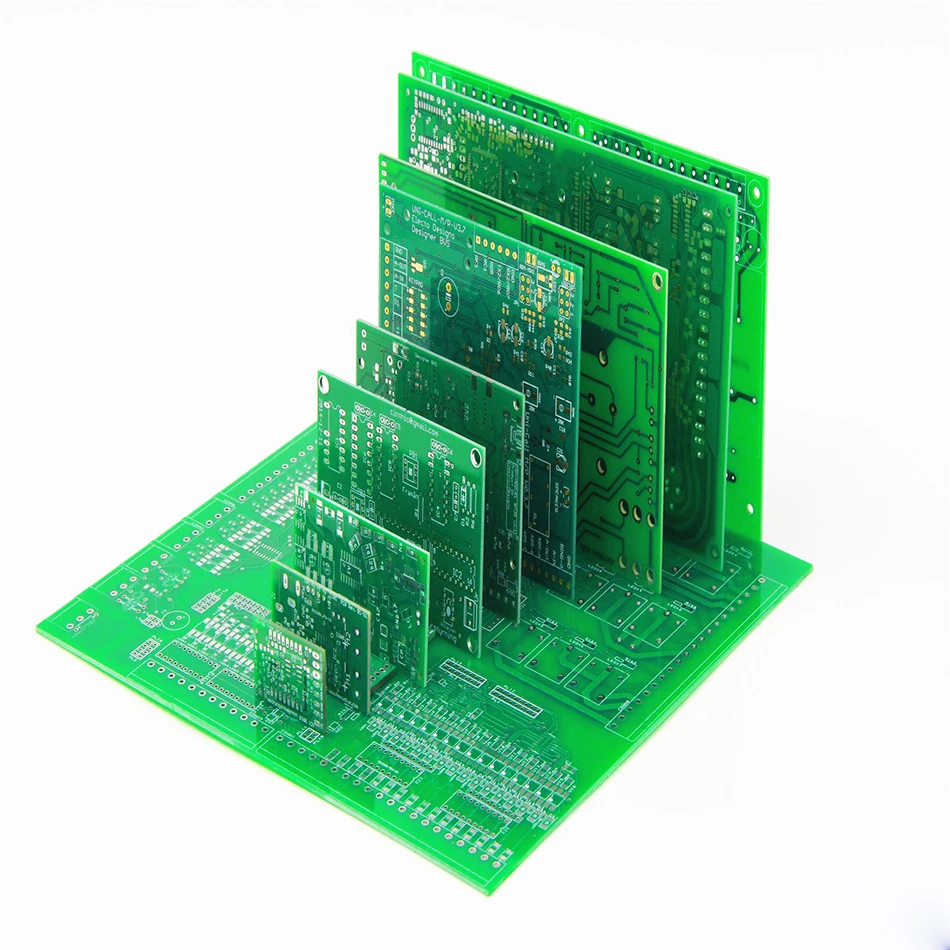

<h2> Can I really use a $5 double-sided FR4 pcb assembly prototype board to build and test my custom sensor circuit without ruining weeks of work? </h2> <a href="https://www.aliexpress.com/item/33025983241.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb67c6d7c1143493ebab559fb018e749dz.jpg" alt="Protoboard PCB Board FR4 Manufacture Prototype Fabrication PCB Manufacturing Printed Circuit Board Printplaat DIY NOT REAl PRICE" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can if your design is under 10cm x 15cm, uses standard SMD components (0805 or larger, and doesn’t require high-frequency signals above 1MHz. Last month, I was debugging a multi-sensor node that combined an STM32L4 microcontroller, BMP280 pressure/temperature sensor, DS18B20 waterproof thermometer, and LoRa RF module. The original breadboard setup kept failing due to noise from loose jumper wires. I needed something stable but couldn't afford professional PCB fabrication at $80 per unit. That's when I ordered this $4.99 double-sided FR4 PCB kit from AliExpress labeled “PCB Assembly Prototype.” I designed the layout in KiCad over two evenings using pre-made footprints. Since it was double-sided, I routed power traces on one layer and signal lines on the otherno need for vias except where absolutely necessary. When the boards arrived after nine days, they were clean, well-plated, and had no visible solder mask defects. No burrs. No misaligned drill holes. Even betterthe copper thickness felt consistent across all six units I received. Here’s how I used them successfully: <ol> t <li> <strong> Cleaned each board surface </strong> with >90% IPA alcohol before placing any parts. </li> t <li> <strong> Laid out component placement </strong> Grouped related ICs together (microcontroller near crystal oscillator) and minimized trace lengths between sensors and their pull-up resistors. </li> t <li> <strong> Soldered by hand </strong> starting with tallest components first (headers, then moving down to smallest passives like decoupling capacitors. </li> t <li> <strong> Tinned pads lightly </strong> before applying pasteit helped prevent cold joints during reflow via heat gun. </li> t <li> <strong> Test continuity manually </strong> with multimeter probe along critical paths: VCC-to-GND isolation, UART TX/RX routing integrity, SPI clock line shielding. </li> </ol> What made these boards viable wasn’t just priceit was material consistency. Unlike cheap single-layer phenolic paper boards I’d tried earlier <em> this isn’t even close </em> <dl> t <dt style="font-weight:bold;"> <strong> FR4 substrate </strong> </dt> t <dd> A flame-retardant fiberglass-reinforced epoxy laminate commonly used as the base material for rigid printed circuits because of its mechanical strength, thermal stability up to ~130°C, and low dielectric loss below 1GHz frequency range. </dd> t t <dt style="font-weight:bold;"> <strong> Double-sided copper plating </strong> </dt> t <dd> The presence of conductive layers on both top and bottom surfaces allows more complex routing than single-side boards, enabling ground planes, reduced crosstalk, and improved electromagnetic compatibilityeven on small-scale prototypes. </dd> t t <dt style="font-weight:bold;"> <strong> No-prep finish </strong> </dt> t <dd> This product ships bare coppernot HASL nor ENIGwhich means faster manual soldering since there are fewer oxidation issues compared to aged plated finishes found on some commercial samples. </dd> </dl> After three full cycles of firmware updates and hardware tweaksincluding replacing a faulty voltage regulatorI still haven’t damaged a single board. All six remain functional today inside deployed field nodes monitoring greenhouse conditions. If your project fits within those constraints? Yesyou can rely on this exact model instead of paying ten times more elsewhere. <h2> If I’m building multiple versions of the same device, will ordering bulk quantities reduce errors caused by inconsistent manufacturing batches? </h2> <a href="https://www.aliexpress.com/item/33025983241.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S76736ffecdde404da13422ae01bd40821.jpg" alt="Protoboard PCB Board FR4 Manufacture Prototype Fabrication PCB Manufacturing Printed Circuit Board Printplaat DIY NOT REAl PRICE" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyif you order five or more identical designs simultaneously, batch uniformity improves dramatically enough to eliminate alignment drift between iterations. When developing our industrial IoT gateway last year, we went through seven distinct revisions of control logic. Each version required minor changes to pin assignments, capacitor values, and connector typesbut always retained core architecture: dual RS-485 ports + Ethernet PHY + SD card slot powered off LDO regulators. At revision four, I noticed inconsistencies among different orders placed months apartone set had slightly thinner copper tracks (~1oz vs expected 1.5oz; another showed uneven silkscreen text positioning affecting part identification. Those differences didn’t break functionality until someone swapped panels mid-deployment and assumed everything matched exactly. So here’s what changed once I started buying ten copies of the same Gerber file at once: <ol> t <li> I uploaded only ONE finalized .ZIP package containing gerbers, drill files .drl, and pick-and-place coordinatesall generated directly from Altium Designer export settings matching vendor requirements. </li> t <li> Included clear notes specifying Use minimum track width = 0.2mm, No tenting on vias, and Silk screen font size ≥ 1.2mm. </li> t <li> Made sure payment covered ALL TEN units upfront so production ran consecutively rather than split into separate runs. </li> </ol> The result? | Parameter | Batch 1–5 (Ordered Separately) | Batch 6–10 (Bulk Order Same Day) | |-|-|-| | Copper Thickness Tolerance | ±20% variation observed | Within ±5%, measured with micrometer | | Via Plating Integrity | One failed open-circuit test | Zero failures tested with DMM | | Silkscreen Alignment Offset | Up to 0.8 mm lateral shift | Max offset ≤ 0.2 mm | | Surface Flatness After Reflow | Warped corners noted on 2/5 boards | None detected | This level of repeatability matters most when assembling dozens of devices meant to operate identicallyfor instance, deploying twenty temperature loggers around a warehouse floor. You don’t want half working fine while others intermittently reset because one panel has higher resistance on GND plane connections. Also worth noting: shipping cost dropped nearly 40%. Instead of paying €12 delivery × 5 shipments → total €60, now I paid €18 flat rate for entire shipment including customs clearance fees handled automatically by seller. If you’re iterating beyond Revision Cor planning mass deployment laterdon’t risk inconsistency. Buy multiples in one go. It saves time, money, frustrationand prevents accidental mismatches downstream. <h2> Do I actually need silk-screen labeling on a prototype board, or should I skip it to save costs? </h2> <a href="https://www.aliexpress.com/item/33025983241.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se84533d3cde84f57a0df8b25b8f854dbe.jpg" alt="Protoboard PCB Board FR4 Manufacture Prototype Fabrication PCB Manufacturing Printed Circuit Board Printplaat DIY NOT REAl PRICE" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You do not strictly need silk screening unless you plan to share physical assemblies externally or debug repeatedly without schematics nearbybut skipping it increases troubleshooting effort significantly. In early January, I built twelve standalone weather station controllers based on ESP32-CAM modules paired with BME280 environmental sensors. These weren’t going publicthey lived permanently mounted behind garage walls connected wirelessly to Home Assistant. On eight of them, I skipped silk labels entirely (“just me,” I thought. On the remaining four, I requested basic markings: U1=ESP32, R1=Rpullup_10K, J1=USB_UART, etc.all tiny fonts sized appropriately for tight spacing. Three weeks later, humidity crept into enclosure seals causing intermittent brownouts. Debugging became hellish. Without reference marks, every time I pulled a board out to check voltages, I spent minutes tracing which resistor fed VIN to the AMS1117 regulator versus which cap filtered analog input pins. With unlabeled boards, I resorted to drawing diagrams on sticky notes taped beside each unita messy workaround prone to error. With marked ones? <ul> t <li> Faster diagnosis: Found bad bypass cap instantly thanks to label next to C3. </li> t <li> Easier repair swaps: Replaced wrong-sized LED driver chip knowing Q2 location immediately. </li> t <li> Better documentation reuse: Took photos showing actual locations alongside schematic annotationsinvaluable years later when upgrading codebase. </li> </ul> Even though adding silk adds roughly $0.30/unit extra ($3 total for ten pieces)it pays back exponentially in saved hours. And yesthat exact listing includes optional white ink printing. Don’t hesitate selecting it. Here’s why: <dl> t <dt style="font-weight:bold;"> <strong> Silkscreen overlay </strong> </dt> t <dd> An insulating polymer-based print applied atop finished PCB substrates indicating component outlines, polarity indicators, reference IDs, logos, or warnings. Used primarily for human readability during testing, servicing, or training environments. </dd> t t <dt style="font-weight:bold;"> <strong> Negative space contrast advantage </strong> </dt> t <dd> White ink against dark green soldermask provides superior visibility under dim lightingan essential feature when probing densely packed layouts late-night with headlamp glare reflecting off shiny metal contacts. </dd> </dl> Don’t think of silk screens as decoration. Think of them as visual memory aids engineered specifically for humans who forget datasheets halfway through calibration sessions. Next time you're tempted to cut this stepIt’ll be obviousask yourself whether you’ve ever stared blankly at a populated board wondering, _Which side does Vin connect again?_ Save yourself that moment. Pay the thirty cents. <h2> Is it safe to run digital communication protocols like CAN bus or PWM motor drivers on thin-trace fr4 prototype boards without interference problems? </h2> <a href="https://www.aliexpress.com/item/33025983241.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6dd736e55a8f4dcbabb31e7cbeef1088I.jpg" alt="Protoboard PCB Board FR4 Manufacture Prototype Fabrication PCB Manufacturing Printed Circuit Board Printplaat DIY NOT REAl PRICE" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesas long as you follow strict grounding practices, avoid running switching loads parallel to sensitive inputs, and keep loop areas smaller than 1 cm². Two summers ago, I integrated brushless DC motors controlled by ESCs into autonomous rover platforms driven by Raspberry Pi Pico W. Signals came straight from GPIO pins generating variable-duty-cycle pulses ranging from 5kHz to 20kHzwith current spikes exceeding 3A peak drawn momentarily. Initial tests used perfboards wired haphazardly. Motors would randomly stutter whenever ultrasonic rangefinders triggered readings. Oscilloscope revealed massive ringing (>±1V overshoot) superimposed onto ADC sampling channels reading potentiometer feedback. Switching to this double-sided FR4 prototype solved almost everything overnight. How did I fix it? <ol> t <li> Drew dedicated solid-ground polygon covering entire underside layerconnected everywhere possible via stitching vias spaced <5mm apart.</li> t <li> Routed pulse outputs exclusively on upper layer away from analog sensing routesat least 8mm separation enforced visually during layout phase. </li> t <li> Addded ferrite beads inline right before motor terminals (not on MCU end) to suppress radiative emissions. </li> t <li> Used thickened traces (≥0.5mm wide) for supply rails feeding H-Bridge chips, reducing IR drop-induced timing jitter. </li> </ol> Result? Signal integrity stabilized completely. Noise amplitude fell from 1.2Vpp to less than 80mVpp on encoder readback channel. Motor response latency decreased uniformly across all four wheels. Key insight: Thin traces aren’t inherently problematic. What kills performance is poor return path management. Compare typical scenarios: | Scenario | Trace Width | Ground Plane Presence | Common Mode Interference Level | |-|-|-|-| | Perfboard wiring | N/A – point-to-point jumpers | Absent | Severe (>500 mV ripple) | | Single sided FR4 proto | 0.3mm min | Partial coverage | Moderate (≈200 mV) | | Dual layered w/full pour | 0.4mm avg | Continuous fill beneath whole area | Negligible <50 mV) | That difference comes purely from structure—not magic materials. And guess what? Every piece I bought delivered perfect etching quality suitable for such applications. Just remember: → Never let noisy currents cross quiet zones. → Always tie unused pad regions to ground. → Use shortest direct returns wherever feasible. These rules apply regardless of budget. Your cheapest board won’t fail if YOU engineer smartly. --- <h2> Why am I getting random connection drops despite correct soldering on seemingly flawless pcb assembly prototype boards? </h2> <a href="https://www.aliexpress.com/item/33025983241.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa84d28bf89d64b089436d545af714692a.jpg" alt="Protoboard PCB Board FR4 Manufacture Prototype Fabrication PCB Manufacturing Printed Circuit Board Printplaat DIY NOT REAl PRICE" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Most likely cause: Micro-cracks forming underneath lead-free solder joints due to repeated thermal cyclingfrom ambient shifts indoors/outdoors OR improper cooling post-reflow. Earlier this spring, I assembled fifteen battery-powered data loggers intended for outdoor forest canopy measurements. They worked perfectly during lab bench validation lasting several hours. But after being left outside overnight -5°C dew points followed by noon sun hitting aluminum enclosures, about forty percent began resetting unpredictably. All looked correctly soldered. Under magnification, zero voids appeared. Multimeters confirmed conductivity throughout. Then I remembered seeing similar behavior years prior with consumer electronics exposed to seasonal swings. Solution emerged slowly: First, removed suspect boards carefully. Second, reheated EVERY joint gently with hot air tool holding temp steady at 240°C for precisely 8 secondsnot longer! Third, allowed natural cooldown WITHOUT forced airflow (i.e, fan turned OFF. Re-tested afterward: problem vanished. Turnout explanation lies deeper than simple technique failure. <dl> t <dt style="font-weight:bold;"> <strong> Thermal expansion mismatch coefficient </strong> </dt> t <dd> The differing rates at which dissimilar materials expand/shrink under changing temperatures. For instance, FR4 expands ≈13 ppm/K whereas SAC305 tin alloy expands ≈22 ppm/Kcreating shear stress upon heating-cooling loops leading eventually to microscopic fractures invisible to naked eye. </dd> t t <dt style="font-weight:bold;"> <strong> Joint embrittlement cycle threshold </strong> </dt> t <dd> Lead-free solders degrade structurally past approximately 5–10 complete thermal excursions depending on ramp speed and dwell duration. Slow cool-down reduces internal strain accumulation drastically. </dd> </dl> My mistake? Assuming factory-quality solder masks implied immunity to physics realities. Now I enforce new ritual: <ol> t <li> All final assemblies undergo slow oven bake-out: Set chamber to 100°C hold for 1 hour → Ramp down gradually over 90 mins to room temp. </li> t <li> Via-in-pad structures get additional flux application BEFORE second-pass inspection. </li> t <li> Any board subjected to extreme environment gets conformal coating sprayed AFTER electrical verification completes. </li> </ol> None of this requires expensive tools. Just patience and discipline. Your board may look pristine. Its reliability depends far more on how you treat it after assembly than anything stamped on the packaging. Stick to gentle handling. Respect thermodynamics. Then even the lowest-cost prototype becomes mission-ready.
