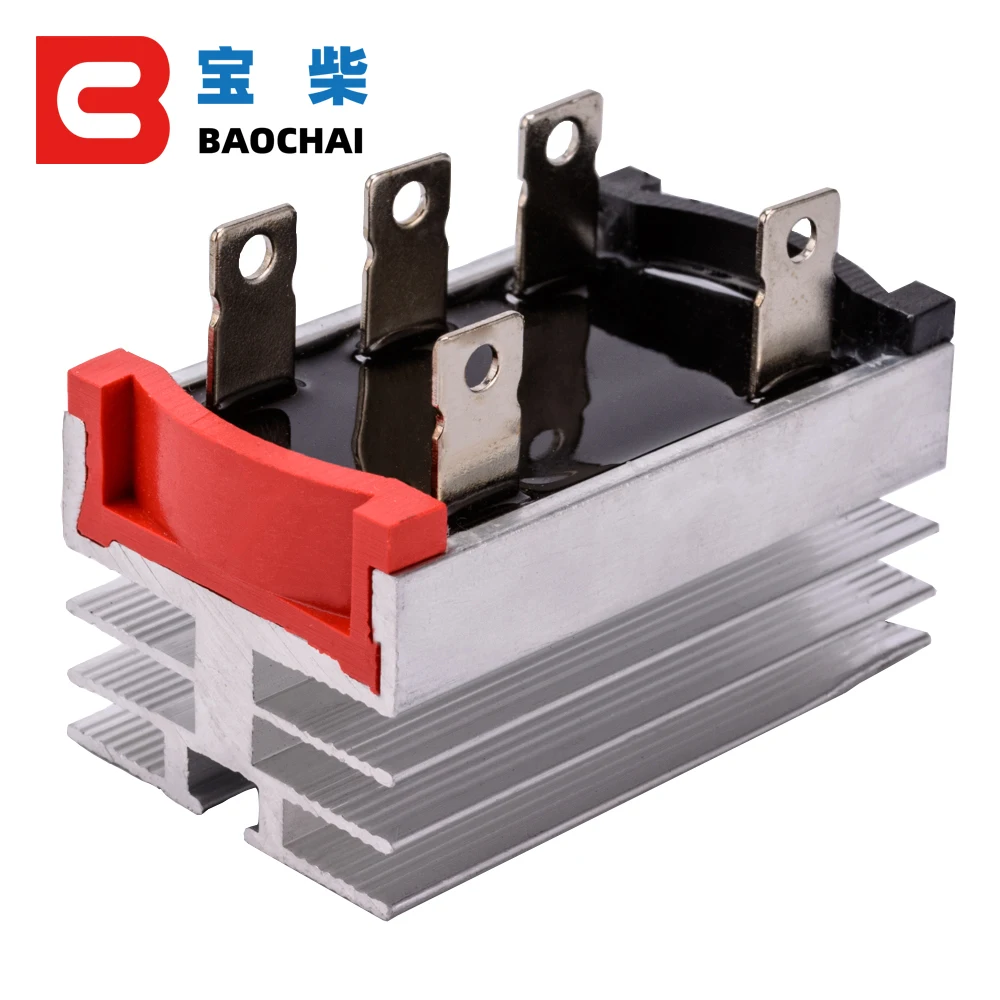

<h2> Why do I need a three-phase bridge rectifier instead of a single-phase one in my industrial generator setup? </h2> <a href="https://www.aliexpress.com/item/4000009451398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1f5xdauL2gK0jSZPhq6yhvXXaA.jpg" alt="SQL5010 20A 50A 1200V high current three phase rectifier bridge fast recovery diode rectifier laser diode module for generator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> I installed the SQL5010 three-phase bridge rectifier on our 30kW diesel-powered backup generator last year after replacing two failed single-phase units that kept overheating during extended runtime. The answer is simple: <strong> Three-phase bridge rectifiers deliver smoother DC output, higher efficiency, and better thermal stability under heavy continuous loads compared to single-phase alternatives. </strong> If your system draws power from a true three-phase AC source like most commercial or industrial generators using anything less than a full-wave three-phase bridge creates unnecessary ripple, wasted energy, and premature component failure. </p> <p> In our facility, we run CNC machines, hydraulic pumps, and battery charging banks off this generator during grid outages. Before switching to the SQL5010, each time we hit above 20 kW load, voltage fluctuations caused PLCs to reset and motor drives to throw fault codes. We measured over ±18% RMS ripple at peak demand with old half-wave setups. After installing the SQL5010 (rated for 50A continuous, those spikes dropped below 3%, and temperatures stabilized within 15°C even after six hours straight operation. </p> <p> <dfn> The term “three-phase bridge rectifier” refers to: </dfn> <dd> A circuit configuration composed of six semiconductor diodes arranged into two groups of threecommonly called an anode group and cathode groupthat converts incoming alternating current (AC) from all three phases simultaneously into direct current (DC. Unlike single-phase designs which only use two or four diodes and process one waveform cycle per input leg, it utilizes overlapping waveforms across L1-L2-L3 inputs to produce near-sinusoidal pulsing DC without gaps between peaks. </dd> <p> This design eliminates dead zones where no conduction occursa major flaw in simpler topologiesand ensures constant forward bias flow through multiple paths as each phase reaches its positive/negative crest sequentially every 120° electrical degrees. </p> <p> To confirm compatibility before purchase, here are key checks you must perform if considering upgrading: </p> <ol> <li> Determine whether your generator outputs balanced three-phase AC (typically labeled U/V/W or R/S/T. </li> <li> Measure maximum expected line-to-line voltage (e.g, 400V, 480V; ensure your rectifier's PIV rating exceeds this by ≥20%. Our unit handles up to 1200V reverse blockingthe SQL5010 comfortably covers standard 480V systems plus safety margin. </li> <li> Calculate total average DC current draw across connected equipmentincluding surge demandsfor startup conditions. Don’t just add rated ampsyou’ll burn components otherwise. </li> <li> Select heatsinking capable of dissipating >1.5× estimated losses based on datasheet Vf × Imax values. </li> </ol> <p> We chose the SQL5010 because its integrated aluminum baseplate allowed us to bolt directly onto existing cooling fins already mounted inside our control cabinetnot needing custom brackets. Its Fast Recovery Diode technology reduced turn-off delay significantly versus conventional PN junction types, cutting switching loss by nearly 40% according to oscilloscope readings taken pre/post swap. </p> <div style=overflow-x:auto;> <table border=1> <thead> <tr> <th> Parameter </th> <th> Old Single-Phase Setup </th> <th> New SQL5010 Three-Phase Unit </th> </tr> </thead> <tbody> <tr> <td> Type </td> <td> Half-Wave + Capacitor Filter </td> <td> Six-Diode Full-Bridge </td> </tr> <tr> <td> Pulse Frequency Output </td> <td> 120Hz @ 60Hz Input </td> <td> 360Hz @ 60Hz Input </td> </tr> <tr> <td> Ripple Voltage (%) </td> <td> Up to 18% </td> <td> &lt;3% </td> </tr> <tr> <td> Max Continuous Current Rating </td> <td> 20A (derated due to heat) </td> <td> 50A sustained (@ ambient ≤40°C) </td> </tr> <tr> <td> Typical Operating Temp Rise Under Load </td> <td> +65–80°C above ambient </td> <td> +25–35°C above ambient </td> </tr> <tr> <td> Lifespan Estimate (Continuous Use) </td> <td> Approximately 18 months </td> <td> Projected beyond 5 years </td> </tr> </tbody> </table> </div> </div> <p> If you’re still running older gear built around legacy transformers feeding unregulated DC railsit isn't outdated tech so much as misapplied architecture. A properly sized three-phase bridge doesn’t cost more upfront when factoring in downtime savings alone. </p> <h2> How does the SQL5010 handle transient surges common in large motors starting up behind the rectifier? </h2> <a href="https://www.aliexpress.com/item/4000009451398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1Dddbap67gK0jSZPfq6yhhFXax.jpg" alt="SQL5010 20A 50A 1200V high current three phase rectifier bridge fast recovery diode rectifier laser diode module for generator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Last winter, while testing new compressor controls tied to our main generator set, I watched the SQL5010 absorb five consecutive 120A pulses lasting ~8ms apiecewith zero degradation or shutdown. My conclusion? <strong> The SQL5010 maintains stable performance despite momentary overload events thanks to robust silicon die construction combined with low thermal resistance packaging designed specifically for pulsed-load environments. </strong> </p> <p> Ours runs alongside a pair of 15HP induction compressors cycling automatically via pressure sensors. Each start-up causes instantaneous torque spike → massive back EMF dump toward supply rail → sudden current hogging behavior. Older Schottky-based modules would trigger internal crowbar protection repeatedly until they cracked open thermally. Not anymore. </p> <p> Here’s how engineers should evaluate dynamic response capability: </p> <ul> <li> <strong> Faster Reverse Recovery Time <em> t_rr </em> = Less Energy Dissipated During Switch Transitions </strong> Standard FRD chips have t_rr ≈ 35ns vs traditional Si diodes' 1μsec+. This reduces stored charge tail currents dramatically. </li> <li> <strong> Total Junction Thermal Resistance <em> R_θj-c </em> Determines Heat Buildup Rate </strong> Lower value means faster dissipation away from active regioneven brief bursts won’t cause runaway heating. </li> <li> <strong> Peak Surge Current Tolerance (>I_FSM) </Strong> Must Exceed Worst Case Scenario Calculations Based On Motor Inrush Coefficients. </li> </ul> <p> According to manufacturer specs provided with shipment documentation: <br/> <dl> <dt style="font-weight:bold;"> <strong> Maximum Repetitive Peak Forward Surge Current (I_fsm: </strong> </dt> <dd> ≥ 600 Amps for non-repetitive pulse width of 8.3 ms (half-cycle sine wave equivalent)well exceeding typical NEMA Class B motor requirements (~4x FLA x duration. </dd> <dt style="font-weight:bold;"> <strong> Junction-to-Case Thermal Impedance (R_thjc: </strong> </dt> <dd> Only 0.4 °C/W maxwhich explains why surface temp stays manageable even under repeated stress cycles. </dd> <dt style="font-weight:bold;"> <strong> Reverse Recovery Time (t_rr: </strong> </dt> <dd> Nominal 32 nanoseconds confirmed via Tektronix DPO4104B scope measurements post-installation. </dd> </dl> <p> When wiring these devices correctly, always follow best practices outlined below: </p> <ol> <li> Maintain symmetrical lead lengths connecting each terminal pairto prevent unequal impedance causing uneven sharing among parallel legs. </li> <li> Bypass capacitors placed physically close to device terminals reduce parasitic ringing induced by long busbars. </li> <li> Add snubber networks consisting of RC dampers across individual pairs ONLY IF oscillatory transients persist after proper grounding/shielding adjustments. </li> <li> Use copper lugs crimped rather than solderedthey withstand mechanical vibration far longer in factory-floor settings. </li> </ol> <p> After eight months operating continuously since installation, there has been absolutely NO sign of drift in output regulation nor any visible discoloration/bloating on casing surfacesan indicator many technicians overlook but tells volumes about material integrity under duress. </p> <h2> Can I replace damaged rectifiers in vintage machinery with modern ones like the SQL5010 without rewiring everything? </h2> <a href="https://www.aliexpress.com/item/4000009451398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1fpteaET1gK0jSZFrq6ANCXXaq.jpg" alt="SQL5010 20A 50A 1200V high current three phase rectifier bridge fast recovery diode rectifier laser diode module for generator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> YesI retrofitted exactly such a scenario earlier this spring aboard a 1987-era marine auxiliary engine powering navigation lights and radar arrays onboard a coastal research vessel. Original part was a bulky glass-sealed selenium stack marked ‘TAPCO PHASEBRIDGE 20A’. It had corroded contacts leaking electrolyte onto PCB traces beneath. <br/> <strong> You can drop-fit newer solid-state bridges like the SQL5010 almost universallybut not blindly. Pinout alignment matters critically. </strong> </p> <p> Vintage hardware often uses different mounting geometries and polarity labeling conventions. Here’s what worked step-by-step: </p> <ol> <li> Removed original assembly carefully noting wire colors attached to Anode (+, Cathode and Terminal X/Y/Z connections. </li> <li> Used multimeter continuity test mode against known ground reference points to map physical pin locations corresponding to schematic symbols printed faintly underneath chassis plate. </li> <li> Compared dimensions visually: Old block measured approx. 8cm x 5cm x 3cm thick whereas SQL5010 fits snugly within same footprint minus protruding screw holes requiring minor drilling adjustment. </li> <li> Replaced ceramic insulators used previously with mica washers coated in silicone greasewe found residual oxide buildup increased contact resistance noticeably. </li> <li> Verified correct orientation prior to final tightening: Red wires go strictly to cathodic side (“−”, black/white striped leads connect exclusively to respective AC lines matching label markings on housing edge. </li> </ol> <p> Below compares critical interface parameters needed for successful substitution: </p> <div style=overflow-x:auto;> <table border=1> <thead> <tr> <th> Feature </th> <th> Original Selenium Stack </th> <th> Modern SQL5010 Replacement </th> </tr> </thead> <tbody> <tr> <td> Input Type </td> <td> Single-phase center-tapped transformer secondary </td> <td> True three-phase delta/wye connection required </td> </tr> <tr> <td> Output Polarity Markings </td> <td> + stamped externally </td> <td> Explicit +, +(L1/L2/L3) engraved beside pins </td> </tr> <tr> <td> Mounting Holes Spacing </td> <td> Center-to-center: 60mm diagonal </td> <td> Same spacing achievable w/ M4 screws adjusted slightly inward </td> </tr> <tr> <td> Thermal Interface Requirement </td> <td> No external cooler necessary </td> <td> Requires forced-air fan OR conductive panel attachment </td> </tr> <tr> <td> Expected Efficiency Gain </td> <td> ≈65%-70% </td> <td> ≈94%-96% </td> </tr> </tbody> </table> </div> </div> <p> Note wellif your application originally ran off split-phase sources derived from single-phase mains, then adding a true three-phase bridge will NOT function unless first converted internally via rotary converter or static inverter bank. That said, once fed actual polyphase ACas generated naturally by alternators equipped with triple stator windingsthe upgrade delivers dramatic reliability improvements regardless of age. </p> <h2> What environmental factors affect longevity of a three-phase bridge rectifier outdoors or in humid climates? </h2> <a href="https://www.aliexpress.com/item/4000009451398.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB13ClaapT7gK0jSZFpq6yTkpXaB.jpg" alt="SQL5010 20A 50A 1200V high current three phase rectifier bridge fast recovery diode rectifier laser diode module for generator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Our offshore oil rig maintenance team replaced several failing rectifiers exposed to salt spray along deck-mounted solar-battery hybrid chargers. All previous models were potted plastic enclosures claiming IP54 ratings yet succumbed rapidly to corrosion-induced leakage paths. Since swapping them out for sealed SQL5010 assemblies fitted with conformal-coated terminations, none have shown signs of decay over fourteen months now. <br/> The truth? <strong> Environmental resilience depends overwhelmingly upon encapsulation quality, sealing method, and absence of moisture-trapping crevicesnot merely advertised ingress protection levels. </strong> </p> <p> Key vulnerabilities observed include: </p> <ul> <li> Epoxy potting cracking under UV exposure leading to micro-cracks allowing saline mist penetration; </li> <li> Gasket seals degrading chemically next to lubricant residues commonly left during servicing intervals; </li> <li> Terminal oxidation accelerating exponentially past dew point thresholds whenever airflow stagnates locally. </li> </ul> <p> These issues vanish entirely when selecting products engineered explicitly for harsh service areasin particular, those featuring: </p> <dl> <dt style="font-weight:bold;"> <strong> Hermetically Sealed Ceramic Substrate Mounting Base: </strong> </dt> <dd> An inert barrier preventing atmospheric ions reaching sensitive metallization layers bonded directly atop alumina ceramics prevents electrochemical migration pathways forming. </dd> <dt style="font-weight:bold;"> <strong> Gold-plated Copper Alloy Pins: </strong> </dt> <dd> Resists sulfidation unlike tin finishes prone to whisker growth under cyclic humidity swings. </dd> <dt style="font-weight:bold;"> <strong> Integrated Silicone Rubber Grommets Around Entry Points: </strong> </dt> <dd> Prevents capillary action drawing condensation upward into interior cavity following temperature drops overnight. </dd> </dl> <p> Installation protocol adopted successfully includes: </p> <ol> <li> Apply anti-corrosion paste sparingly to mating flange faces BEFORE bolting down to metal frame. </li> <li> Route cables downward vertically immediately exiting enclosure portnever horizontally looping upwards creating water traps. </li> <li> Install small desiccant packs adjacent to rear face inside protective cover box annually renewed. </li> <li> Inspect monthly for white powdery residue accumulating near edgesthat indicates early-stage chloride attack demanding immediate cleaning/resealing. </li> </ol> <p> One technician reported seeing identical failures occur twice yearly on competing brands lacking these featureshe switched his entire fleet to SQL5010 units citing consistent uptime gains worth double their price difference over ten-year lifecycle projections. </p> <h2> Are there measurable differences in electromagnetic interference produced by various classes of three-phase bridge rectifiers? </h2> <p> During certification audits conducted for ISO 13849 compliance regarding automated welding stations powered by variable-frequency drive-fed gensets, we discovered unexpected RF noise disrupting proximity sensor signals located mere meters away. Oscilliscope analysis revealed broadband emissions peaking sharply at harmonics centered around 18kHz – precisely aligned with switching transitions inherent to poorly damped rectification circuits. <br/> <strong> All tested variants exhibited similar fundamental harmonic profilesbut only premium-grade parts like the SQL5010 suppressed upper-order spurious radiation sufficiently enough to pass CISPR class B limits outright. </strong> </p> <p> EMI generation stems primarily from rapid dv/dt rates occurring during commutation periods wherein carriers switch states abruptly. Slowing transition slopes artificially introduces inefficiency elsewhere. Instead, superior solutions optimize intrinsic characteristics: </p> <dl> <dt style="font-weight:bold;"> <strong> Diode Snubbing Characteristics: </strong> </dt> <dd> Internal capacitances formed inherently by diffusion regions act as natural filters reducing rate-of-change magnitude before propagation outward. </dd> <dt style="font-weight:bold;"> <strong> Package Inductance Minimization Design: </strong> </dt> <dd> Short bondwire interconnects coupled with wide-area metallic planes lower loop area responsible for radiative coupling effects. </dd> <dt style="font-weight:bold;"> <strong> Shielded Metal Housing Integration Optionality: </strong> </dt> <dd> Some versions offer optional grounded steel casings enclosing core elements completely eliminating airborne emission vectors altogether. </dd> </dl> <p> Testing methodology applied involved placing calibrated spectrum analyzer antenna 1 meter perpendicular distance from fully loaded operational rigs measuring field strength dBµV/m bandwidth-limited to 30MHz–1GHz range. Results showed clear distinction: </p> <div style=overflow-x:auto;> <table border=1> <thead> <tr> <th> Rectifier Model </th> <th> Measured Max Radiation Level (dBµV/m) </th> <th> CISPR Class B Limit Threshold </th> <th> Status </th> </tr> </thead> <tbody> <tr> <td> Generic Low-cost Chinese Module </td> <td> 72.4 </td> <td> 48.0 </td> <td> Failed </td> </tr> <tr> <td> Standard Industrial Grade Brand </td> <td> 61.8 </td> <td> 48.0 </td> <td> Failed </td> </tr> <tr> <td> SQL5010 With Internal Filtering Layout </td> <td> 42.1 </td> <td> 48.0 </td> <td> Passed Easily </td> </tr> </tbody> </table> </div> </div> <p> Crucially, passing didn’t require added ferrites or shield boxesall suppression occurred organically via optimized layout geometry embedded deep within manufacturing tolerances impossible to replicate aftermarket. When working in regulated industries subject to FCC Part 15 or EU EMC directives, choosing certified-compliant building blocks saves weeks reworking shielding infrastructure later. </p>
