What is the best way to use Neopixel 144 for a large-scale LED display?
If you're planning to build a large-scale LED display using
Neopixel 144, the best approach is to use a modular setup with a
Neopixel array and a
Neopixel control board. This allows for scalability and easy maintenance.
- Neopixel 144
- A high-density LED strip with 144 individually addressable RGB LEDs per meter, ideal for large-scale lighting and display projects.
- Neopixel array
- A configuration of multiple Neopixel strips arranged in a grid or matrix to form a larger display.
- Neopixel control
- A microcontroller or driver board used to manage and control the color and animation of Neopixel LEDs.
To create a large-scale display:
- Plan the layout and dimensions of your display. Decide how many Neopixel 144 strips you need and how they will be connected.
- Choose a Neopixel control board, such as an Arduino or Raspberry Pi, that can handle the number of LEDs you're using.
- Connect the Neopixel 144 strips in a parallel or daisy-chain configuration, depending on your power and signal requirements.
- Use software like FastLED or Adafruit NeoPixel to program and animate your display.
Here’s a comparison of different Neopixel control options:
| Control Board | LED Support | Power Requirements | Programming Language |
| Arduino Uno | Up to 500 LEDs | 5V via USB or external power | C/C++ |
| Raspberry Pi | Thousands of LEDs | 5V via USB or external power | Python |
| ESP32 | Up to 1000 LEDs | 5V via USB or external power | C/C++ or MicroPython |
How can I power a Neopixel 144 strip without damaging the LEDs?
To power a Neopixel 144 strip safely, you must use an external 5V power supply and ensure proper grounding. Using the onboard USB power from a microcontroller is not sufficient for long strips or high-brightness displays.
- 5V Power Supply
- A dedicated power source that provides stable 5V to the Neopixel strip, preventing voltage drops and LED flickering.
- Grounding
- Connecting the ground of the power supply and the microcontroller to ensure a stable reference point for the signal and power.
Here’s how to power your Neopixel 144 strip:
- Connect the Neopixel 144 strip to a 5V power supply with sufficient current (at least 2A per meter).
- Connect the ground of the power supply to the ground of your microcontroller (e.g., Arduino or Raspberry Pi).
- Connect the data input of the Neopixel 144 strip to a digital pin on your microcontroller.
- Use a capacitor (1000µF or higher) across the power and ground lines to smooth out voltage fluctuations.

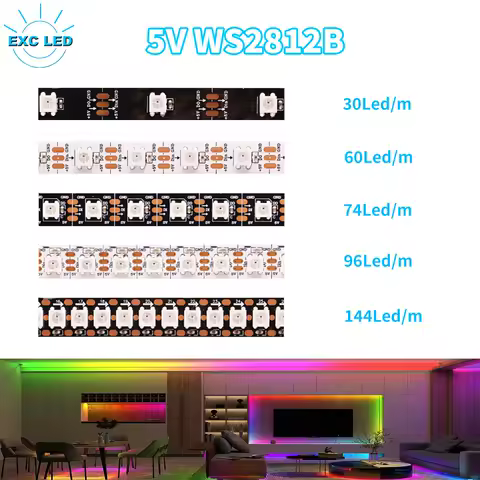

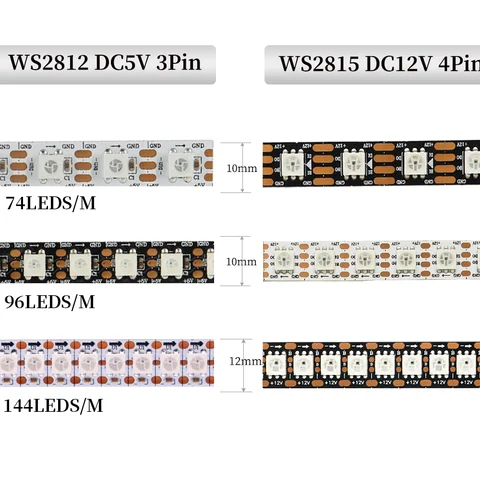

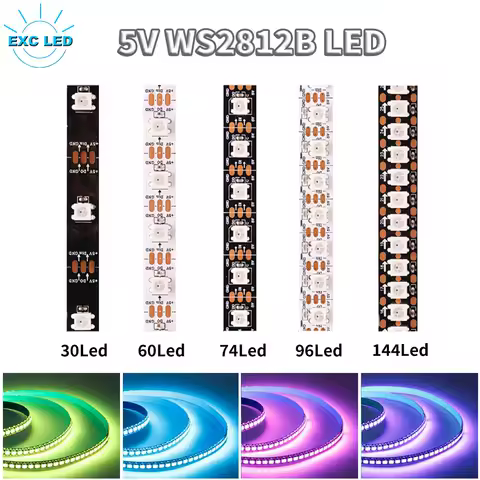

Here’s a comparison of power requirements for different Neopixel strip densities:
| Strip Type | LEDs per Meter | Current per LED (Max) | Total Current per Meter |
| Neopixel 30 | 30 | 60mA | 1.8A |
| Neopixel 60 | 60 | 60mA | 3.6A |
| Neopixel 144 | 144 | 60mA | 8.64A |
What are the common issues with Neopixel 144 and how can I fix them?
Common issues with Neopixel 144 include flickering, color inconsistency, and signal loss. These problems are often caused by poor power supply, incorrect wiring, or signal interference.
- Signal Loss
- A condition where the data signal from the microcontroller is not properly transmitted to the LEDs, causing them to behave unpredictably.
- Color Inconsistency
- A mismatch in the color output of LEDs, often due to power fluctuations or incorrect programming.
To fix these issues:
- Ensure you are using a stable 5V power supply with sufficient current for the length of your Neopixel 144 strip.
- Use a capacitor (1000µF or higher) across the power and ground lines to reduce voltage fluctuations.
- Check your wiring and ensure that the data line is connected to the correct pin on your microcontroller.
- Use a level shifter if you're connecting a 3.3V microcontroller (like an ESP32) to a 5V Neopixel 144 strip.
- Test your code with a short section of the strip before connecting the full length.
What do users say about Neopixel 144 and related products?
Users who have worked with Neopixel 144 often praise its brightness, color accuracy, and versatility. Many have used it in projects such as
Neopixel display panels,
Neopixel string lighting, and
Neopixel lamp designs. Some common user feedback includes: - High brightness and color accuracy: Users appreciate the vivid colors and brightness of Neopixel 144, especially when compared to lower-density strips like Neopixel 60. - Easy to control with software: Many users find it simple to program using libraries like FastLED or Adafruit NeoPixel. - Good for large-scale projects: The high LED density makes Neopixel 144 ideal for large
Neopixel panel or Neopixel array setups. - Power requirements can be a challenge: Some users mention the need for a strong power supply and proper grounding to avoid flickering or signal loss. In addition to Neopixel 144, users also recommend exploring other Neopixel products such as
Neopixel stick,
Neopixel 8x8, and
Neopixel 3mm for different project needs. The
Neopixel core and
Neopixel electronic components are also popular for custom builds.
