When working with threaded components, one of the most critical specifications to understand is thread pitch. Whether you're assembling a piece of furniture, repairing a car, or designing a mechanical system, knowing the correct thread pitch ensures compatibility and functionality. In this article, we’ll explore what thread pitch is, how to measure it, and how to choose the right tools for your project.

What Is Thread Pitch and Why Is It Important for My Project?

Answer first: Thread pitch is the distance between two adjacent threads on a screw or bolt, and it is essential for ensuring that threaded parts fit together correctly. To understand thread pitch, let’s consider a real-life scenario. Imagine you're a DIY enthusiast trying to replace a broken faucet in your kitchen. You purchase a new faucet, but when you try to install it, the threads don’t match. This mismatch can lead to leaks or even damage to the plumbing system.

Thread Pitch

The distance between two adjacent threads on a screw or bolt, measured in millimeters (metric) or threads per inch (imperial).

Thread Diameter

The width of the screw or bolt, which must also match for proper fit.

To determine the thread pitch, you can use a thread pitch gauge or a caliper. Here’s how to do it:

1. Place the thread pitch gauge against the threads of the screw or bolt.
2. Find the gauge that matches the spacing of the threads.
3. Record the pitch in millimeters or threads per inch (TPI).

For example, a common metric thread is M6 x 1.0, where 1.0 is the thread pitch. In imperial systems, a 1/4-20 screw has 20 threads per inch.

How Can I Measure Thread Pitch Without a Thread Pitch Gauge?

Answer first: You can measure thread pitch using a ruler or caliper by counting the number of threads over a known distance. Let’s say you're a student working on a mechanical engineering project and you don’t have access to a thread pitch gauge. You need to determine the pitch of a bolt you found in the lab. Here’s how you can do it manually:

1. Measure a 10 mm length of the bolt using a ruler or caliper.
2. Count the number of threads within that 10 mm segment.
3. Divide the number of threads by 10 to get the pitch in millimeters.

For example, if you count 8 threads in 10 mm, the pitch is 1.25 mm. This is a common pitch for M8 x 1.25 bolts.

Measurement Method	Tools Required	Accuracy
Thread Pitch Gauge	Thread pitch gauge	High
Ruler or Caliper	Ruler or digital caliper	Moderate

This method is especially useful when working with fine pitch threads, such as 1.25 pitch thread, which are commonly used in precision applications like electronics and medical devices.

What Tools Should I Use to Identify and Work with Different Thread Pitches?

Answer first: Use a thread pitch gauge, caliper, or a thread pitch tool to identify and work with different thread pitches. As a professional machinist, I often work with a variety of thread pitches, from 1 thread pitch to thread pitch 1.25. To ensure accuracy and efficiency, I rely on the following tools:

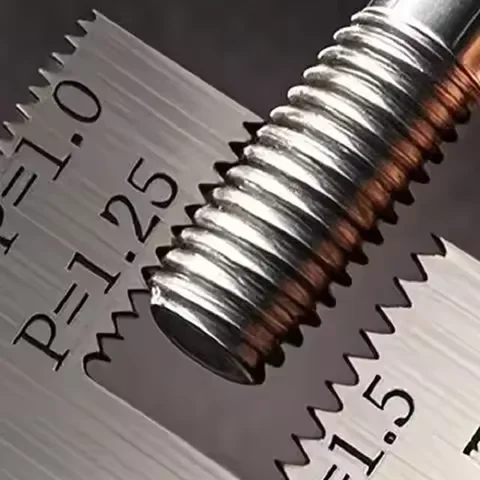

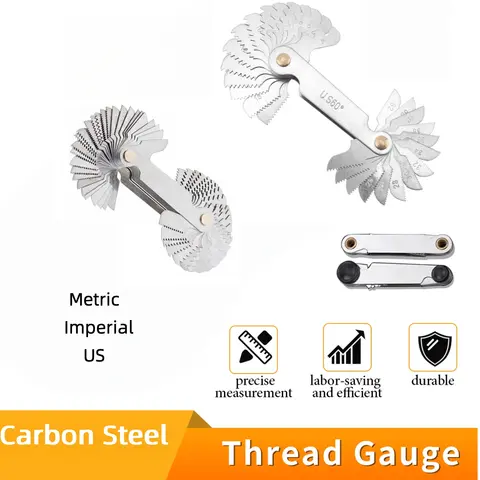

Thread Pitch Gauge

A set of thin, toothed blades that match different thread pitches for quick identification.

Thread Pitch Tool

A digital or mechanical tool that automatically measures and displays the thread pitch.

Here’s how I use these tools in my workflow:

1. Use a thread pitch gauge to quickly identify the pitch of a bolt or screw.
2. For more precise measurements, use a thread pitch tool or digital caliper.
3. Compare the results with standard thread pitch charts to confirm the specification.

Tool	Best For	Cost Range
Thread Pitch Gauge	Quick identification of common pitches	$10–$30
Thread Pitch Tool	Precision measurement in manufacturing	$50–$200
Digital Caliper	Manual pitch calculation	$20–$100

These tools are essential for anyone working with thread pitch to TPI conversions or dealing with thread pitch gauges in a workshop setting.
